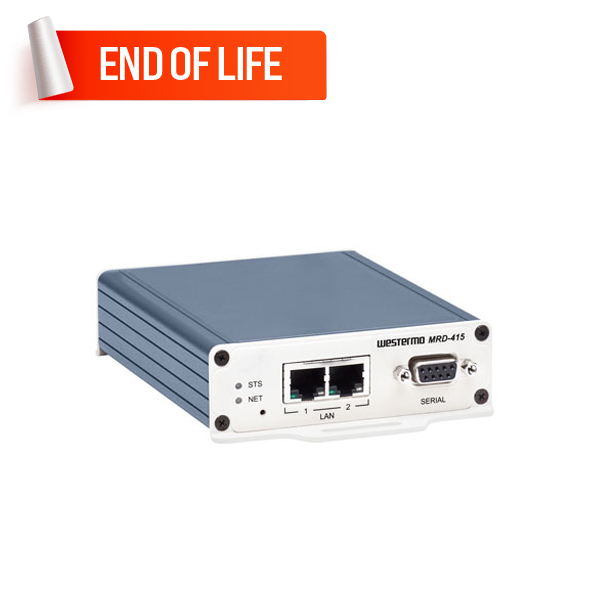

Westermo MRD-415 Industrial 4G Router

Westermo MRD-415 Industrial 4G Router
Westermo MRD-415 Industrial 4G Router
Westermo MRD-415 Industrial 4G Router
Westermo MRD-415 Industrial 4G Router
Westermo MRD-415 Industrial 4G Router
  • Access SCADA systems, HMI, and PLCs remotely
  • Cellular 2G / 3G / 4G connection
  • 2 x 10 Mbit/s or 100 Mbit/s Ethernet ports (RJ-45 connector)
  • 1 x RS-232 Serial Port (300 bit/s - 115.2 kbit/s, 9 pin D-sub female)
  • 1 x Mini SIM slot (3 volts SIM supported)
  • 12 to 48 VDC input power range (Wide Range 10 to 60 VDC)
  • IP40-rated Aluminium body material
  • Compact casing with DIN-rail mounting
  • -40 to +70 °C operating temperature range
0 reviews • Write a review
Datasheet User Manual
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (0 to 90% relative humidity non-condensing)
  • IP protection (IP40)
  • Shock (EN 61373)
  • Vibration (EN 61373)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Westermo Cybox AP 2-W WLAN Dual Radio Railway Access Point
Quickview
Westermo Cybox AP 2-W WLAN Dual Radio Railway Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo Cybox AP 3-W WLAN Dual Radio Railway Access Point
Quickview
Westermo Cybox AP 3-W WLAN Dual Radio Railway Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo Cybox GW 2-P Mobile Wireless Gateway
Quickview
Westermo Cybox GW 2-P Mobile Wireless Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox GW-P Mobile Wireless Gateway
Quickview
Westermo CyBox GW-P Mobile Wireless Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox LTE 2-W LTE and WLAN Router
Quickview
Westermo CyBox LTE 2-W LTE and WLAN Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox RT 2-A Automotive Wireless Router
Quickview
Westermo CyBox RT 2-A Automotive Wireless Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox RT 3-W Wi-Fi 5 Wave 2 Router
Quickview
Westermo CyBox RT 3-W Wi-Fi 5 Wave 2 Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo GW1042M-QFR-DCn0936 Dual SIM Industrial 4G LTE Router
Quickview
Westermo GW1042M-QFR-DCn0936 Dual SIM Industrial 4G LTE Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Routers , Cellular LTE Routers , Wireless & Cellular Routers , Cellular Gateways & Routers , Industrial Data Communications , Industrial Cellular Solutions , Wireless Routers , Routers , Westermo MRD-415

Remote access removes boundaries, eliminates the need for time-consuming site visits, and provides a network infrastructure suitable for today’s “always-on” society. A compact case design with wall mounting and the wide power input range between 10 to 60 VDC makes the unit well suited for industrial applications. Easy integration with other devices is achieved using the built-in two-port Ethernet switch and the RS-232 D-sub.

The stability of mobile connections can be affected by a variety of parameters, and in order to ensure constant connectivity, the MRD-series features the customer-praised connection manager. The MRD-415 offers network protection from malicious eavesdroppers via encrypted communication tunnels (VPN) and features a simple yet powerful packet inspection firewall.

For solar and battery-powered applications, energy efficiency is vital, and the MRD-415 features a low-power mode to only fully powered when needed. The built-in serial port offers a simple modern replacement solution with the benefit of not having to reprogram or change legacy components during an upgrade.


End of Life Product - Replacement Available

Please note that the MRD-415 has been phased out and replaced by the Merlin-3103-T2G-QFR-G-DCi0936.


Experience the convenient way to purchase the Westermo MRD-415 Industrial 4G Router in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

3g modem : Interface
SIM card slot Yes : 1 x Mini SIM slot (3 volts SIM supported)
Ethernet Ports Yes : 2 x 10 Mbit/s or 100 Mbit/s Ethernet ports (RJ-45 connector)
USB No
Digital Input and Output No
Serial port Yes : 1 x RS-232 Port (300 bit/s - 115.2 kbit/s, 9 pin D-sub female)
Alert Output No
Band Options 2G: 900/1800; 3G: B1 (2100), B3 (1800), B8 (900); 4G: B1 (2100), B3 (1800), B7 (2600), B8 (900), B20 (800), B28A (700)
Cellular Standards 2G, 3G , 4G
Cellular Antenna Connectors 3 x SMA female (Main, RxDiv, GPS)
WLAN Standards No
WLAN Antenna Connector No
GPS Antenna Connector Yes
3g modem : Radio specifications
Radio Connection type -
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G -
WiFi Radio Frequency -
3g modem : Software Specifications
Routing Redundancy No
VPN IPsec VPN, OpenVPN, PSK, X.509, SSL VPN client
Firewall ACL, NAT, Port Forwarding
Time Management No
Management Web interface (HTTP and HTTPS), Command Line Interface (CLI) via SSHv2 and TELNET, SNMPv1/v2c/v3, SMS Control, Flexible alarm/event handling system, Syslog (log files and remote syslog server), SNTP (NTP client), DHCP client and server, DDNS (Dynamic DNS update client)
3g modem : General
LED Indicators STS, NET, NET 1, NET 2
MTBF Ground Benign 40ºC: 1.367.000 hours, Ground Fixed 40ºC: 341.800.000 hours
Operating mode Router, LTE Modem
3g modem : Standards and protocols
Protocols SCEP, RADIUS, PPP Dial in/Dial out, MODBUS, DNP3 SMS, IEEE 802.1p
3g modem : Features and capabilities
Send and receive SMS Yes
3g modem : Security
Security and Encryption No
Authentication No
3g modem : Power Requirements
Power Connector -
Power Consumption (Output Adapter) -
Input Voltage 12 to 48 VDC (Wide Range 10 to 60 VDC)
POE Support No
Input Current 110 mA at 24 VDC
Reverse Polarity Protection Supported
3g modem : Buttons
Power button No
Reset Yes
3g modem : Physical Characteristics
Installation DIN-rail mounting
Dimensions 103 x 32 x 156 mm (4.06 x 1.26 x 6.14 inches)
Housing Aluminium
Weight 0.3 kg
Operating Temperature -40 to +70°C (-40 to +158°F)
Storage Humidity 0-95% relative humidity
Storage Temperature -40 to +85°C (-40 to +185°F)
Type of Use Industrial environment
Standards and Certifications Ingress protection: IP40; MIL-217F; Certifications: CE according to RED 2014/53/EU, RoHS, ACMA/RCM; EMC: EN 301489-1, EN 301489-19, EN 301489-52; Safety: EN/IEC 62368-1, Safety Requirements for audio/video, information and communication technology equipment; Radio spectrum usage: EN 301908-1, EN 301908-2, EN 301908-13; Shock and vibration: EN 61373 Rail Class A - Bodymounted
