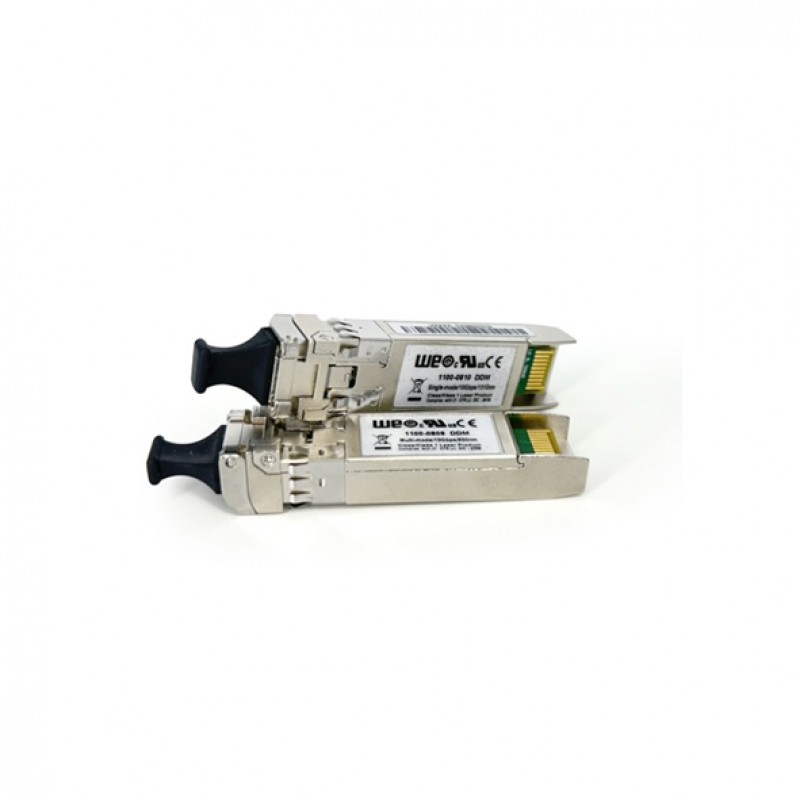

Westermo 10GSLC80 SFP Module
- 1 x 10 Gbit/s SFP port (Singlemode, Duplex LC connector)
- 80 km Typical data transmission distance on fiber
- Diagnostics: ±3°C Temperature at ± 3 VDC Voltage
- Maximum transmit wavelength: 1550 nm
- Wide operating temperature range, -40 to +85°C
Description
10 Gbit/s SFPs are suitable for short- and long-range applications requiring high bandwidth. The available models can use both multimode and single-mode fibre cables. Using the DDM functionality, which is fully integrated into WeOS, it is possible to monitor parameters such as temperature, TX/RX power, and voltage, ensuring correct operation.
As industrial networks transmit more data, 10 Gbit/s fibre links can be used to link data-intensive sites across long distances. Setting up high-bandwidth network backbones over long distances is now possible. The SFPs are tested and optimized for compatibility with the RedFox 7500 series platform and are offered in multiple variants, with indicative ranges from 400 m to 80 km.
To meet the high demands of mission-critical applications, all SFP transceivers undergo thorough environmental testing to ensure they can perform under the harshest conditions. Additionally, their functionality is pushed to the limit to guarantee availability and reliability.
WeOS, the Westermo operating system, is designed to meet the toughest requirements, and full support for all offered transceivers is a crucial aspect. All features of WeOS are extensively tested and verified to be fully supported on any WeOS device with a Westermo transceiver installed.
You can also find the 10GMLC.4, 10GSLC40, and 10GSLC10 models in the SFP Transceivers.
Inquire about the Westermo 10GSLC80 SFP Module, designed for industrial
automation solutions. Feel free to get in touch with our sales team to give you
the best solutions at the best global price in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Specification
| INTERFACE | |
|---|---|
| Ports | 1 x 10 Gbit/s SFP port (Singlemode) |
| Connector | Duplex LC connector |
| Typical Distance | 80 km |
| POWER REQUIREMENTS | |
| Power Information | - |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | Dimensions device: 14 x 12 x 57 mm (0.55 x 0.47 x 2.24 inches); Dimensions protrosion: 14 x 13 x 9 mm (0.55 x 0.51 x 0.35 inches) |
| Weight | - |
| Operating Temperature | -40 to +85°C (-40 to +185°F) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Ambient Relative Humidity | 5-95% relative humidity |
| Standards and Certifications | EMC: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Safety: EN/IEC 60825-1, Laser products - part 1: Equipment classification and requirement, EN/IEC 60825-2, Laser products - part 2: Safety of optical fibre communication systems, EN/IEC/UL 62368-1, Audio/video, information and communication technology equipment |
| MTBF | - |
