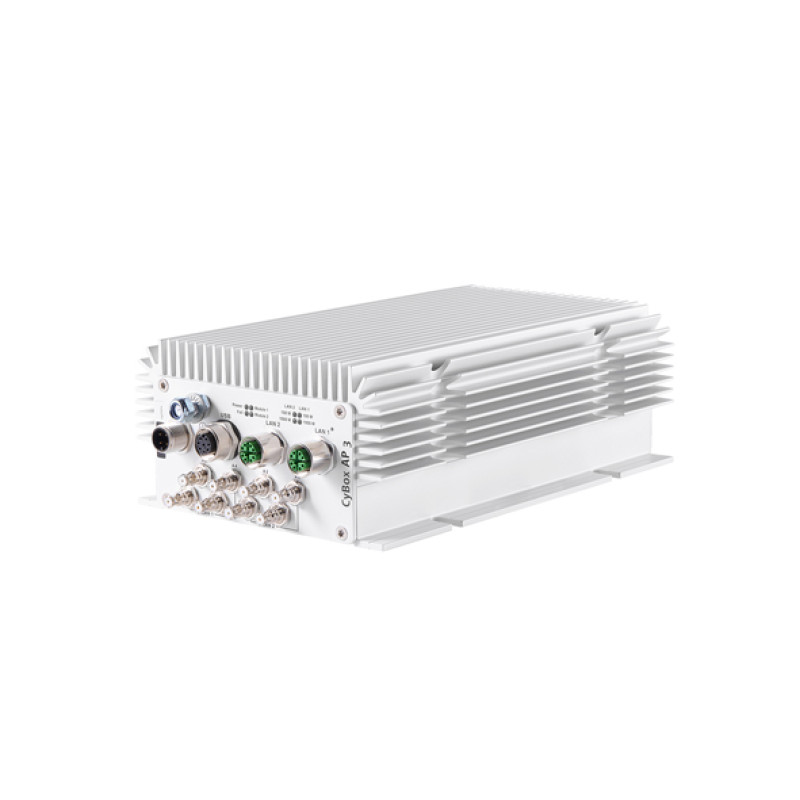

Westermo Cybox AP 3-W WLAN Dual Radio Railway Access Point
- IEEE802.11ac compliant with 4 x 4 MU-MIMO Wave 2
- Up to two Wave 2 interfaces for dual-band mode
- 2 x 1 Gbps Ethernet ports (M12 X-coded connectors)
- 1 x USB/Serial Port (USB 2.0, RS232, M12 A-coded)
- IP40-rated aluminum body and wall mounting
- Power over Ethernet (PoE+) according to IEEE 802.3at
- Ultra-wide-range power supply 24 to 110 VDC
- -40 °C to +70 °C operating temperature range
.png)
Description
The CyBox AP 3-W is a member of the CyBox family – robust
access points for railway applications. It is particularly designed to meet the
requirements of rolling stock applications. It offers stable, secure, and
high-bandwidth connections between the local Ethernet and wireless clients.
With the assistance of the access point, multiple mobile Wi-Fi-compatible
devices in a passenger train or subway can communicate with the Internet or
access local data, such as timetable information and multimedia data.
On the fixed network side, the access point features two
1-Gigabit Ethernet ports and higher bandwidth options to create a faster
backbone. The CyBox AP 3-W provides flexible powering options via an internal
power supply or Power-over-Ethernet (PoE+). PoE daisy chaining offers wireless
connectivity with two access points using just one cable, a noticeable
cost-saving factor, especially in retrofit programs.
The CyBox AP 3-W firmware provides a convenient management
interface via a web service. In addition to global setup parameters, the
open-source software OpenWrt allows the configuration of the radio interfaces,
including provider information and the login dialog, as well as the setup of
the stateful firewall. The access point and router configurations and the
management firmware can be updated remotely. Furthermore, the built-in, fully
configurable stateful firewall and multi-VPN support with hardware-accelerated
encryption ensure communication security.
You can also find the CyBox AP 2-W and CyBox AP-A models in the WLAN.
Easy World Automation offers the easiest way to buy the
Westermo Cybox AP 3-W WLAN Dual Radio Railway Access Point in the Middle East
(UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through
online inquiring. Our sales experts will contact you to fulfill all your
industrial automation needs.
Specification
| Interfaces | |
|---|---|
| 10/100/1000BaseT(X) Ports | : 2 x 10/100/1000BaseT(X), M12 X-coded connector |
| Modulation Type | - |
| Frequency Band | 2.412 GHz to 2.484 GHz, or 5.180 GHz to 5.825 GHz, selectable band |
| PoE Ports | : PoE+, Class-4 powered device, IEEE 802.3at |
| 100BaseFX Ports | |
| Wireless Security | OPEN, AES, TKIP, WPA, WPA2-PSK/EAP, WPA3- PSK/EAP, mixed modes, OWE |
| WLAN Antenna Connector | 4 x RF antennas (4 x 4 MU-MIMO technology) |
| Security | stateful firewall with multi-level client/AP isolation, rouge AP detection, authentication 802.1x |
| WLAN Operation Mode | Access Point, Router |
| WLAN Standards | IEEE 802.11 a/b/g/n/ac |
| 1000BaseSFP Slots | |
| Transmission Rates | up to 1733 Mbps |
| 10/100BaseT(X) Ports | |
| Digital Inputs | |
| Console Port | |
| Serial Ports | : 1 x RS232 Port (M12 8-pin female A-coded connector) |
| M12 Connector | |
| Power Requirement | |
| Input Current | - |
| Connector | M12 4-pin male A-coded |
| Input Voltage | 24 to 110 VDC, wide-range power supply (compliant to EN 50155) |
| Power Consumption | 20 W typ., 25 W max. |
| Reverse Polarity Protection | |
| Physical Characteristics | |
| Humidity | max. 95 % non-condensing operating and storage |
| Dimensions Packaged | 105 (130) mm x 70 mm x 204 mm (w h d), (incl. mounting points) |
| Weight (PACKAGED) | up to 1850 g |
| Housing | IP40, aluminum, conductive cooling |
| Installation | Wall Mounting |
| Standards and Certifications | Directive (EU) 2016/797: EN 50155 (IEC 60571), EN 45545-2 (HL 1 to HL 3), EN 61373 (Category 1, Class B); RED – 2014/53/EU: EMC, radio spectrum, health & safety; FCC: Title 47 CFR Part 15B (on request); IEC 62380; IP40 |
| Operating Temperature | depending on temperature class of Wi-Fi module: Class OT4, -40.. +70 °C (85 °C) operating or Class OT3, -25.. +70 °C (85 °C) operating |
| Storage Temperature | -40 to +85 °C |
| General | |
| Management | Remote Management: SNMP V1/V2/V3, telnet, SSH, http, https; Network Link Management: link priorization, load balancing, link aggregation |
| LED Indicators | Power LED Status, Fail LED Status, Module 1 LED Status, Module 2 LED Status, LAN LED Status |
| MTBF | approx. ~350.000 h (acc. to IEC 62380) |
| Time Management | - |
