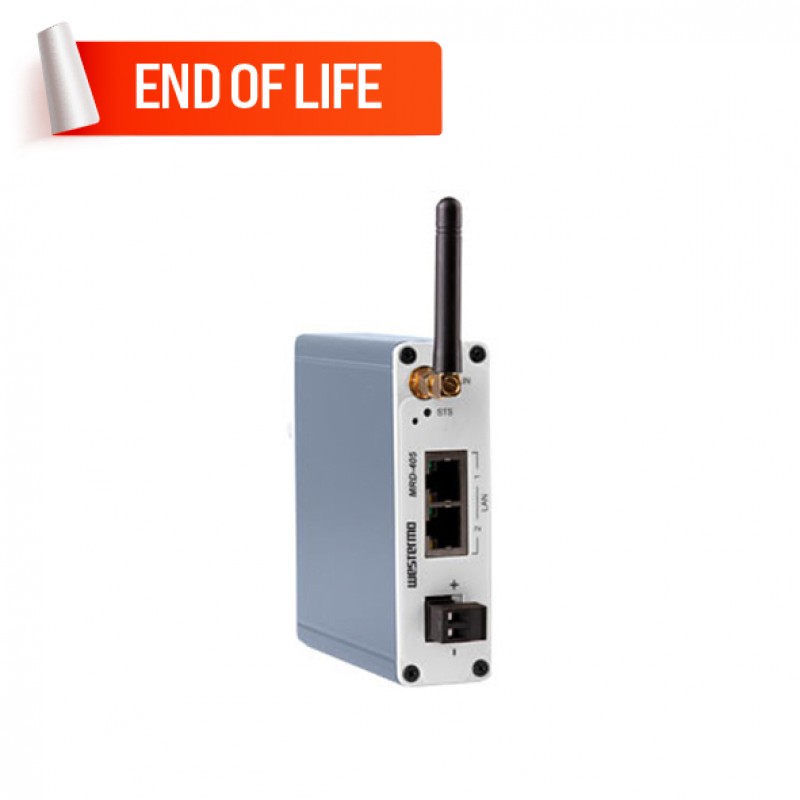

Westermo MRD-405 Dual SIM Industrial 4G router
- 2 x 10 Mbit/s or 100 Mbit/s
- Industrial 4G LTE Gateway/Router
- Brand: WESTERMO
- Product Code: MRD-405
Description
Remote access removes boundaries, eliminates the need for time consuming site visits and provides a network infrastructure suitable for today’s ”always on” society. The MRD-405 industrial 4G LTE gateway/router uses the Internet to cost effectively inter-connect systems, allowing HMI, PLCs, sensors etc to communicate with each other, a pre-requisite for any Industrial Internet (IIoT/IoT) solution.
A compact case design with a power input range between 10 to 36 VDC make the unit well suited for industrial applications. Easy integration with other devices is achieved using the built-in two port Ethernet switch.
The stability of mobile connections can be affected by a variety of parameters and in order to ensure constant connectivity the MRD-series features the customer praised connection manager. The unit will monitor the cellular connection and, without human-interaction, solve most network related issues, preventing unnecessary power-cycle site visits!
The MRD-405 offers network protection from malicious eavesdroppers via encrypted communication tunnels (VPN), and features a simple, yet powerful, packet inspection firewall.
Requirements and needs vary between different types of M2M/IIoT applications. Sometimes all that is needed is a reliable gateway to the internet whereas other applications might have simpler devices that need to be securely connected to each other, or a server, via a VPN. Regardless of which type of remote access application you might have the MRD-405 can fulfill your communication needs. The unit works very well with any type of SIM card, such as static IP SIM, M2M SIM, or an off-the-shelf SIM.
Configuring the unit is very easy with the built-in web-interface, no need for special AT-commands or similar. The device can also provide both management and monitoring via SMS, for example an SMS could be sent to start a VPN.
You can place an order for the Westermo MRD-405 Dual SIM Industrial 4G router, which is applicable in the Oil & Gas industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
Interface | |
---|---|
Memory card slot for storage | |
MicroUSB | |
SIM card slot | : 1 SIM card slot |
WAN | |
LAN | : 2 RJ45 10/100Mbps Ports |
USB | |
FXO / FXS | |
DSL | |
Digital Input and Output | |
Serial port | |
Alert Output | |
Radio specifications | |
Standards and Wireless Standards | |
2G , 3G , 4G Standards | GPRS/3G/HSUPA/HSDPA/4G LTE |
Radio Connection type | - |
WiFi Antenna | |
4G / 3G / 2G Antenna | 1 external antenna |
WiFi Gain Antenna | |
4G / 3G / 2G Gain Antenna | - |
Maximum WiFi data transfer speed | |
Maximum data transfer speed of 2G | - |
Maximum data transfer speed of 3G | 7000Kbps download speed, 5000Kbps upload speed |
Maximum data transfer speed of 4G | Download speed 10000Kbps, upload speed of 5000Mbps |
WiFi Radio Frequency | |
2G network frequency | 900MHz, 1800MHz |
3G network frequency | 850MHz, 900MHz, 2100MHz |
4G network frequency | 800MHz(B20), 1800MHz(B3), 2600MHz(B7) |
Number of radio channels | - |
Maximum direct range | - |
Maximum WiFi Output Power | |
Radio Channel Bandwidth | - |
Software Specifications | |
VPN | IPSec, OpenVPN, PSK, X.509, WeConnect |
Firewall | ACL, NAT, Port Forwarding |
WPS | |
Cloud computing feature | |
Serial performance | |
General | |
Operating mode | Router, Gateway |
Management | HTTP and HTTPS, CLI, SSHv2, TELNET, SNMPv1/v2c/v3, SMS Control, Flexible alarm/event handling system, Syslog, SNTP, DHCP client & server, DDNS |
Standards and protocols | |
Protocols | IEEE 802.3, IEEE 802.3u, CSD, IEEE 802.1p, IPsec, PPP Dial in/Dial out |
Serial port standard | |
Features and capabilities | |
3G phone calls | - |
Create and edit phonebook | - |
Send and receive SMS | |
Security | |
Security and Encryption | - |
Authentication | - |
Serial security | |
SSID | - |
Power Requirements | |
Power Consumption (Output Adapter) | 10V DC to 36V DC |
POE Support | |
Battery | |
Type of power input | Terminal |
Buttons | |
Power button | |
3G / WAN button | |
WPS button | |
Reset | |
LED Indicators | |
Phone | |
SMS | |
WLAN | |
3G / 2G | - |
WAN | |
LAN | - |
Power | |
Internet | |
Wireless Signal Strength | |
WPS | |
Physical Characteristics | |
Dimensions | 30.5x103x92mm |
Weight | 0.25Kg |
Operating Temperature | -40 to 70 ° C |
Storage Humidity | 0 to 95% RH, non-condensing |
Storage Temperature | -40 to 85 ° C |
Type of Use | Industrial environment |
Standards and Certifications | IP40, EN 60950-1, EN 50385, EN 301 489-1, EN 301 489-7, EN 301 489-24, EN 301 908-1 and EN 301 908-2, EN 301 511 and EN 301 908-13 LTE, IEC/EN 60950-1 |
Optical isolation |
