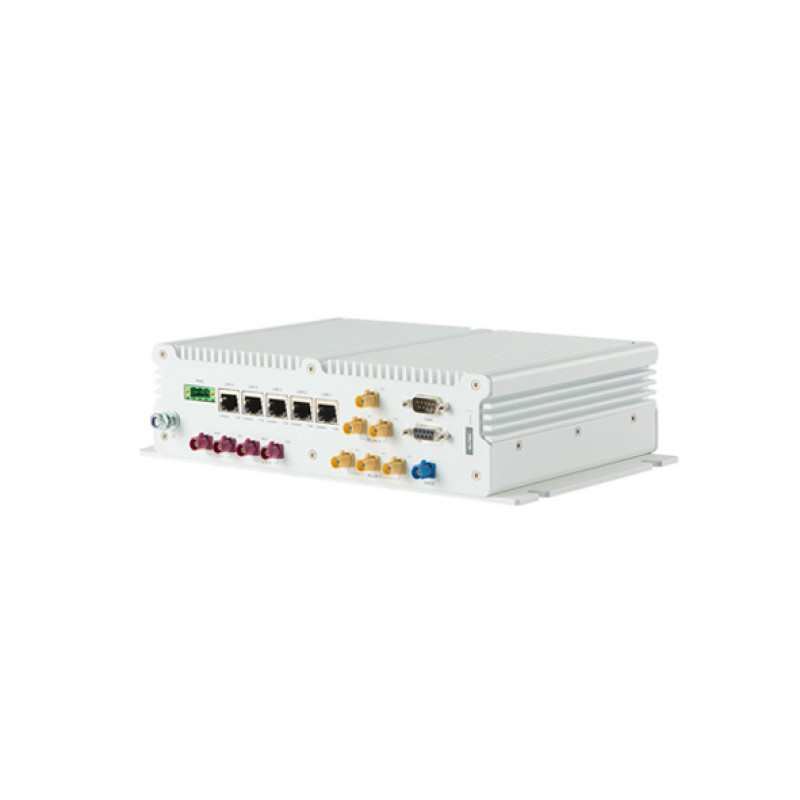

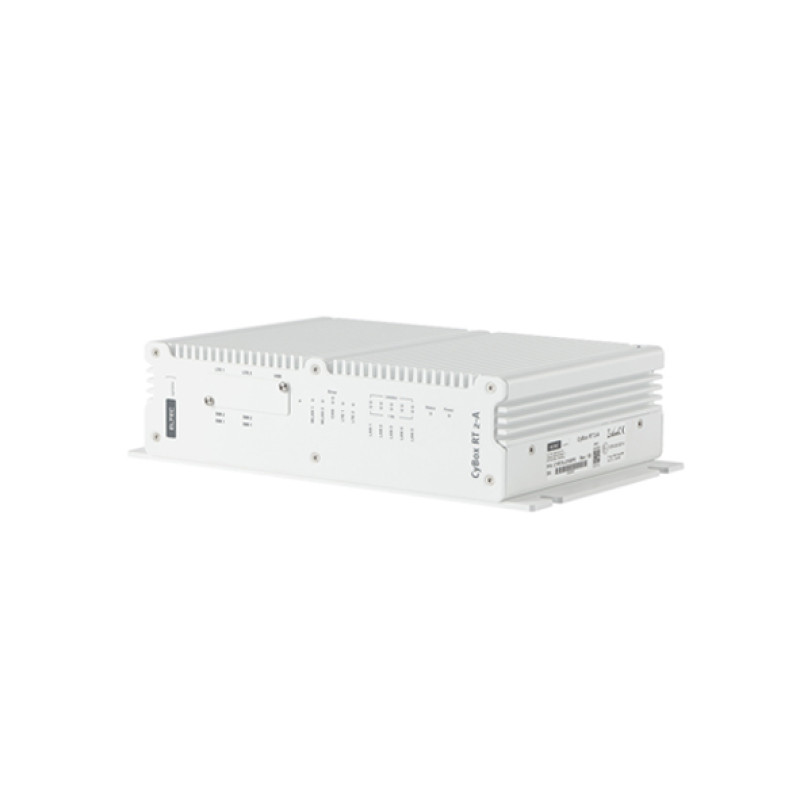

Westermo CyBox RT 2-A Automotive Wireless Router
- 3 x 3 MIMO with up to 1300 Mbps
- Up to 2 x LTE and 2 x IEEE802.11ac Wi-Fi interfaces
- 2 x SIM card slots for each LTE interface
- 5 x 10/100/1000BaseT(X) Ports (RJ45 connector)
- 1 x USB 2.0 Port (USB Type-A connector)
- IP40-rated aluminum body and wall mounting
- 12 to 24 VDC wide-range power supply
- -40 °C to +70 °C operating temperature range
.png)
Description
The CyBox RT 2-A is a robust wireless communication router
for automotive applications. It offers stable, secure, and broadband LTE
connections for data exchange via vehicle-to-ground connections and high-speed
internet. The device hosts multiple LTE interfaces for parallel LTE channel use
and thus maximized throughput, multiple Wi-Fi interfaces to connect to client
devices such as mobile phones, as well as five Gigabit Ethernet ports to attach
the device to a backbone network. Country-specific LTE and Wi-Fi standards are
adopted for worldwide use in every type of vehicle.
There is mounting space for up to four radio modules within
the CyBox RT 2-A. The radios can operate in different standards, including LTE
and its predecessors. Each LTE module can be provided with up to two SIM cards
for optimal net coverage and maximum provider flexibility. The Wi-Fi
interfaces allow for connecting clients at high data rates on each interface to
boost network efficiency and maximize data throughput. To provide the CyBox RT
2-A with internal storage, a mounting space for an M.2 solid state drive is
supplied. It can be used for local content or data storage.
The CyBox RT 2-A firmware provides a convenient management interface via a web service. Besides global setup parameters, the open-source software OpenWrt allows the configuration of the radio interfaces, including provider information and the login dialog, as well as the setup of the stateful firewall. The access point, router configurations, and management firmware can be updated remotely. Furthermore, the built-in, fully configurable stateful firewall and multi-VPN support with hardware-accelerated encryption ensure communication security.
You can also find the CyBox GW 2-P, CyBox GW-P, CyBox LTE 2-W, and CyBox RT 3-W models in the Wireless Routers.
Inquire about the Westermo CyBox RT 2-A Automotive Wireless Router, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| SIM card slot | : Up to 2 SIM cards per LTE interface |
| Ethernet Ports | : 5 x 10/100/1000BaseT(X), RJ45 connectors |
| USB | : 1 x USB 2.0 Port (USB Type-A connector) |
| Digital Input and Output | |
| Serial port | |
| Alert Output | |
| Band Options | 4G (LTE) Bands: B1, B3, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43; 3G Bands: B1, B5, B8 |
| Cellular Standards | 4G (LTE Cat-7), 3G |
| Cellular Antenna Connectors | 11 x QLS connectors with optional FAKRA adapters |
| WLAN Standards | IEEE 802.11 a/b/g/n/ac (Wi-Fi 5) |
| WLAN Antenna Connector | 3 x RF antennas (3 x 3 MIMO technology) |
| GPS Antenna Connector | |
| Radio specifications | |
| Radio Connection type | Supports up to 2 LTE interfaces for channel-bundled WAN access |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | up to 300 Mbps download / 150 Mbps upload |
| WiFi Radio Frequency | 2.412 GHz to 2.472 GHz, or 4.920 GHz to 5.825 GHz, selectable band |
| Software Specifications | |
| Routing Redundancy | |
| VPN | multi-VPN with hardware-accelerated encryption |
| Firewall | Stateful firewall with multi-level client/AP isolation |
| Time Management | |
| Management | |
| General | |
| LED Indicators | Power LED Status, Status LED, Module LED, LAN LEDs Status |
| MTBF | approx. ~220.000 h (acc. to IEC 62380) |
| Operating mode | Access Point, Router |
| Standards and protocols | |
| Protocols | NMEA, RTCM 104 (GNSS) |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | Encryption: AES, TKIP, WPA, WPA2, WPA3 |
| Authentication | |
| Power Requirements | |
| Power Connector | 3-pin male connector with ignition contact |
| Power Consumption (Output Adapter) | 12 W typ., 30 W max. |
| Input Voltage | 12 to 24 VDC, wide-range power supply (compliant to E1) |
| POE Support | - |
| Input Current | - |
| Reverse Polarity Protection | - |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | Wall Mounting |
| Dimensions | 251 (284) mm x 70 mm x 170 mm (w h d) (width mounting points) |
| Housing | IP40, aluminum, conductive cooling |
| Weight | up to 2800 g |
| Operating Temperature | depending on temperature class of Wi-Fi module (-40.. +75 °C operating or -25.. +75 °C operating), (+65 °C operating when using an SSD) |
| Storage Humidity | max. 95 % non-condensing operating and storage |
| Storage Temperature | -40 °C to +85 °C |
| Type of Use | Automotive applications |
| Standards and Certifications | Standards: ISO 16750-1, -2, -3, -4, -5; E1: Type Approval UN ECE R10, R118; RED – 2014/53/EU: EMC, radio spectrum, health & safety; IP40; IEC 62380 |
