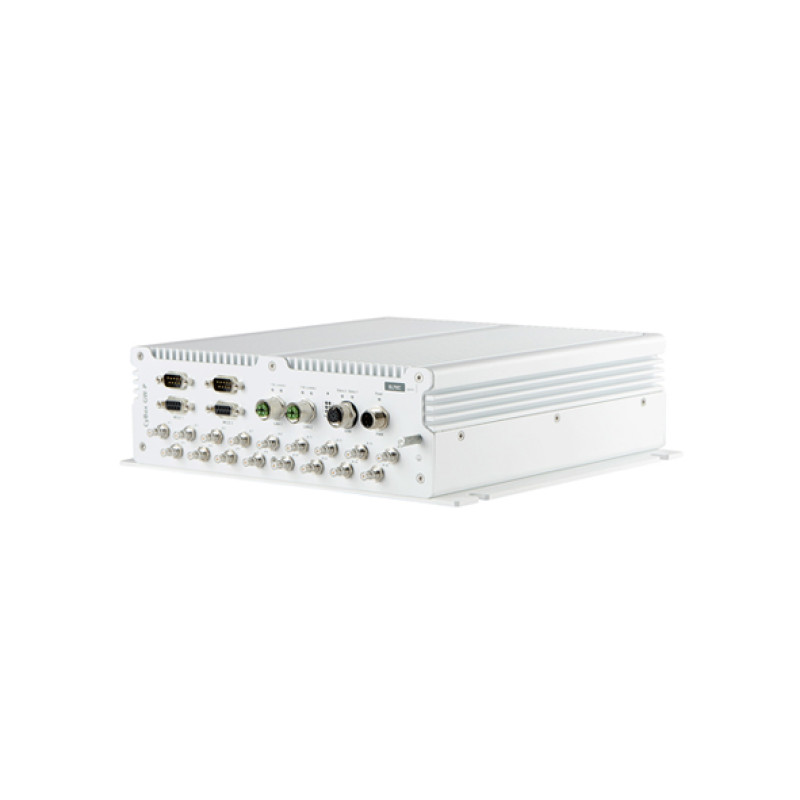

Westermo CyBox GW-P Mobile Wireless Gateway
- Up to 5 LTE interfaces for channel-bundled WAN access
- Up to 4 SIM cards for each LTE interface
- 1x Wave 2 / 4x4 multi-user MIMO with up to 1733 Mbps
- Dual 1 Gigabit Ethernet on M12 X-coded connectors
- Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
- Up to 2 sockets for expansions (CAN, MVB, RS232 and more)
- Optional internal SSD storage up to 960 GB
- Integrated GNSS
Description
The CyBox GW-P is a robust wireless communication gateway for railway applications. It offers stable, secure, and broadband LTE connections for train-to-ground communication and high-speed internet. The device hosts multiple LTE interfaces for parallel LTE channel use and thus maximized throughput, multiple Wi-Fi interfaces to connect to client devices such as mobile phones, and dual Gigabit Ethernet ports to attach the device to a backbone network. Country-specific LTE/Wi-Fi standards are adopted worldwide in every type of train.
You can place an order for the Westermo CyBox GW-P Mobile Wireless Gateway, which is applicable in the Railway Transportation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
| INTERFACE | |
|---|---|
| LAN | 2x 10/100/1000BaseT(X), M12 X-coded |
| Power Input | M12 4-pin male A-coded |
| Reset Switch | available on front panel |
| Software | Linux OS OpenWrt |
| System Architecture | Quad-Core CPU T1042, 1400 MHz Octa-Core CPU T2081, 1800 MHz up to 4 GB RAM, 256 MB Flash |
| USB/Serial Port | M12 8-pin female A-coded, USB 2.0, RS232 |
| Antenna connectors | QLS connectors |
| LTE INTERFACE | |
| 3G Bands | B1, B2, B3, B4, B5, B8 |
| 4G (LTE) Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 |
| Antenna | with Diversity and MIMO |
| Transfer Rates | up to 300 Mbps download / 50 Mbps upload |
| GENERAL | |
| MTBF | approx. ~180.000 h |
| WI-FI INTERFACE | |
| Encryption | AES, TKIP, WPA, WPA2, WPA3 |
| Frequency Range | 2.412 GHz to 2.484 GHz, or 5.180 GHz to 5.825 GHz, selectable band |
| Operational Feature | up to 256 clients per radio |
| Security | stateful firewall with multi-level client isolation |
| Transfer Rates | up to 1733 Mbps |
| GNSS INTERFACE | |
| Accuracy | up to 1.5 m |
| Frequency Band | GPS (L1), GLONASS (L1, FDMA), Galileo (E1) ready, Beidou |
| Protocol Standards | NMEA, RTCM 104 |
| Time To First Fix | cold start < 35 s, warm start 1 s |
| POWER REQUIREMENTS | |
| Interruptions of Voltage Supply | EN 50155, Class S2 |
| Power Supply | 24 to 110 VDC, wide-range power supply (compliant with EN 50155) |
| Power consumption | 36/46 W typ., 40/50 W max |
| PHYSICAL CHARACTERISTICS | |
| Ambient Temperature | depending on the temperature class of the Wi-Fi module Class OT4, -40.. +70 °C (85 °C) operating or Class OT3, -25.. +70 °C (85 °C) operating -40.. +85 °C storage |
| Humidity | max. 95 % non-condensing operating and storage |
| Housing | IP40, aluminum, wall-mount, conductive cooling |
| Dimensions | 251 (284) mm x 76 mm x 246 mm (w h d) (incl. mounting points) |
| Weight | up to 4250 g |
| Standards and Certifications | EN 50155 (IEC 60571) EN 45545-2 (HL 1 to HL 3) EN 61373 (Category 1, Class B) |
