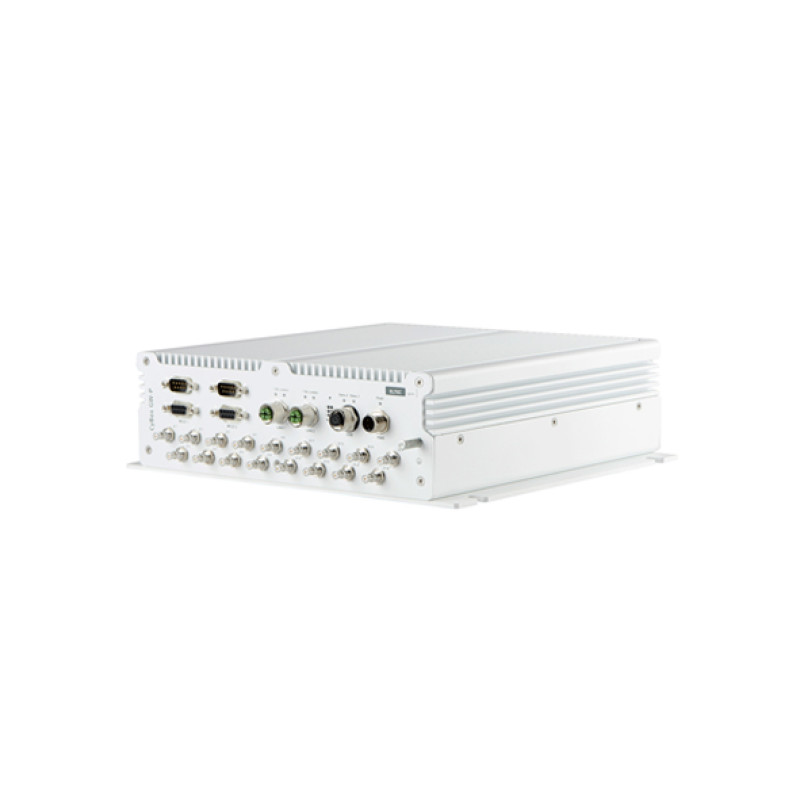

Westermo CyBox LTE 2-W LTE and WLAN Router
- Up to 2 LTE interfaces for channel-bundled WAN access
- Up to 4 SIM cards for each LTE interface
- Optional Wi-Fi 5 radio with 3x3 MIMO up to 1300 Mbps
- Dual 1 Gigabit Ethernet on M12 X-coded connectors
- Optional internal high-speed Ethernet switch
- Optional bypass relays
Description
The CyBox LTE 2-W is a member of the box family – robust wireless communication routers for railway applications. It offers stable, secure, and broadband LTE connections for train-to-ground communication and high-speed internet. The device hosts up to two LTE interfaces for parallel LTE channel use and thus maximized throughput or one Wi-Fi 5 interface combined with an LTE interface to boost network efficiency and connect to client devices such as mobile phones. Country-specific LTE/Wi-Fi standards are adopted for worldwide use in every type of train.
You can place an order for the Westermo CyBox LTE 2-W LTE and WLAN Router, which is applicable in the Railway Transportation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
INTERFACE | |
---|---|
LAN | 2x 10/100/1000BaseT(X), M12 X-coded |
Power Input | M12 4-pin male A-coded |
Reset Switch | available on front panel |
Software | Linux OS OpenWrt |
System Architecture | Dual-Core CPU T1023, 1200 MHz 1 GB RAM, 128 MB Flash |
USB/Serial Port | M12 8-pin female A-coded, USB 2.0, RS232 |
Antenna connectors | QLS connectors |
LTE INTERFACE | |
3G Bands | B1, B2, B3, B4, B5, B8 |
4G (LTE) Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 |
Antenna | with Diversity and MIMO |
Transfer Rates | up to 1300 Mbps |
GENERAL | |
MTBF | approx. ~280.000 h |
WI-FI INTERFACE | |
Encryption | AES, TKIP, WPA, WPA2, WPA3 |
Frequency Range | 2.412 GHz to 2.472 GHz, or 4.920 GHz to 5.825 GHz, selectable band |
Operational Feature | up to 128 clients per radio |
Security | stateful firewall with multi-level client isolation |
POWER REQUIREMENTS | |
Interruptions of Voltage Supply | EN 50155, Class S2 |
Power Supply | 24 to 110 VDC, wide-range power supply (compliant to EN 50155) |
Power consumption | 15 W typ., 25 W max |
PHYSICAL CHARACTERISTICS | |
Ambient Temperature | depending on temperature class of Wi-Fi module Class OT4, -40.. +70 °C (85 °C) operating or Class OT3, -25.. +70 °C (85 °C) operating -40.. +85 °C storage |
Humidity | max. 95 % non-condensing operating and storage |
Housing | IP40, aluminum, wall-mount, conductive cooling |
Dimensions | 105 (130) mm x 55 mm x 206 mm (w h d) (incl. mounting points) |
Weight | up to 1350 g |
Standards and Certifications | EN 50155 (IEC 60571) EN 45545-2 (HL 1 to HL 3) EN 61373 (Category 1, Class B) |
