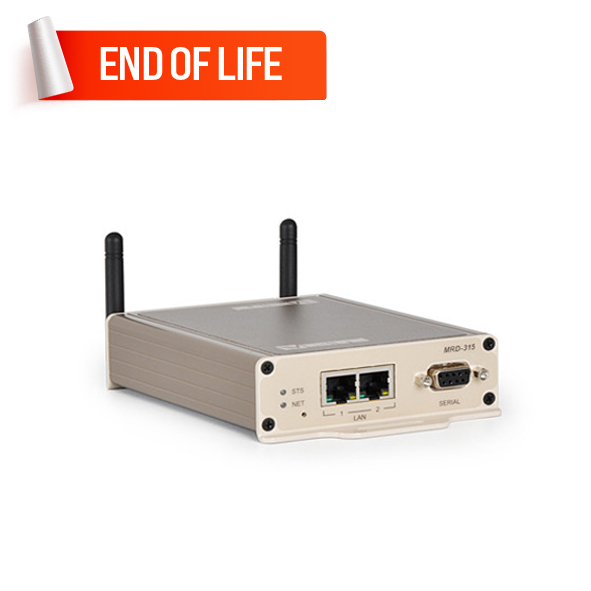

Westermo MRD-315 Industrial 3G Router

Westermo MRD-315 Industrial 3G Router
Westermo MRD-315 Industrial 3G Router
Westermo MRD-315 Industrial 3G Router
Westermo MRD-315 Industrial 3G Router
Westermo MRD-315 Industrial 3G Router

  • Access SCADA systems, HMI and PLCs remotely
  • Wireless mobile broadband GPRS/EDGE/3G/HSPA connection
  • 2 x 10 Mbit/s or 100 Mbit/s Ethernet ports (RJ-45 connector)
  • 1 x RS-232 Serial port (9-pin D-sub female, 300 bit/s – 115.2 kbit/s)
  • 1 x SIM slot (3 volts SIM supported)
  • 12 to 48 VDC Power input range (Wide Range 10 to 60 VDC)
  • Compact casing with DIN-rail mounting
  • -40 to +70 °C operating temperature range

0 reviews • Write a review
Datasheet User Manual
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (0 to 90% relative humidity non-condensing)
  • IP protection (IP40)
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Westermo Cybox AP 2-W WLAN Dual Radio Railway Access Point
Quickview
Westermo Cybox AP 2-W WLAN Dual Radio Railway Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo Cybox AP 3-W WLAN Dual Radio Railway Access Point
Quickview
Westermo Cybox AP 3-W WLAN Dual Radio Railway Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo Cybox GW 2-P Mobile Wireless Gateway
Quickview
Westermo Cybox GW 2-P Mobile Wireless Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox GW-P Mobile Wireless Gateway
Quickview
Westermo CyBox GW-P Mobile Wireless Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox LTE 2-W LTE and WLAN Router
Quickview
Westermo CyBox LTE 2-W LTE and WLAN Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox RT 2-A Automotive Wireless Router
Quickview
Westermo CyBox RT 2-A Automotive Wireless Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox RT 3-W Wi-Fi 5 Wave 2 Router
Quickview
Westermo CyBox RT 3-W Wi-Fi 5 Wave 2 Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo GW1042M-QFR-DCn0936 Dual SIM Industrial 4G LTE Router
Quickview
Westermo GW1042M-QFR-DCn0936 Dual SIM Industrial 4G LTE Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Routers , Cellular LTE Routers , Wireless & Cellular Routers , Cellular Gateways & Routers , Industrial Data Communications , Industrial Cellular Solutions , Wireless Routers , Oil & Gas Products , Routers , Westermo MRD-315

Remote access removes boundaries, eliminates the need for time-consuming site visits, and provides a network infrastructure suitable for today’s “always-on” society. The MRD-315 industrial mobile broadband router uses the Internet to cost-effectively interconnect systems, allowing HMI, PLCs, sensors, etc, to communicate with each other.

A compact case design with DIN-rail mounting clips and a wide power input range between 10 and 60 VDC makes the unit well-suited for industrial applications. Easy integration with other devices is achieved using the built-in two-port Ethernet switch and the RS-232 D-sub. The stability of mobile connections can be affected by various parameters, and in order to ensure constant connectivity, the MRD-series features a connection manager.

The MRD-315 offers network protection from malicious eavesdroppers via encrypted communication tunnels (VPN) and features a simple yet powerful packet inspection firewall. For solar-powered applications, energy efficiency is vital, and the MRD-315 has a special low-power mode to be fully powered when needed. The built-in serial port offers a simple modem replacement solution with the benefit of not having to reprogram or change legacy components during an upgrade.


You can also find the MRD-355, Merlin-3103-T2G-PFO-DCi0936, and Merlin-3103-T2G-QFR-G-DCi0936 models in the Wireless Routers.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the Westermo MRD-315 Industrial 3G Router through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

3g modem : Interface
SIM card slot Yes : 1 x SIM slot (3 volts SIM supported)
Ethernet Ports Yes : 2 x 10 Mbit/s or 100 Mbit/s Ethernet ports (RJ-45 connector)
USB No
Digital Input and Output No
Serial port Yes : 1 x RS-232 Serial port (9-pin D-sub female, 300 bit/s – 115.2 kbit/s)
Alert Output No
Band Options GSM, GPRS, EDGE: 850/900/1800/1900; 3G UMTS, HSDPA, HSUPA: 800/850/900/AWS 1700/1900/2100
Cellular Standards GSM, GPRS, EDGE, 3G UMTS, HSDPA, HSUPA
Cellular Antenna Connectors 3 x SMA antenna connectors
WLAN Standards No
WLAN Antenna Connector No
GPS Antenna Connector Yes
3g modem : Radio specifications
Radio Connection type -
Maximum data transfer speed of 2G GSM: 14.4 kbit/s Downlink and Uplink; GPRS: 85.6 kbit/s Downlink and Uplink; EDGE: 236.8 kbit/s Downlink and Uplink
Maximum data transfer speed of 3G 3G UMTS: 384 kbit/s Downlink and Uplink; HSDPA: 21.0 Mbit/s Downlink; HSUPA: 5.7 Mbit/s Uplink
Maximum data transfer speed of 4G No
WiFi Radio Frequency No
3g modem : Software Specifications
Routing Redundancy No
VPN IPsec VPN, OpenVPN, SSL VPN client
Firewall ACL, NAT, Port Forwarding, IP filtering
Time Management No
Management Web interface (HTTP and HTTPS), Command Line Interface (CLI) via SSHv2 and TELNET, SNMPv1/v2c/v3,SM S Control, Flexible alarm/event handling system, Syslog (log files and remote syslog server), SNTP (NTP client), DHCP client, DHCP server, DDNS (Dynamic DNS update client)
3g modem : General
LED Indicators STS, NET, NET 1, NET 2
MTBF -
Operating mode Router, 3G Modem, GSM/GPRS modem
3g modem : Standards and protocols
Protocols UDP, TCP, FTP, SSH, TELNET, ICMP, RIPv1/v2, VRRP, GRE, 1 x L2TP client, 1 x PPTP client, Simple Certificate Enrollment Protocol (SCEP), RADIUS, PPP Dial in/Dial out MD5, SHA, DES, 3DES, AES/FIPS 197, TLS
3g modem : Features and capabilities
Send and receive SMS Yes
3g modem : Security
Security and Encryption No
Authentication No
3g modem : Power Requirements
Power Connector -
Power Consumption (Output Adapter) No network registration: 51 mA, 1.224 W; GPRS Idle: 59 m, 1.416 W; GPRS Average send/receive: 110 mA, 2.64 W; GPRSS Max send/receive: 140 mA, 3.36 W; UMTS/LTE Idle: 59 mA, 1.416 W; UMTS/LTE Average send/receive: 84 mA, 2.016 W; UMTS/LTE Max send/receive: 88 mA, 2.12 W
Input Voltage 12 - 48 VDC (Wide Range 10 - 60 VDC)
POE Support No
Input Current -
Reverse Polarity Protection Supported
3g modem : Buttons
Power button No
Reset Yes
3g modem : Physical Characteristics
Installation DIN-rail mounting
Dimensions 103 x 32 x 156 mm (2.08 x 4.05 x 4.05 in)
Housing -
Weight 0.3Kg
Operating Temperature –40 to +70ºC (–40 to +158ºF)
Storage Humidity 0-95% relative humidity
Storage Temperature –40 to +85ºC (–40 to +185ºF)
Type of Use Industrial environment
Standards and Certifications Ingress protection: IP40; EMC: EN 55024, EN 55024 A1, EN 55024 A2, Electromagnetic compatibility – Immunity IT equipment, EN 55022, EN 55022 A1, Information technology equipment, Radio disturbance characteristics. Limits and methods of measurement; Safety: EC/EN 60950-1, IT equipment;
