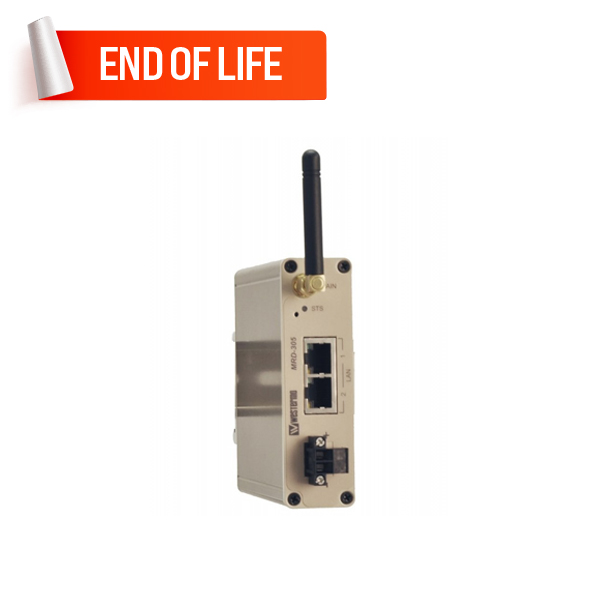

Westermo MRD-305-DIN Industrial 3G Router

Westermo MRD-305-DIN Industrial 3G Router
Westermo MRD-305-DIN Industrial 3G Router
Westermo MRD-305-DIN Industrial 3G Router
Westermo MRD-305-DIN Industrial 3G Router
Westermo MRD-305-DIN Industrial 3G Router

  • Industrial M2M/3G Gateway/Router
  • Access SCADA systems, HMI, and PLCs remotely
  • Wireless mobile broadband GPRS/EDGE/3G/HSPA connection
  • 2 x 10 Mbit/s or 100 Mbit/s Ethernet ports (RJ-45 connector)
  • 1 x SIM slot (3 volts SIM supported)
  • 12 to 24 VDC Power input range (Wide Range 10 to 36 VDC)

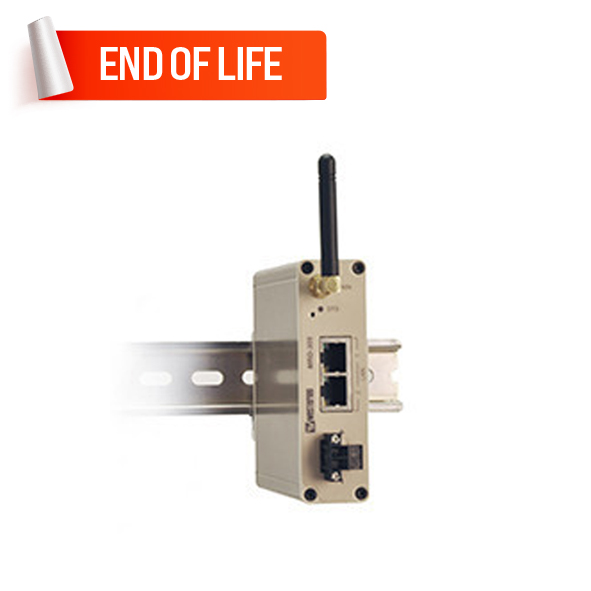

  • DIN-rail mount installation design
  • -40 to +70 °C operating temperature range

0 reviews • Write a review
Datasheet User Manual
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (0 to 95% RH, non-condensing)
  • IP protection (IP40)
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Westermo Cybox AP 2-W WLAN Dual Radio Railway Access Point
Quickview
Westermo Cybox AP 2-W WLAN Dual Radio Railway Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo Cybox AP 3-W WLAN Dual Radio Railway Access Point
Quickview
Westermo Cybox AP 3-W WLAN Dual Radio Railway Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo Cybox GW 2-P Mobile Wireless Gateway
Quickview
Westermo Cybox GW 2-P Mobile Wireless Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox GW-P Mobile Wireless Gateway
Quickview
Westermo CyBox GW-P Mobile Wireless Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox LTE 2-W LTE and WLAN Router
Quickview
Westermo CyBox LTE 2-W LTE and WLAN Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox RT 2-A Automotive Wireless Router
Quickview
Westermo CyBox RT 2-A Automotive Wireless Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox RT 3-W Wi-Fi 5 Wave 2 Router
Quickview
Westermo CyBox RT 3-W Wi-Fi 5 Wave 2 Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo GW1042M-QFR-DCn0936 Dual SIM Industrial 4G LTE Router
Quickview
Westermo GW1042M-QFR-DCn0936 Dual SIM Industrial 4G LTE Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Routers , Cellular LTE Routers , Wireless & Cellular Routers , Cellular Gateways & Routers , Industrial Data Communications , Industrial Cellular Solutions , Wireless Routers , Oil & Gas Products , Routers , Westermo MRD-305-DIN

Remote access removes boundaries, eliminates the need for time-consuming site visits, and provides a network infrastructure suitable for today’s “always-on” society. The MRD-305-DIN industrial M2M/3G gateway/router uses the Internet to cost-effectively interconnect systems, allowing HMI, PLCs, sensors, etc, to communicate with each other. A compact case design with a power input range between 10 and 36 VDC makes the unit well-suited for industrial applications. Easy integration with other devices is achieved using the built-in two-port Ethernet switch.

The stability of mobile connections can be affected by various parameters, and in order to ensure constant connectivity, the MRD-series features a connection manager. The MRD-305-DIN offers network protection from malicious eavesdroppers via encrypted communication tunnels (VPN), and features a simple, yet powerful, packet inspection firewall.

The requirements and needs vary between different types of M2M applications. Sometimes, all that is needed is a reliable gateway to the internet, as all the intelligence may be located in other devices in the system. Whereas other applications might have simpler devices that need to be securely connected or a server via a VPN. Regardless of which type of M2M application you might have, the MRD-305-DIN from Westermo can fulfill your communication needs. The unit works very well with any type of SIM card, such as static IP SIM, M2M SIM, or an off-the-shelf SIM in both packet mode or circuit switched data (CSD) mode. Configuring the unit is very easy with the built-in web interface; no special AT commands or similar are required. The device can also provide both management and monitoring via SMS; for example, an SMS could be sent to start a VPN.


End of Life Product - Replacement Available

Please note that the MRD-305-DIN has been phased out and replaced by the Merlin-3103-T2G-QFR-G-DCi0936.


Enjoy the ease of online inquiries for the Westermo MRD-305-DIN Industrial 3G Router. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

3g modem : Interface
SIM card slot Yes : 1 x SIM slot (3 volts SIM supported)
Ethernet Ports Yes : 2 x 10 Mbit/s or 100 Mbit/s Ethernet ports (RJ-45 connector)
USB No
Digital Input and Output No
Serial port No
Alert Output No
Band Options GSM, GPRS, EDGE: 850/900/1800/1900; 3G UMTS, HSDPA, HSUPA: 850/900/1900/2100
Cellular Standards GSM, GPRS, EDGE, 3G UMTS, HSDPA, HSUPA
Cellular Antenna Connectors 1 x SMA antenna connector
WLAN Standards No
WLAN Antenna Connector No
GPS Antenna Connector No
3g modem : Radio specifications
Radio Connection type -
Maximum data transfer speed of 2G GSM: 14.4 kbit/s Downlink and Uplink; GPRS: 85.6 kbit/s Downlink and Uplink; EDGE: 236.8 kbit/s Downlink and Uplink
Maximum data transfer speed of 3G 3G UMTS: 384 kbit/s Downlink and Uplink; HSDPA: 7.2 Mbit/s Downlink; HSUPA: 5.7 Mbit/s Uplink
Maximum data transfer speed of 4G No
WiFi Radio Frequency No
3g modem : Software Specifications
Routing Redundancy No
VPN IPsec VPN, PSK & X.509, OpenVPN / SSL VPN client, WeConnect
Firewall ACL, NAT, Port Forwarding
Time Management No
Management Web interface (HTTP and HTTPS), Command Line Interface (CLI) via SSHv2 and TELNET, SNMP v1/v2c/v3, SMS Control, Flexible alarm/event handling system, SNTP (NTP client), DHCP client, DHCP server, DDNS (Dynamic DNS update client)
3g modem : General
LED Indicators STS
MTBF MIL-217-F: 1 657 805 hours
Operating mode Router, 3G Modem, GSM/GPRS modem
3g modem : Standards and protocols
Protocols HTTP, HTTPS, CLI, SSHv2, TELNET, SNMPv1/v2c/v3, SNTP (NTP client), DHCP client, DHCP server, DDNS (Dynamic DNS update client)
3g modem : Features and capabilities
Send and receive SMS Yes
3g modem : Security
Security and Encryption No
Authentication None, PAP, CHAP
3g modem : Power Requirements
Power Connector -
Power Consumption (Output Adapter) Not registered: 44 mA, 1.056 W; GSM and UMTS registered: 50 mA, 1.2 W; GSM XMIT average: 69 mA, 1.656 W; GSM XMIT peak: 110 mA, 2.64 W; UMTS XMIT peak: 68 mA, 1.635 W
Input Voltage 12 to 24 VDC (Wide range 10 to 36 VDC)
POE Support No
Input Current -
Reverse Polarity Protection Supported
3g modem : Buttons
Power button No
Reset Yes
3g modem : Physical Characteristics
Installation DIN-rail mounting
Dimensions 31 x 103 x 103 mm
Housing -
Weight 0.25Kg
Operating Temperature –40 to +70ºC (–40 to +158ºF)
Storage Humidity 0 to 95% relative humidity non condensing.
Storage Temperature –40 to +85ºC (–40 to +185ºF)
Type of Use Industrial environments
Standards and Certifications MIL-217-F; Ingress protection: IP40; EMC: EN 55024, EN 55024 A1, EN 55024 A2, Electromagnetic compatibility – Immunity IT equipment, EN 55022, EN 55022 A1, Information technology equipment, Radio disturbance characteristics. Limits and methods of measurement; Safety: EC/EN 60950, IT equipment
