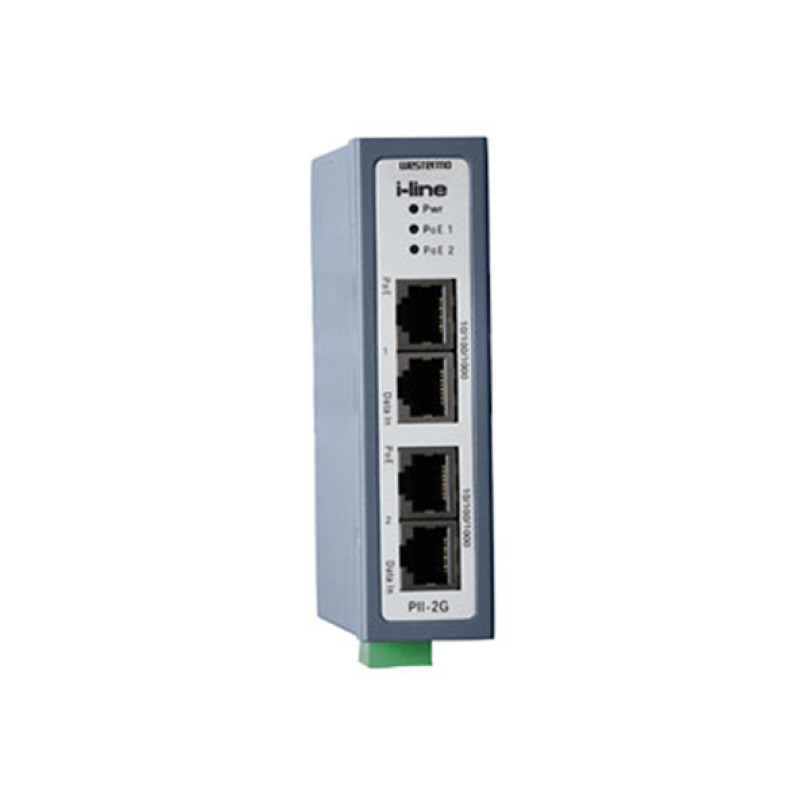

Westermo PII-2G PoE Injector
- Industrial 2-port PoE Injector
- 2 x 10/100/1000 TX data in ports
- 2 x 10/100/1000 TX IEEE 802.3af/at PoE ports
- Brand: WESTERMO
- Product Code: PII-2G
Description
The PII-2G is an advanced, high-end Power over Ethernet (PoE) injector, combining high performance with industrial robustness. It is suitable for PoE applications such as video surveillance and other applications where end devices are to be supplied with power through the Ethernet cable. The PoE concept is growing quickly thanks to the significant benefits it offers when it comes to installation cost, reliability, compactness, flexibility, etc. Using a PoE injector, any project can enjoy these benefits, be it a network upgrade or an initial installation. The PII-2G features dual injection ports with gigabit
capability. It is compliant with both IEEE 802.3af (max 15.4 W) and 802.3at (max 30 W) so that also high-power devices such as PTZ cameras and wireless access points can be handled. The gigabit capability enables connection also to high bandwidth end devices, such as access points.
As opposed to many power supplies delivered with PDs (Powered Devices), full compliance with IEEE 802.3af/at ensures protection for over current/short circuits and over/under voltage, thus protecting PDs from damage.
The unit can easily be clipped onto a standard DIN rail alongside other industrial equipment in a cabinet. No configuration of the device is needed. All that is required is a suitable power supply to make PoE functionality available on the network.
The robust design, with no moving parts, a wide temperature range, robust housing, and industrial electrical design, makes the PII-2G suitable for environments such as industrial automation, machine building, building automation, etc.
Easy World Automation offers the
easiest way to buy the Westermo PII-2G PoE Injector in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
Interface | |
---|---|
10/100Mb RJ45 (Megabit) Ports | |
10/100/1000Mb RJ45 (Gigabit) Ports | : 2 input ports |
Input PoE Port | |
Output PoE Port | : 2 Ports |
General | |
Installation | Din-rail |
MTBF | 500,000 hour |
Standards and protocols | |
Protocols and work standards | IEEE 802.3af, IEEE 802.3u |
Output power | - |
Power Requirements | |
Power Consumption (Output Adapter) | 46V DC, 0.8A to 57V DC and 50V DC, 1.3A to 57V DC |
Buttons | |
DIP Switch | |
LED Indicators | |
PoE | |
Power | |
Physical Characteristics | |
Standards and Certifications | EN 55022 CLASS A, EN 61000-6-4, EN 61000-6-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IP30 |
Dimensions | 30x112x90mm |
Storage Temperature | -40 to 80 ° C |
Operating Temperature | -40 to 70 ° C |
Storage Humidity | - |
Weight | 0.3Kg |
