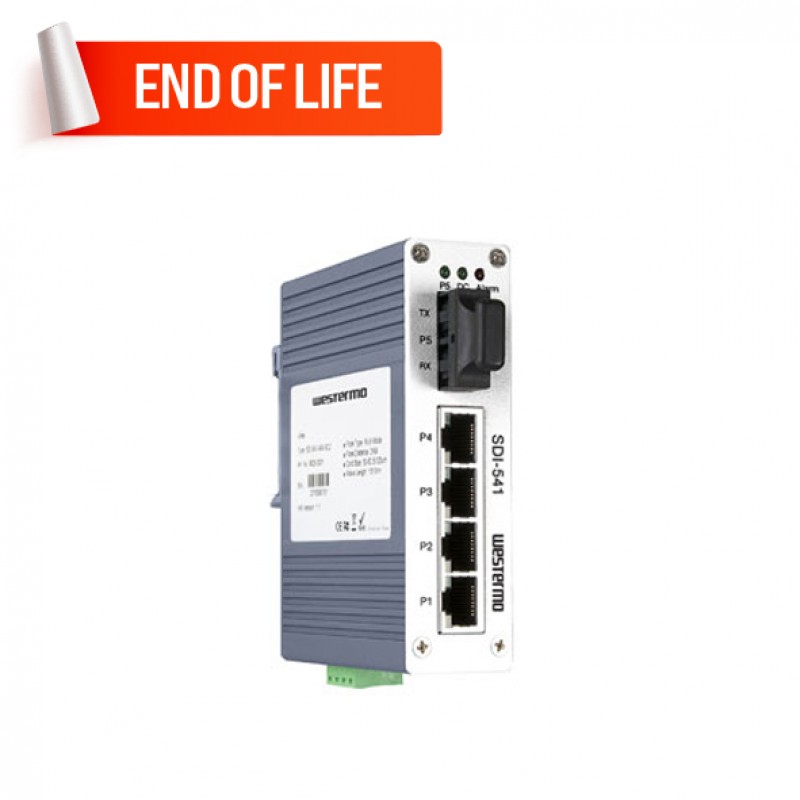

Westermo SDI-541-MM-SC2 Unmanaged Ethernet Switch
- Industrial Compact 4-Port Ethernet Fibre Switch
- 4 x 10/100 Base T(X) Ethernet ports (RJ45 connector)
- 1 x 100 Base F(X) Port (Multi-mode SC connector)
- 2 KM Typical data transmission distance on fiber
- 18 to 32 VDC and 18 to 27 VAC input power range
- IP31-rated Aluminium body material
- DIN-rail mount installation design
- -10 to +60°C operating temperature range
- Brand: WESTERMO
- Product Code: 3625-0001
.png)
Description
The Westermo SDI-541 is an industrial fast Ethernet switch
with four 10/100Base-TX ports and one 100Base-FX port. Two versions are
available, with the SC2 variant capable of data transmission over 2 km with
multi-mode fibre or 30 km by single-mode fibre using the SC30 model. Its
compact IP31-rated aluminum case allows the unit to be fitted into a very small
space on an industry-standard DIN rail.
The Westermo SDI-550 can operate with variable power sources, being able to accept AC 18 ~ 27 V or DC 18 ~ 32 V on a removable connector block. A single relay output is provided to allow port link down events to be indicated, This function is configured by a simple DIP switch. The switch requires no user setup and will immediately start to operate on power up. The 3.22 Gbit/s switch core ensures that no data delay occurs within the switch.
End of Life Product - Replacement Available
Please note that the SDI-541 has been phased out and replaced by the SandCat-2305-F1-MM-T4-LV.
Experience the convenient way to
purchase the Westermo SDI-541-MM-SC2 Unmanaged Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman). Our sales experts will provide the most helpful information about the
price and sale conditions for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| Number of ports | 5 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 4 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 1 SC Port |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | - |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 24 VDC or 18 VAC |
| Operating Voltage | 18 to 32 VDC and 18 to 27 VAC |
| Power Consumption | 4 W at 24 VDC |
| General | |
| Fan / Fanless | Fanless |
| MTBF | - |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1 |
| Switch type | UnManaged |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 30 mm x 111.8 mm x 98.2 mm (with DIN rail clip) |
| Housing | Aluminium |
| Installation | DIN-rail mounting |
| Operating Temperature | -10 to +60°C (-14 to +158°F) |
| Operation Humidity | 0-95% relative humidity |
| Standards and Certifications | Ingress protection: IP31; EMC: EN 55032 Electromagnetic compatability of multimedia equipment - Emission requirements, EN 55035 Electromagnetic compatability of multimedia equipment - Immunity requirements, EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments, FCC part 15 class A |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Weight | 377 g with package, 295 g without package |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | - |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
