Description

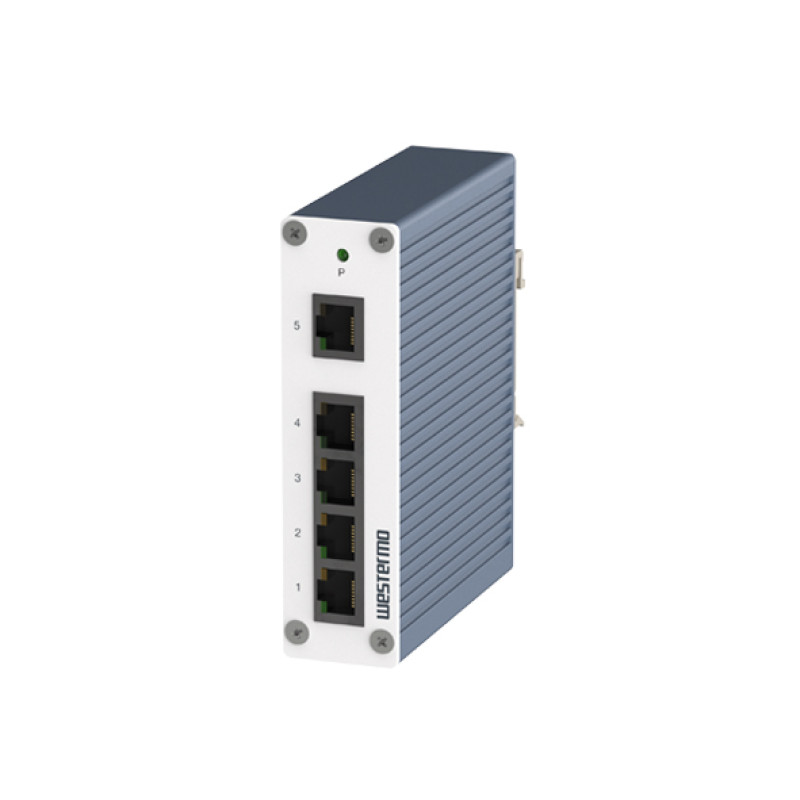

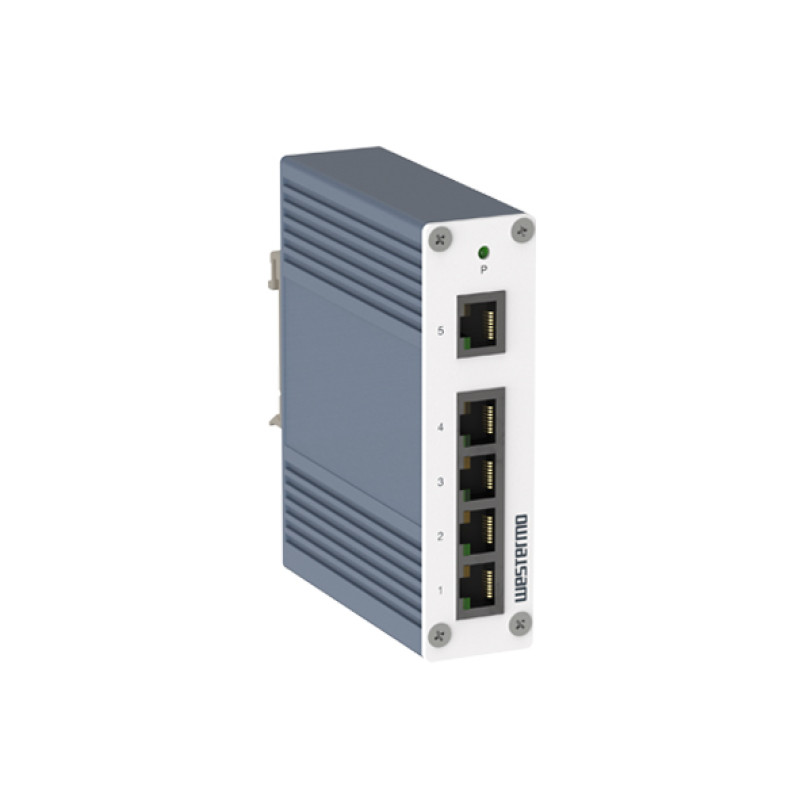

The SandCat-2000 series is designed with robustness and a
long service life in mind. It has an excellent set of industry approvals and
certifications, ensuring its reliability and performance. The devices operate
in a wide temperature range from -40 to +75°C (-40 to +167°F), making them
suitable for harsh industrial environments.
The devices feature a single 10 - 60 VDC wide power input
and a slim industrial design with an IP30 all-metal housing, offering
durability and compactness. They come with software features to ensure full connectivity
and include broadcast storm protection to prevent degrading network
performance.
SandCat-2000 supports Quality-of-Service to prioritize
network traffic and Flow Control to ensure efficient and reliable data
transmission. It is easy to install and use, offering plug-and-play
functionality. The unmanaged switches are transparent to all industry Ethernet
protocols, ensuring compatibility with various devices and networks.
Additionally, the unmanaged switches include diagnostic
LEDs, providing visual indicators of the system’s status and performance. These
mission-critical unmanaged switches are a comprehensive solution for
maintaining robust and reliable network connectivity in critical Fast Ethernet
applications.
You can also find the SandCat-2305-F1-MM-T4-LV and SandCat-2305-F1-SM-T4-LV
models in the Unmanaged Ethernet Switches.
Discover industrial automation solutions appropriate to your
needs, and easily inquire about the Westermo SandCat-2305-T5-LV Unmanaged Ethernet Switch through our user-friendly website via
one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 5 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 5 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.21 A at 24 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 24 VDC |
| Operating Voltage | 10 to 60 VDC |
| Power Consumption | Max 5W |
| General | |
| Fan / Fanless | Fanless |
| MTBF | - |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1 |
| Switch type | Unmanaged |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 30 x 111.4 x 89.4 mm (1.18 x 4.39 x 3.52 inches) without DIN-clip |
| Housing | Metal |
| Installation | DIN-ail Mounting |
| Operating Temperature | -40 to +75 °C (-40 to +167 °F) |
| Operation Humidity | 0-95% relative humidity |
| Standards and Certifications | EMC: EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments; Safety: EN/IEC/UL 62368-1, Audio/video, information and communication technology equipment; IP30 |
| Storage Temperature | -40 to +85 °C (-40 to +185 °F) |
| Weight | 0.35 kg |
| Standards and protocols | |
| Protocols and work standards | |
| Protocols and management standards | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
