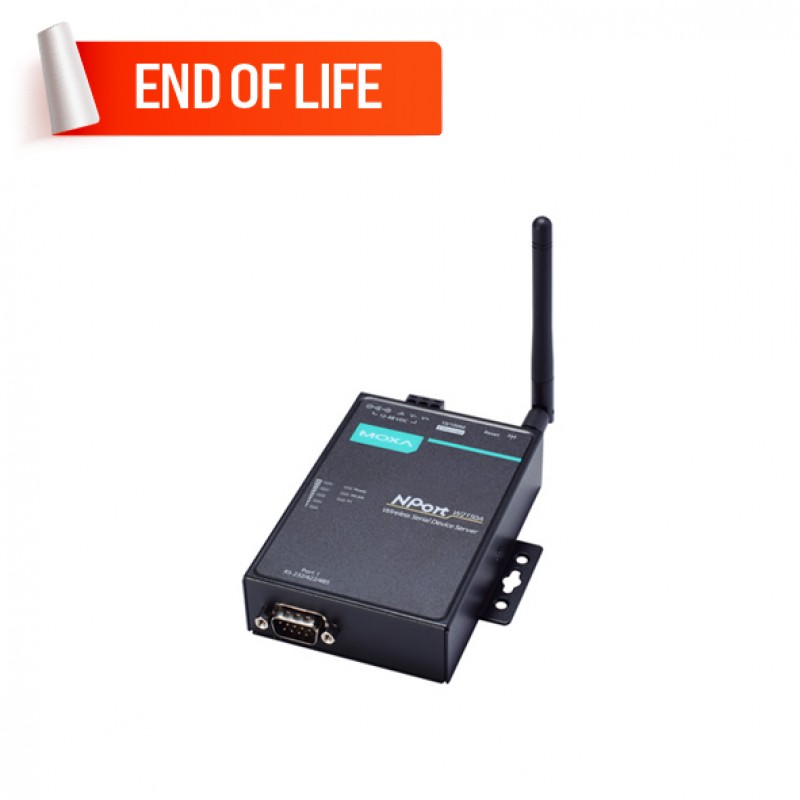

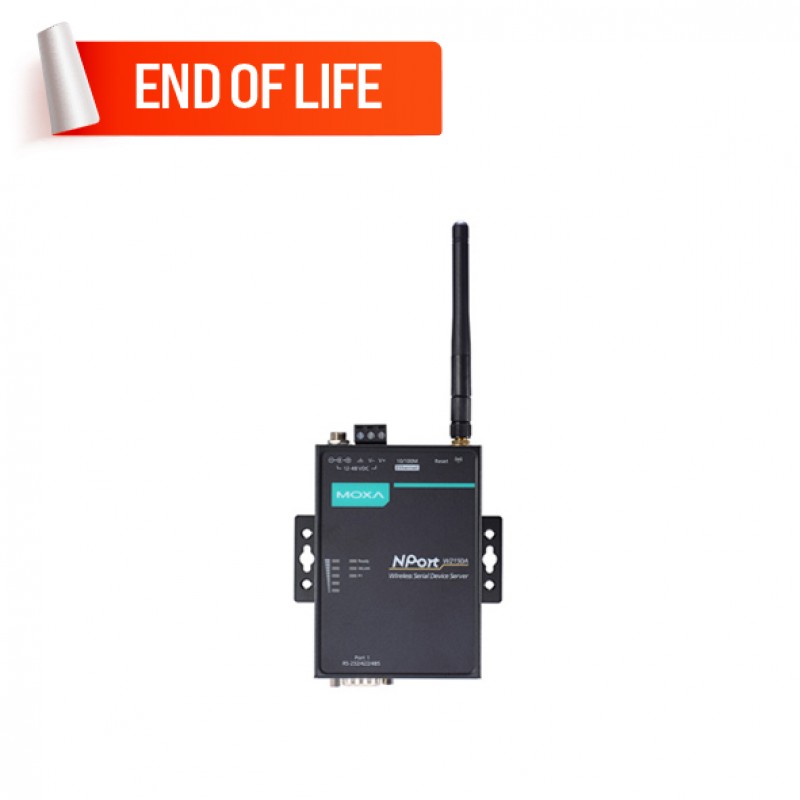

MOXA NPort W2150A-US Serial to Wireless Device Server
- WLAN Channels: Europe bands (EU), (For other Bands like US,
KC,... please contact us)
- Links serial and Ethernet devices to an IEEE 802.11a/b/g/n network
- 1 x 10/100Mbps T(x) ports and 1 x RS-232/422/485 Serial ports
- 12 to 48 VDC input power
- Metal body
- 0 to 55°C operating temperature
Description
The NPort® W2150A and W2250A are the ideal choice for
connecting your serial and Ethernet devices, such as PLCs, meters, and sensors,
to a wireless LAN. Your communications software will be able to access the
serial devices from anywhere over a wireless LAN. Moreover, the wireless device
servers require fewer cables and are ideal for applications that involve
difficult wiring situations. In Infrastructure Mode or Ad-Hoc Mode, the NPort®
W2150A and NPort® W2250A can connect to Wi-Fi networks at offices and factories
to allow users to move, or roam, between several APs (access points), and offer
an excellent solution for devices that are frequently moved from place to
place.
You can also find the NPort W2250A, NPort W2150A-T, and NPort W2150A-T-US models in the Serial-to-Ethernet Converters.
Enjoy the ease of online inquiries for the MOXA NPort W2150A-US Serial to Wireless Device Server. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10Mbps RJ-45 Ports | |
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| RS-232 Ports | |
| RS-422/485 Ports | |
| RS-232/422/485 Ports | : 1 Port |
| Serial port specifications | |
| Serial connection type | DB9-M |
| Serial Communication Parameters | Data Bits: 5, 6, 7, 8; Stop Bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Data transfer speed ( Baudrate ) | 0.05Kps to 921.6kbps |
| Protection against electrostatic discharge | 15KV |
| Electrical isolation | |
| Communication details | |
| Wireless Standards | IEEE 802.11a/g/b, IEEE 802.11i |
| Maximum data transfer speed | 54Mbps |
| Maximum direct range | 100m |
| General | |
| Management | Web Console, Serial Console, Telnet Console, Windows Utility, SNMP MIB-II , NPort Search Utility, NPort Windows Driver Manager |
| MTBF | 383,187 hrs |
| Compatible operating systems | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x |
| Power Requirements | |
| Power Consumption (Output Adapter) | 12V DC, 0.179A to 48V DC |
| Security | |
| Security | WEP, WPA, WPA2, WPA2 |
| Encryption | 128-bit TKIP/AES-CCMP EAP-TLS, PEAP/GTC, PEAP/MD5, PEAP/MSCHAPV2, EAP-TTLS/PAP, EAP-TTLS/CHAP, EAP-TTLS/MSCHAP, EAP-T |
| Features and capabilities | |
| Display | |
| Keyboard | |
| The automatic restart (reset) | : WDT |
| Alarm feature | : RTC |
| Standards and protocols | |
| Network protocol | ICMP, IPv4, TCP, UDP, DHCP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, SNTP, SSH, HTTPS |
| Data transfer protocol | HTTPS, SSH |
| Physical Characteristics | |
| Dimensions | 77x111x26mm |
| EMC | CE, FCC |
| EMI | FCC Part 15 (Subpart B Class A, Subpart C, Subpart E), VCCI |
| EMS | EN 55022 Class A |
| Marine | |
| Medical | |
| radio Physical standard | CE (ETSI EN 301 893, ETSI EN 300 328), ARIB RCR STD-33, ARIB STD-66 |
| LAN port Protection against magnetic fields | 1.5KV |
| Housing | Metal |
| Operating Temperature | 0 to 55 ° C |
| Storage Temperature | -40 to 75 ° C |
| Altitude | 2000m |
| Operation Humidity | 5% to %95 non-condensing |
| Weight | 0.547Kg |
