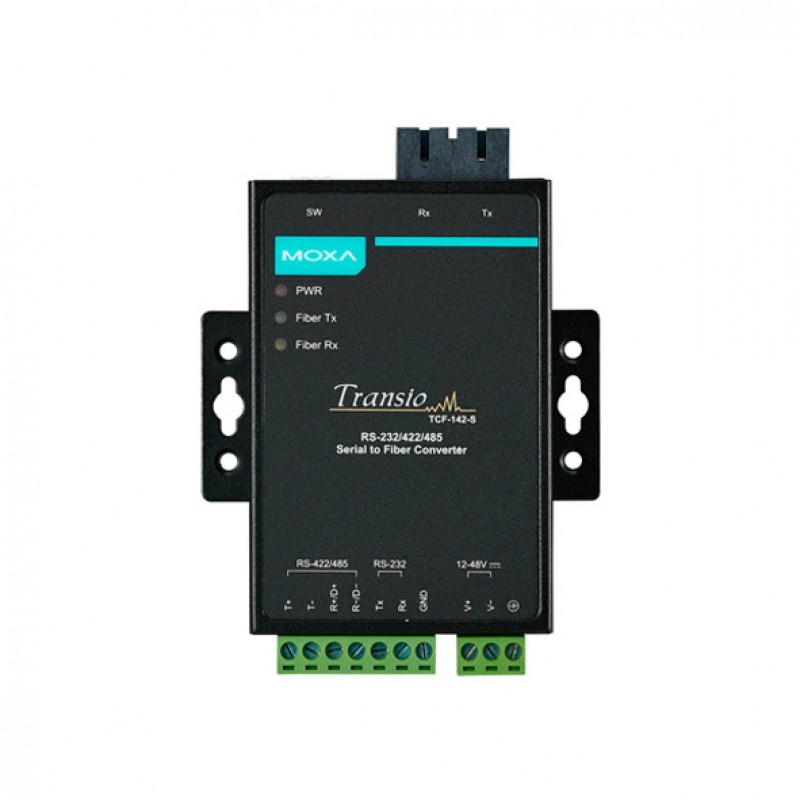

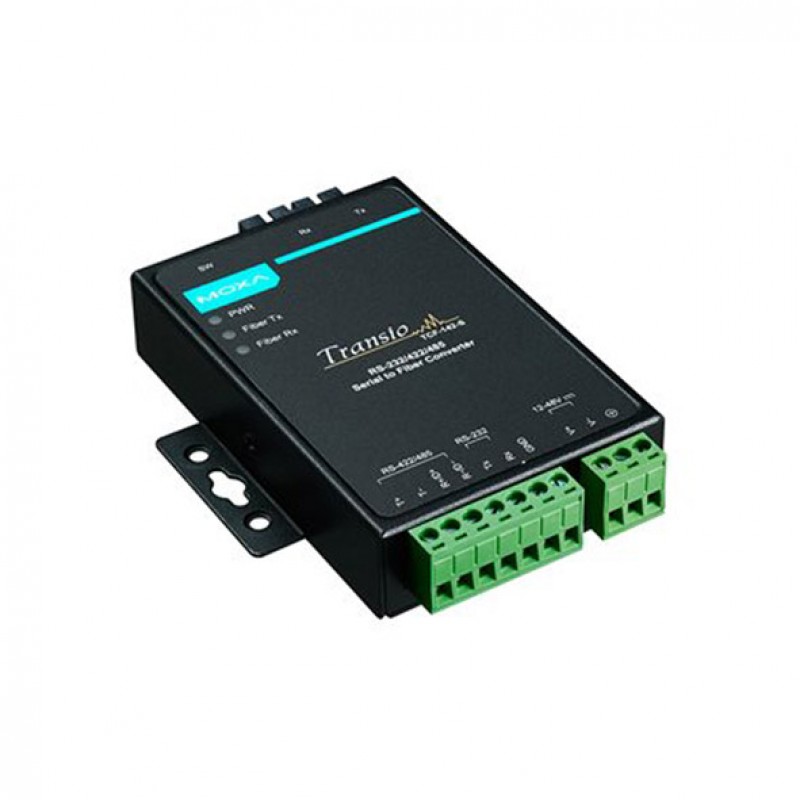

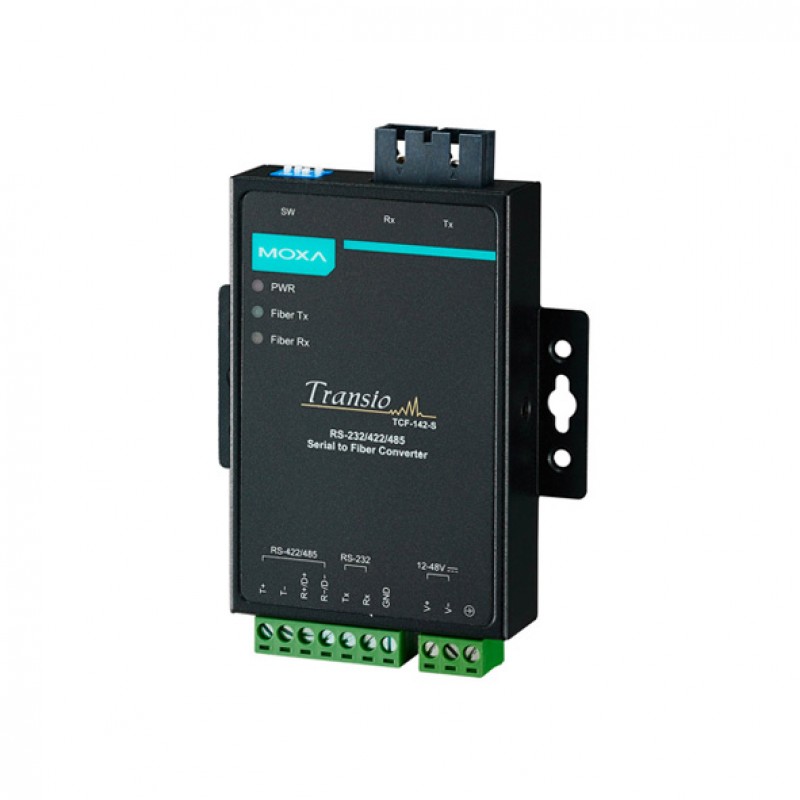

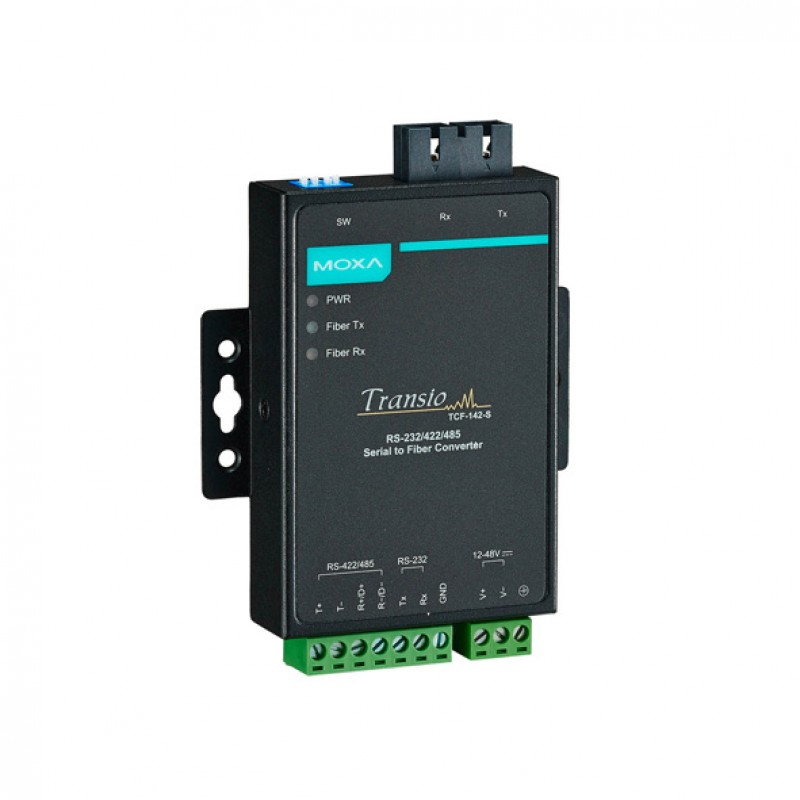

MOXA TCF-142-M-SC Serial to Fiber Converter
- Serial to multi-mode fiber-optic converter
- 1 SC fiber-optic port and 1 RS-232/422/485 serial port
- Power Input 12V DC to 48V DC
- Support for ring topologies or point-to-point
- Brand: MOXA
- Product Code: TCF-142-M-SC
Description
The TCF-142 media converters are equipped with a multiple interface circuit that can handle RS-232 or RS-422/485 serial interfaces and multimode or single-mode fiber. TCF-142 converters are used to extend serial transmission up to 5 km (TCF-142-M with multi-mode fiber) or up to 40 km (TCF-142-S with single-mode fiber). The TCF-142 converters can be configured to convert either RS-232 signals, or RS-422/485 signals, but not both at the same time.
You can also find the TCF-142-M-ST, TCF-142-S-ST, and TCF-142-S-SC models in the MOXA Industrial Media Converters
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA TCF-142-M-SC Serial to Fiber Converter through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Converter specifications | |
|---|---|
| Data transfer speed | 0.05Kbps to 921.6Kbps |
| Maximum data transmission distance | 5Km on fiber |
| Minimum output power converter | -5dBm |
| Sensitivity to receiving information | -20dBm |
| Wavelength | 850nm |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 12V DC, 0.14A |
| Power Input Plugin ( Redundant ) | |
| Standards and protocols | |
| Point-to-point topology | Half-duplex or full-duplex |
| Ring topology | Half-duplex |
| RS-232 Signals | Tx, Rx, GND |
| RS-422 Signals | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| Interface | |
| 10/100Mb RJ45 (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 1 SC Port |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| Number of 10/100Mb PoE port | |
| USB | |
| DSL | |
| Serial port | : 1 RS-232/422/485 Port |
| Other ports | |
| General | |
| Fan / Fanless | - |
| MTBF | 780,480 hour |
| Require cable diameter | 50/125μm, 62.5/125μm, 100/140μm |
| Physical Characteristics | |
| Dimensions | 90x100x22mm |
| Housing | Aluminium |
| Installation | Desktop converter and Din-rail and wall mount |
| Isolation | |
| Operating Temperature | 0 to 60 ° C |
| Operation Humidity | - |
| Operation Humidity | 5% to %95 non-condensing |
| Protection against excessive consumption | : 1.1A |
| Protection against reverse flow | |
| Standards and Certifications | Safety: UL 60950-1; EMC: CE, FCC; EMI : FCC Part 15 Subpart B Class B, EN 55022 Class B; EMS : EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 2, EN 61000-4-4 (EFT) Level 2, EN 61000-4-5 (Surge) Level 2, EN 61000-4-6 (CS) Level 2, EN 61000-4-8 (SFMF) Level 1; Green Product : RoHS, CRoHS, WEEE |
| Storage Temperature | -40 to 75 ° C |
| Weight | 0.32Kg |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
