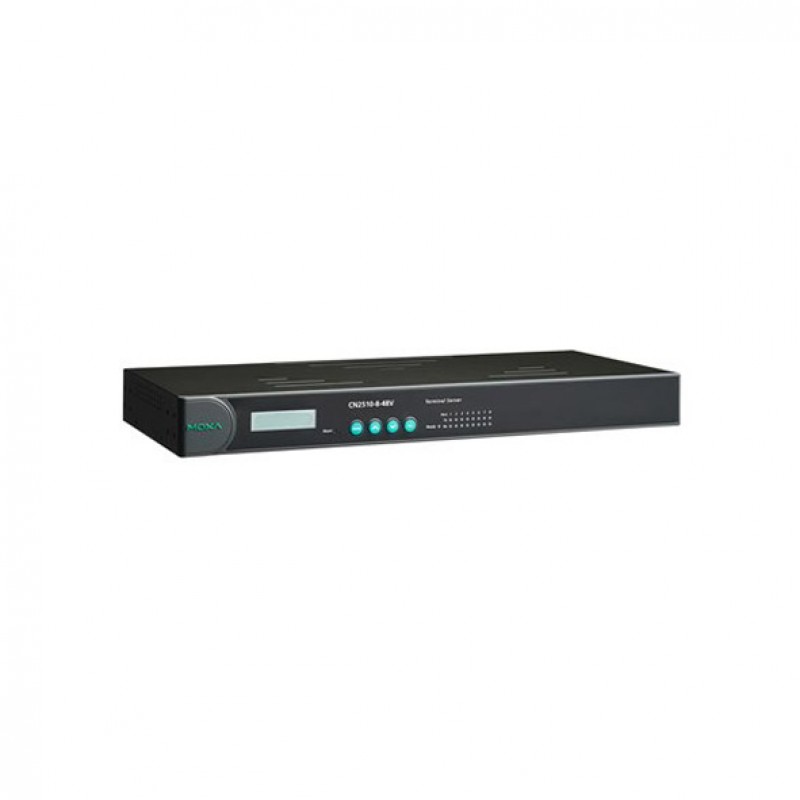

MOXA CN2510-8 Terminal Server
- LCD control panel for easy on-site management
- Supports up to 16 dial-in users when operating as a the standalone remote access server
- Supports PPP/SLIP with RADIUS authentication and RIP I/II routing protocols
- Real COM/TTY drivers for Windows and Linux
- 48 VDC for telecom applications (for CN2510-8/16-48V)
For most companies, the performance of IT equipment is
critical to daily operations. To keep a server, router, PBX, or leased-line
modem working properly, it is important to minimize downtime and troubleshoot
faulty devices quickly. KVM is commonly used for in-band management of devices
that are equipped with a screen and keyboard. However, RS-232 console access is
often used as a last resort for all devices.
Remote Console Management
The CN2510 provides an easy console management solution in a
convenient 1U rackmount package. With its RS-232 ports, connections are easily
established to the console ports of network equipment, such as UNIX servers or
routers, for centralized management of the attached devices. Each device’s
RS-232 console port becomes a network-accessible node, giving users Telnet
access from anywhere on the network for configuration and management of the
device. Full modem control signals are supported, ensuring compatibility with a
wide range of serial peripherals.
It is very important that access is strictly controlled in a
console management solution and user privileges should be validated before a
console port connection is allowed. The CN2510’s authentication procedure
involves verifying the username and password against an internal database or a
When a dial-up connection is used for out-of-band management, the CN2510 provides a convenient dial-back function. Instead of accepting a connection request directly, the CN2510 calls back the management host to establish the connection. The dial-back function helps ensure that only registered users or hosts can remotely connect to the network through the CN2510, and helps to minimize long-distance phone costs.
Easy World Automation offers the easiest way to buy the MOXA CN2510-8 Terminal Server and all MOXA Serial-to-Ethernet Converters in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
|No. of Ports
|1 x 10/100BaseT(X) Ports (RJ45 connector)
|No. of Ports
|50 bps to 921.6 kbps
|5, 6, 7, 8
|1, 1.5, 2
