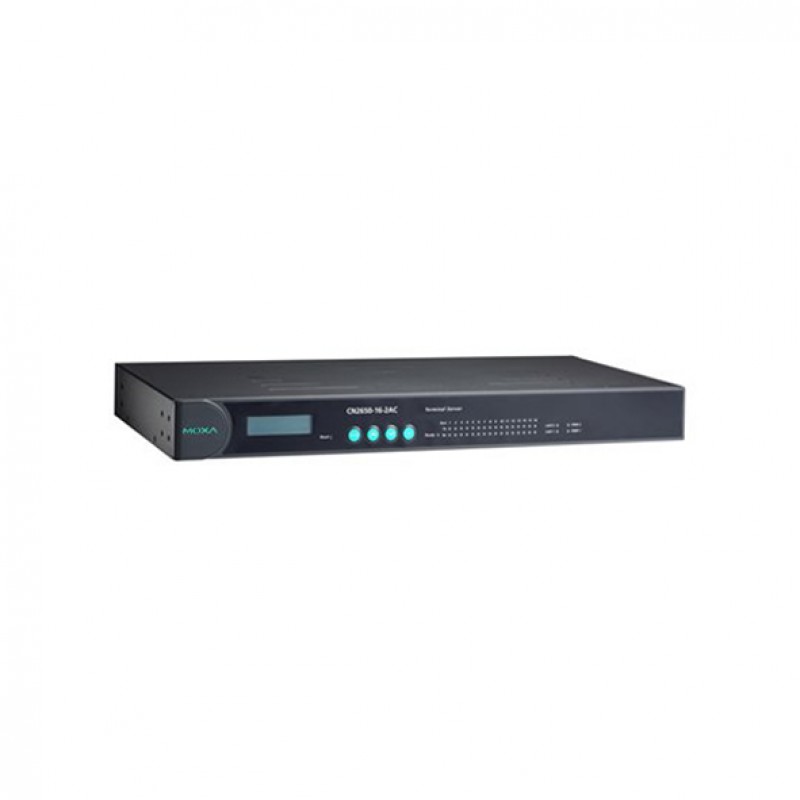

MOXA CN2610-16 Terminal Server
- LCD panel for easy IP address configuration (excluding wide-temperature range models)
- Dual-LAN cards with two independent MAC addresses and IP addresses
- Redundant COM function available when both LANs are active
- Dual-host redundancy can be used to add a backup PC to your system
- Dual-AC-power inputs (for AC models only)
- Real COM/TTY drivers for Windows and Linux
- Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
- Brand: MOXA
- Product Code: CN2610-16
Description
Redundancy is an important issue for industrial networks,
and various types of solutions have been developed to provide alternative
network paths when equipment or software failures occur. “Watchdog” hardware is
installed to utilize redundant hardware, and a “Token”- switching software
mechanism is applied. The CN2600 terminal server uses its built-in Dual-LAN
ports to implement a “Redundant COM” mode that keeps your applications running
uninterrupted.
Dual-LAN Redundancy
The CN2600 has two separate LAN ports that can be connected
to separate LAN networks. Dual-LAN redundancy involves setting up two separate
physical networks to connect the PC host with the CN2600 (the PC host also
requires two LAN cards). If one connection fails, the PC host can still
communicate with your serial devices over the alternative LAN connection.
Redundant COM
Moxa offers “Redundant COM,” an easy-to-use application to
provide an alternative solution for network redundancy. When the CN2600
receives a data packet from a connected device, two identical data packets are
sent over two independent LAN connections to prevent lost data packets if one
LAN connection becomes unavailable. The CN2600 software is programmed to
automatically discard duplicate data packets.
Dual-host Redundancy
The CN2600’s dual-LAN cards can also be used to set up
“dual-host” redundancy. In this case, both networks (LAN A and LAN B in the
figure) are connected to two different hosts. If either of the two hosts shuts
down unexpectedly, the other host will still be able to communicate with serial
devices connected to the CN2600.
Dual-AC Model Supported
Dual-power redundancy uses two power inputs and redundant internal power supplies to ensure that all of the CN2600’s functions will be available, even in the event of power circuit failures.
You can place an order for the MOXA CN2610-16 Terminal Server online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
ETHERNET INTERFACE | |
---|---|
No. of Ports | 2 x 10/100BaseT(X) Ports (RJ45 connector) |
SERIAL INTERFACE | |
Flow Control | RTS/CTS, DTR/DSR, XON/XOFF, None |
No. of Ports | 16 |
Connector | 8-pin RJ45 |
Serial Standards | RS-232 |
Operation Modes | Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Terminal mode, Reverse Telnet mode, PPP mode, DRDAS mode, Redundant COM mode, Disabled |
Baudrate | 50 bps to 921.6 kbps |
Data Bits | 5, 6, 7, 8 |
Stop Bits | 1, 1.5, 2 |
Parity | Even, Odd, Space, Mark, None |
POWER PARAMETERS | |
Input Current | 130 mA @ 110 VAC |
Input Voltage | 100 to 240 VAC, 47 to 63 Hz |
PHYSICAL CHARACTERISTICS | |
Housing | Metal |
Installation | 19-inch rack mounting |
Dimensions | 480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
MTBF | 639,332 hrs |
Standards and Certifications | EMC, EMI, EMS, Safety, Vibration, Freefall, RoHS, CRoHS, WEEE |
