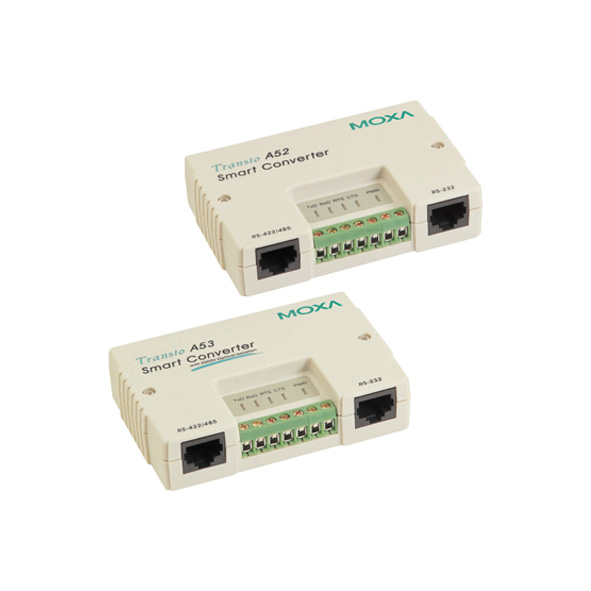

MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter

  • ADDC™ (Automatic Data Direction Control) RS-485 data control
  • Automatic baudrate detection
  • RS-422 hardware flow control: CTS, RTS signals
  • LED indicators for power and signal status
  • RS-485 multidrop operation, up to 32 nodes
  • Built-in 120-ohm termination resistors

  • Brand: MOXA
  • Product Code: A52-DB9F w/o Adapter

Description

The A52 and A53 are general RS-232 to RS-422/485 converters designed for users who need to extend the RS-232 transmission distance and increase networking capability.


You can also find the A52-DB9F w/ Adapter and A53-DB9F w/ Adapter models in the Industrial Media Converters.


Inquire about the MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter, designed for industrial automation solutions. Feel free and get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

RS-232 port specifications
Serial connection type RJ-45
Signal Tx, Rx, DTR, DSR, RTS, CTS, DCD, GND
RS-422/RS-485 port specifications
Serial connection type RJ-45 and 5 terminal inputs
Signal TxD+, TxD-, RxD+, RxD-, GND, Data+, Data-, GND
RS-485 Flow Control ADDC, RTS, CTS
Converter Specifications
Data transfer speed ( Baudrate ) 0.05Kbps to 230.4Kbps
Protection against electrostatic discharge 25KV
Electrical isolation
Power Requirements
Type of power input 2 terminal input
Input Power 9V AC to 30V AC, 0.35A
Power Consumption 9V DC, 0.17A
Protection against reverse voltage
Protection against overflow : Protection against two short signals
Physical Characteristics
Dimensions 90x60x21mm
Standards and Certifications FCC Class A, CE Class A
Housing ABS
Operating Temperature 0 to 55 ° C
Storage Temperature -20 to 75 ° C
Operation Humidity 5% to %95 RH non-condensing
Weight 0.085Kg
