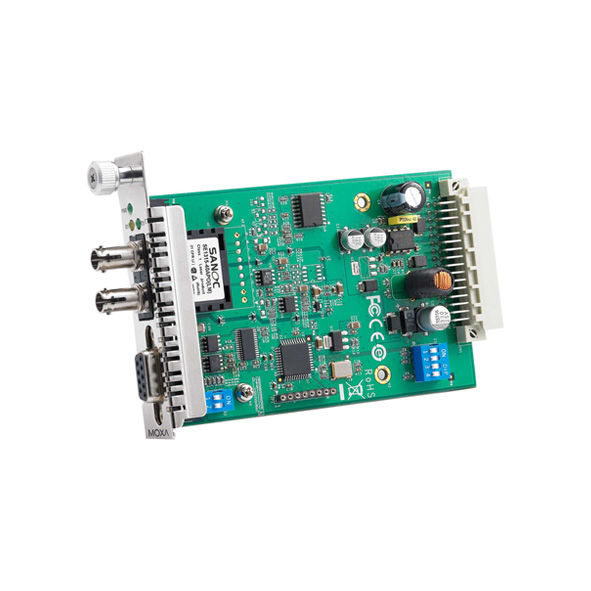

Name: MOXA TCF-142-S-ST-RM Serial to Fiber Slide-in Module
Brand: MOXA
Availability: InStock

MOXA TCF-142-S-ST-RM Serial to Fiber Slide-in Module

2 x RS-232/422/485 Serial ports
1 x 100BaseFX single-mode (ST connector)
40 km Data transmission typical distance on fiber
IP30-rated Metal body design
0 to 60°C operating temperature

Brand: MOXA
Model: TCF-142-S-ST-RM

0 reviews • Write a review

Datasheet

Operating Temperature (0 to 60°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)
Vibration (IEC 60068-2-6)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Serial Converters , Serial-to-Fiber Converters , Serial to Fiber Slide-in Module , Slide-in Modules , Industrial Converters , Industrial Media Converters , Industrial Serial Connectivity , Serial Media Converters , Converters , Modules , MOXA TCF-142-RM Series

The TCF-142-RM Series slide-in modules are serial-to-fiber converters that work with the TRC-190 chassis. The modules convert from the RS-232, RS-422, or RS-485 signal to a fiber-optic signal.

Automatic Baudrate Detection

The TCF-142-RM Series can automatically detect the serial baud rate. This is an extremely convenient feature. Even if a device’s baud rate is changed, the signal will still be transmitted through the media converter without any problem.

You can also find the TCF-142-M-SC-RM, TCF-142-M-ST-T, and TCF-142-S-SC-T models in the Industrial Media Converters.

Inquire about the MOXA TCF-142-S-ST-RM Serial to Fiber Slide-in Module, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

converter : Interface
100Mb Fiber optic single mode (Megabit) Ports	Yes : 1 ST Port
100Mb Fiber optic multi mode (Megabit) Ports	No
Serial port	Yes : 2 x RS-232/422/485
USB	No
Other ports	No
Isolation	No
converter : Converter specifications
Data transfer speed ( Baudrate )	50 bps to 921.6 kbps (supports non-standard baudrates)
Maximum data transmission distance	40Km on fiber
Minimum output power converter	-5dBm
Sensitivity to receiving information	-25dBm
Wavelength	1310 nm
Require cable diameter	G.652
Flow Control	ADDC® (automatic data direction control) for RS-485
Protocols	-
converter : Serial Signals
RS-232 Signals	TxD, RxD, GND
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals	Data+, Data-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
converter : Power Requirements
Power Consumption (Output Adapter)	150 mA @ 12 VDC
Power Input Plugin ( Redundant )	No
Overload Current Protection	Supported
Reverse Polarity Protection	No
Input Voltage	-
Input Current	150 mA @ 12 VDC
Connector	Terminal block
converter : General
Fan / Fanless	-
MTBF	514,926 hrs
converter : Physical Characteristics
Dimensions	86.8 x 136.5 x 21 mm (3.42 x 5.37 x 0.83 in)
Housing	Metal
Installation	-
Operating Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, IEC 60950-1; Vibration: IEC 60068-2-6
Storage Temperature	-20 to 75°C (-4 to 167°F)
Weight	105 g (0.23 lb)
converter : LED Indicators
LED Per Port	Yes
Power	Yes
