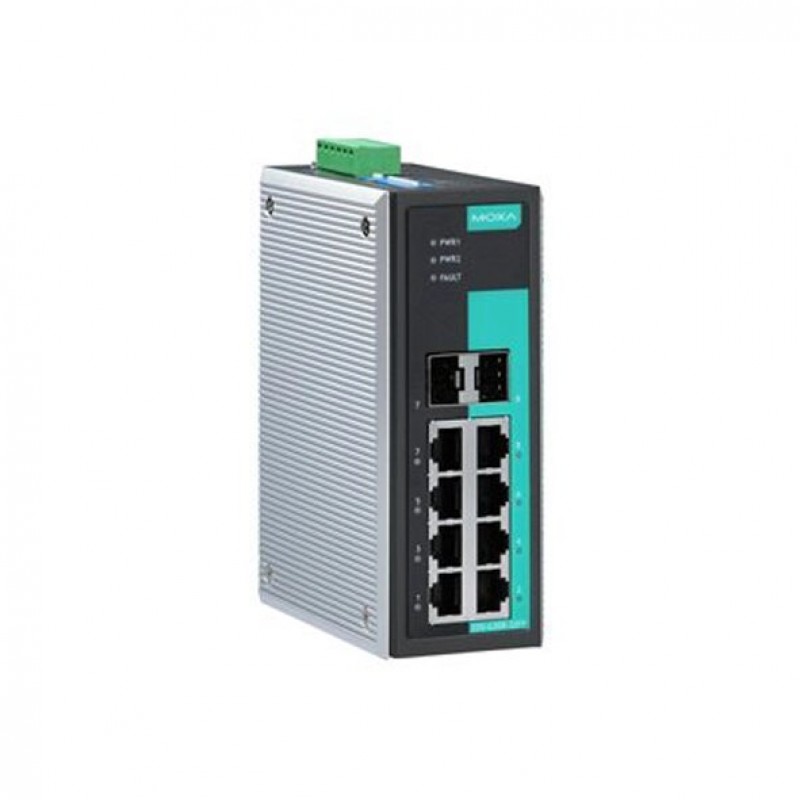

MOXA EDS-G308-2SFP-T Unmanaged Ethernet Switches

  • 6 x 100/1000Mbps ports (RJ45 connector)
  • 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
  • DIN-rail and Wall mounting
  • IP30-rated metal housing
  • 12/24/48 VDC Redundant dual power inputs
  • -40 to 75°C operating temperature

Description

The EDS-G308 switches are equipped with 8 Gigabit Ethernet ports and 2 fiber-optic ports, making them ideal for applications that demand high bandwidth. The EDS-G308 switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application. A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.


You can also find the EDS-G308-2SFP, EDS-G308, and EDS-G308-T models in the DIN-Rail Ethernet Switches.


You can Buy the MOXA EDS-G308-2SFP-T Unmanaged Ethernet Switches via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

Interface
Number of ports 8 Ports
10/100Mb RJ45 (Megabit) Ports
10/100/1000Mb RJ45 (Gigabit) Ports : 6 Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports
10/100Mb (Megabit) POE Ports
10/100/1000Mb (Gigabit) POE Ports
Other ports : 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+), 1 x Alarm Contact Channel
Features and capabilities
Backup
LED Indicators
LED Per Port
Power Requirements
Input Current 0.9 A @ 12-48 VDC
Power Input Plugin ( Redundant )
Input Voltage 12/24/48 VDC
Operating Voltage 9.6 to 60 VDC
Power Consumption -
General
Fan / Fanless Fanless
MTBF 2,260,195 hrs
Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type UnManaged
Port Aggregation
Physical Characteristics
Dimensions 52.85 x 135 x 105 mm (2.08 x 5.31 x 4.13 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 508, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m, IEC 61000-4-3 RS: 800 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF: 100 A/m; Hazardous Locations: ATEX, Class I Division 2; Railway: EN 50121-4; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Maritime: DNV, LR, ABS, NK; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 880 g (1.94 lb)
Standards and protocols
Protocols and work standards -
Protocols and management standards -
Package Checklist
Hardware installation guide
Power adapter
Power cable
