Description

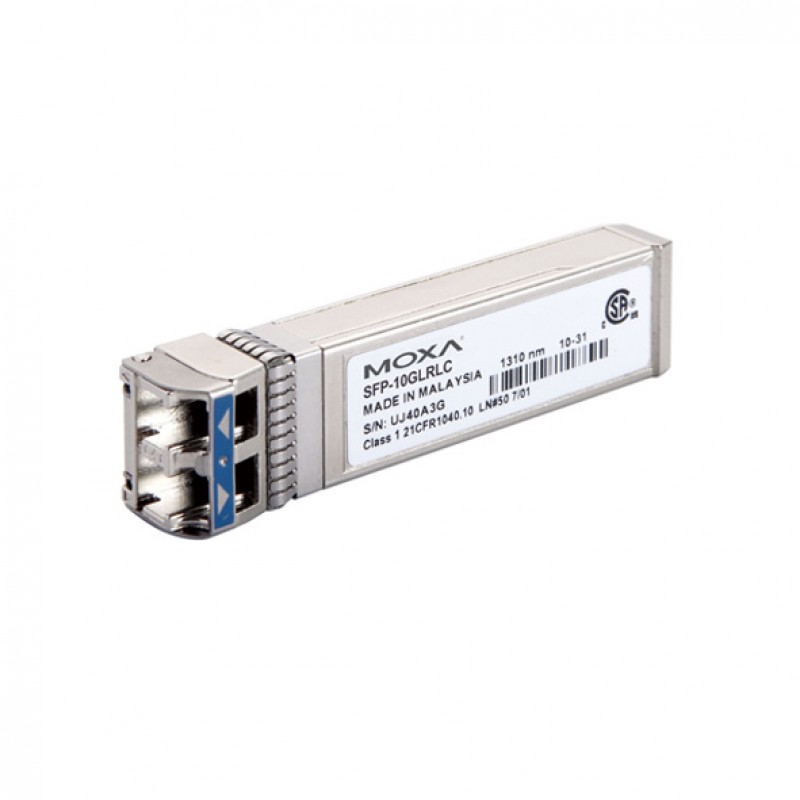

The SFP-10G Series 1-port 10 Gigabit Ethernet SFP+ modules
are available as optional accessories for a wide range of Moxa switches.
You can also find the SFP-10GERLC-T, SFP-10GLRLC-T, and SFP-10GSRLC-T models in the Ethernet SFP Modules.
You can explore our wide range of
products and enquire about the MOXA SFP-10GZRLC-T 10 Gigabit Ethernet SFP+ Module for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| INTERFACE | |
|---|---|
| Ports | 1 x 10GBase-ZR (single-mode) |
| Connector | Duplex LC |
| Typical Distance | 80 KM |
| POWER REQUIREMENTS | |
| Power Information | Power Consumption: Max. 2.5 W |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | - |
| Weight | - |
| Operating Temperature | -40 to 85°C (-40 to 185°F), Note: When using the SFP-10GZRLC-T with the ICS-G7526A/G7528A/G7826A/G7828A and the MDS-G4000-4XGS/MDS-G4000-L3-4XGS Series, the maximum temperature is -10 to 60°C (14 to 140°F). |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 62368-1, IEC 62368-1, IEC 60825-1; EMC: EN 55032/35; EMI: FCC 15B Test Report, ICES-003: 2020 Issue 7; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV/2 kV(AC), 0.5 kV(DC); Signal: 1 kV, IEC 61000-4-6 CS: 0.15 MHz to 10 MHz: 3 V, 10 MHz to 30 MHz: 3 to 1 V, 30 MHz to 80 MHz: 1V., IEC 61000-4-8 PFMF: 1 A/m at 50 Hz, IEC 61000-4-11: Voltage Dips & Interruption |
| MTBF | - |
