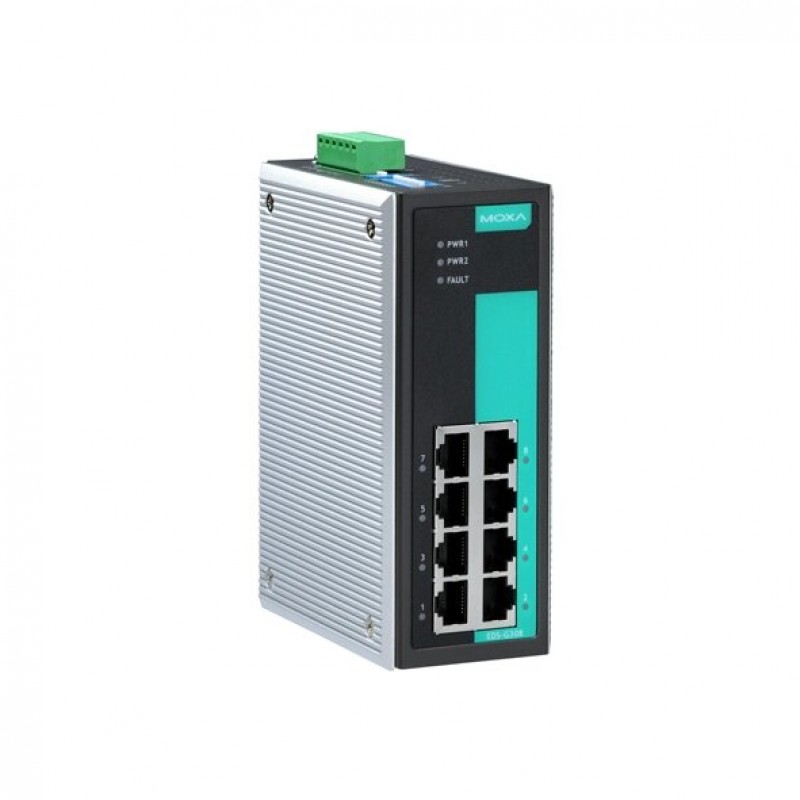

Name: MOXA EDS-G308 Unmanaged Ethernet Switches
Brand: MOXA
Availability: OutOfStock

MOXA EDS-G308 Unmanaged Ethernet Switches

8 x 100/1000Mbps ports (RJ45 connector)
DIN-rail and Wall mounting
IP30-rated metal housing
12/24/48 VDC Redundant dual power inputs
-10 to 60°C operating temperature

Brand: MOXA
Model: EDS-G308

0 reviews • Write a review

Datasheet User Guide

Relative Humidity (5 to 95% non-condensing)
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
IP protection (IP30)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)
Operating Temperature (-10 to 60°C)

Oil & Gas
Factory Automation
Marine
Railway Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

Beijer BFI-E3-14-0041-3F1Y Frequency inverter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Beijer BFI-E3-24-0041-3F42 Frequency inverter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Beijer BoX2 base protocol converter-IoT gateway-edge controller

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Beijer BoX2 extreme protocol converter-IoT gateway-edge controller

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Data Communications , Industrial Ethernet Switches , Factory Automation Products , DIN-Rail Ethernet Switches , Oil & Gas Products , Railway Transportation Products , Marine Products , Switches , MOXA EDS-G308 Series

The EDS-G308 switches are equipped with 8 Gigabit Ethernet ports and 2 fiber-optic ports, making them ideal for applications that demand high bandwidth. The EDS-G308 switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application. A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.

You can also find the EDS-G308-2SFP-T, EDS-G308-2SFP, and EDS-G308-T models in the DIN-Rail Ethernet Switches.

You can explore our wide range of products and enquire about the MOXA EDS-G308 Unmanaged Ethernet Switches for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

switch and hub : Interface
Number of ports	8 Ports
10/100Mb RJ45 (Megabit) Ports	No
10/100/1000Mb RJ45 (Gigabit) Ports	Yes : 8 Ports
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	Yes : 1 x Alarm Contact Channel
switch and hub : Features and capabilities
Backup	No
switch and hub : LED Indicators
LED Per Port	Yes
switch and hub : Power Requirements
Input Current	0.8 A @ 12-48 VDC
Power Input Plugin ( Redundant )	Yes
Input Voltage	12/24/48 VDC
Operating Voltage	9.6 to 60 VDC
Power Consumption	-
switch and hub : General
Fan / Fanless	Fanless
MTBF	2,398,736 hrs
switch and hub : Switch specifications
Most forwarding speed	-
Network working layers	Layer 1
Switch type	UnManaged
Port Aggregation	No
switch and hub : Physical Characteristics
Dimensions	52.85 x 135 x 105 mm (2.08 x 5.31 x 4.13 in)
Housing	Metal
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature	-10 to 60°C (14 to 140°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	Safety: UL 508, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m, IEC 61000-4-3 RS: 800 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF: 100 A/m; Hazardous Locations: ATEX, Class I Division 2; Railway: EN 50121-4; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Maritime: DNV, LR, ABS, NK; IP30; Telcordia (Bellcore), GB
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	880 g (1.94 lb)
switch and hub : Standards and protocols
Protocols and work standards	-
Protocols and management standards	-
switch and hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No

Datasheet User Guide
