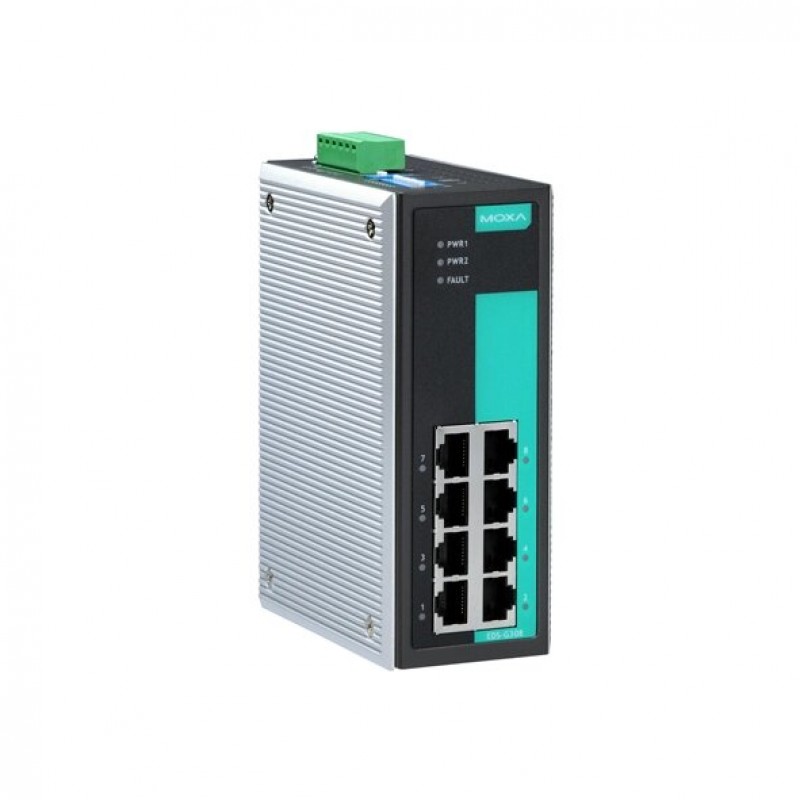

MOXA EDS-G308-T Unmanaged Ethernet Switches
- 8 1000Mbps ports
- Din-rail
- Metal body
- Suitable for work in a wide range of temperatures
- Brand: MOXA
- Product Code: EDS-G308-T
.png)
Description
The EDS-G308 switches are equipped with 8 Gigabit Ethernet ports and 2 fiber-optic ports, making them ideal for applications that demand high bandwidth. The EDS-G308 switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application. A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.
You can also find the EDS-G308-2SFP, EDS-G308-2SFP-T, and EDS-G308 models in the DIN-Rail Ethernet Switches.
Explore our extensive range of
industrial automation products such as MOXA EDS-G308-T Unmanaged Ethernet Switches in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 8 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Prots | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 24V DC, 0.32A |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | |
| MTBF | 325000 hour |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1 |
| Switch type | UnManaged |
| Port Aggregation | - |
| Physical Characteristics | |
| Dimensions | 53.6x135x105mm |
| Housing | Metal |
| Installation | Din-rail |
| Operating Temperature | -40 to 75 ° C |
| Operation Humidity | 5% to %95 RH non-condensing |
| Standards and Certifications | FCC, UL/cUL Class 1 Div.2, ATEX Zone 2, DNV, GL, LR, ABS, NK, IP30 |
| Storage Humidity | - |
| Storage Temperature | -40 to 85 ° C |
| Weight | 0.63Kg |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3x for Flow Control |
| Protocols and management standards | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
