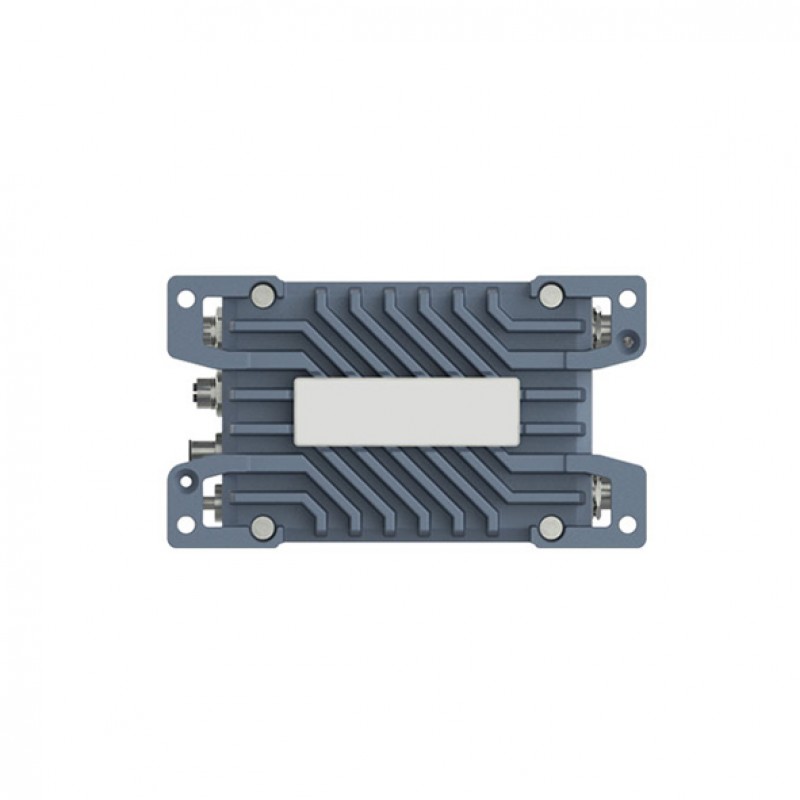

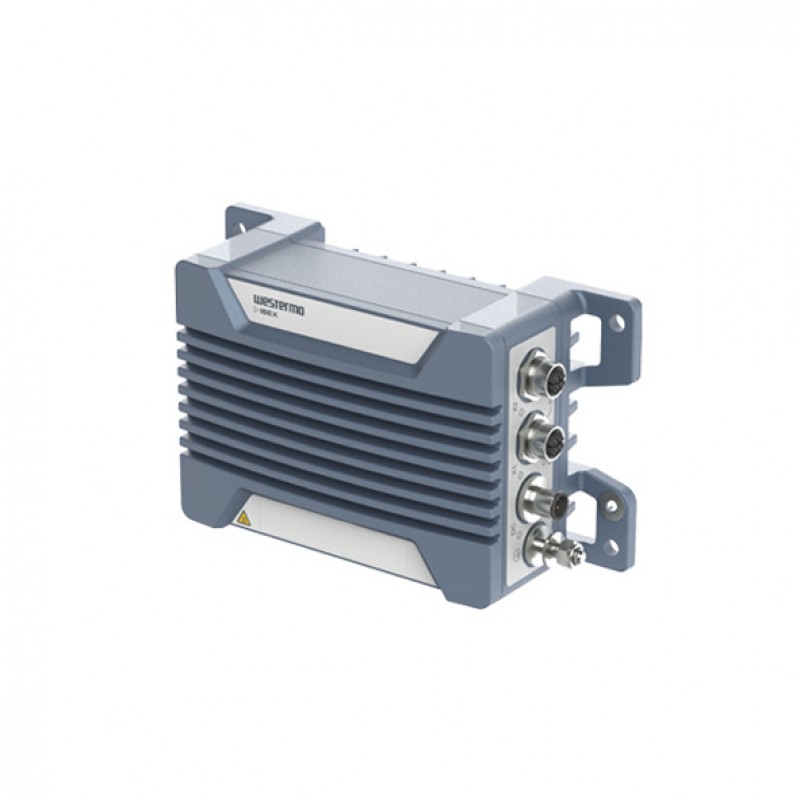

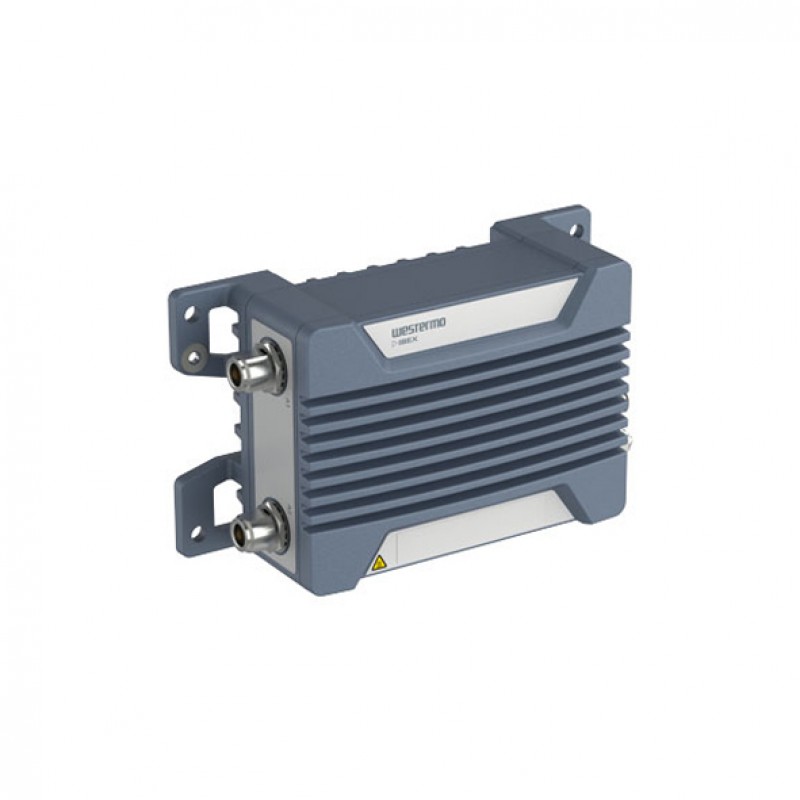

Westermo Ibex-1310-T2G2.5-PoE EU Industrial Wi-Fi 6 Access Point
- Supports Europe Frequency Bands
- Dual Wi-Fi 6 802.11ax WLAN interfaces
- 2 x 10/100/1000/2.5G Base-T Ethernet ports (M12 connector)
- IEEE 802.11ax support for maximum efficiency
- PoE Class 4 (IEEE 802.3at type 1 and 2 PD)
- IP66-rated Metal body design
- -40 to +70°C operating temperature range
.png)
Description
The Ibex-1310 is a concurrent dual-band 802.11ax WLAN access
point and client product for industrial vehicle and stationary applications.
Ibex-1310 provides reliable efficient high-speed data transfers with the latest cyber
security features. The Ibex-1310 is designed to withstand tough
environments, exposed to constant vibration, extreme temperatures, humidity,
and demanding electromagnetic environments. It is also approved for use in
vehicles, such as buses.
A GORE-TEX® membrane prevents internal condensation.
High-level isolation between all interfaces enables direct connectivity to
vehicle auxiliary power and protects against overvoltage and spikes/surges. IP66
protection prevents the ingress of water. N-type connectors provide industry
industry-standard interface to external antennas.
An overall optimized design results in a compact form factor
in combination with very high MTBF for easy integration in space-restricted
installations and low lifecycle cost. Thorough type testing at independent labs
certifies compliance with a wide range of standards, including EN 50121-4. Ibex-1310
is running Westermo's robust and easy-to-use SW6 operating system with the latest
cybersecurity features and updates.
You can also find the Ibex-1310-T2G2.5 NA, Ibex-1310-T2G2.5 EU, and Ibex-1310-T2G2.5-PoE NA models in the WLAN.
Experience the convenient way to purchase the Westermo Ibex-1310-T2G2.5-PoE EU Industrial Wi-Fi 6 Access Point in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.
Specification
| Interfaces | |
|---|---|
| 10/100/1000BaseT(X) Ports | : 2 x 10/100/1000/2.5G Base-T Ports, 2 x M12 X-coded connectors |
| Modulation Type | - |
| Frequency Band | 2.400 to 2.4835 GHz (2x2 MU-MIMO), 5.150 to 5.350 GHz, 5.470 to 5.725 GHz, 5.725 to 5.875 GHz (2x2 MU-MIMO) |
| PoE Ports | |
| 100BaseFX Ports | |
| Wireless Security | WPA2-Personal (CCMP), WPA2-Enterprise, WPA3-Personal (SAE/OWE), WPA3-Enterprise (Suite-B), 802.11w, 802.1X, SecureBoot (TPM), Security Log (persistent) |
| WLAN Antenna Connector | 2 x N-type connector for Wi-Fi 6 |
| Security | VPN: SSL Server/Client, IPsec, OpenVPN Client, Wireguard, GRE/GRETAP, VXLAN |
| WLAN Operation Mode | Access Point, Client, Bridge |
| WLAN Standards | IEEE 802.11g, 802.11a, 802.11n, 802.11ac, 802.11ax |
| 1000BaseSFP Slots | |
| Transmission Rates | 2.4 GHz: Up to 802.11ax 40 MHz 2SS BW HE11: 573 MBit/s, 5 GHz: Up to 802.11ax 80 MHz 2SS BW HE11: 1201 MBit/s |
| 10/100BaseT(X) Ports | |
| Digital Inputs | |
| Console Port | |
| Serial Ports | |
| M12 Connector | |
| Power Requirement | |
| Input Current | - |
| Connector | - |
| Input Voltage | PoE Class 4 (IEEE 802.3at type 1 and 2 PD) |
| Power Consumption | - |
| Reverse Polarity Protection | - |
| Physical Characteristics | |
| Humidity | - |
| Dimensions Packaged | 195 x 70 x 111 mm (7.68 x 2.76 x 4.37 inches) |
| Weight (PACKAGED) | 1.45 kg without antennas |
| Housing | Full metal |
| Installation | - |
| Standards and Certifications | Ingress protection: IP66; Climate: EN 60068-2 [-1, -2, -30], Environmental testing of electronic equipment; EMC: EN 50121-4, Railway applications - Electromagnetic compatibility. Part 4: Emission and immunity of the signalling and telecommunications apparatus, EN/IEC 61000-6-1, Immunity residential environments, EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-3, Emission residential environments, EN/IEC 61000-6-4, Emission industrial environments, ETSI EN 301 489-1, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 1: Common technical requirements, ETSI EN 301 489-17, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment - Part 17: Specific conditions for Broadband Data Transmission Systems; Mechanical (Shock and vibration): EN 50125-3, Outside the track; Radio communication: ETSI EN 300 328, Wideband transmission systems; Data transmission equipment operating in the 2.4 GHz ISM band and using wide band modulation techniques, ETSI EN 301 893, 5 GHz RLAN, ETSI EN 300 440, 5.8GHz, Short Range Devices, IEEE802.11, Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications, FCC-47-15, Radio frequency devices; Safety: EN/IEC 62368-1, Safety Requirements for audio/video, information and communication technology equipment |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Storage Temperature | - |
| General | |
| Management | SNMP v2c/v3 with USM authentication and encryption support, HTTP/HTTPS web interface and WebAPI with user authentication (local or LDAP), CLI (SSH and Telnet), Certificate Management (SCEP) |
| LED Indicators | : Status |
| MTBF | 538,000 hours |
| Time Management | - |
