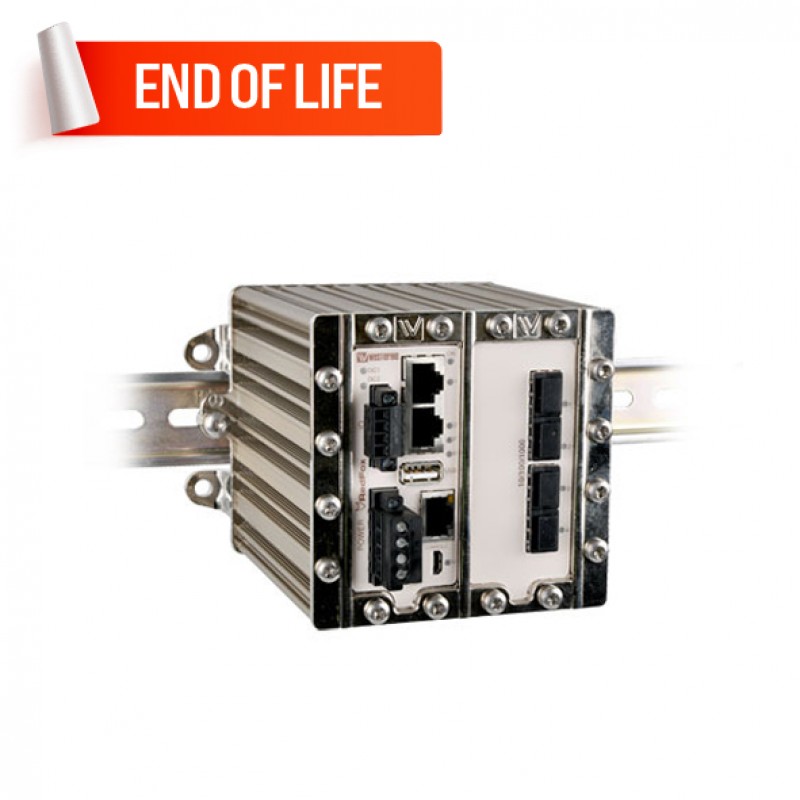

Westermo RFI-207-F4G-T3G Managed Ethernet Switch
- Layer 3 functionality switching and routing
- 3 x 10/100/1000 Mbit/s Ethernet TX Ports (RJ-45)
- 4 x 100/1000 Mbit/s Combo ports (Ethernet FX or TX SFP)
- Dual Redundant 16 – 60 VDC Power input range
- Ultra-robust IP40 aluminum housing
- DIN-rail mount installation design
- –40 to +70°C operating temperature range
.png)
Description
RedFox is a high-performance layer 3 industrial Ethernet switch designed for high network traffic applications. Various port configurations are available that can be further customised with SFP transceivers RedFox is powered by the Westermo WeOS network operating system.
The RedFox is designed for use in heavy-duty industrial applications in its robust aluminum housing. Its wide power range and I/O fault contact make it ideal for easy installation and monitoring in industrial applications.
Only industrial-grade components are used which gives the RedFox an MTBF of 388,000 hours and ensures a long service life. A wide operating temperature range of –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. RedFox has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.
End of Life Product - Replacement Available
Please note that the RFI-207-F4G-T3G has been phased out and replaced by
the Lynx 5512-E-F4G-T8G-LV.
Inquire about the Westermo RFI-207-F4G-T3G Managed Ethernet Switch, designed for
industrial automation solutions. Feel free to get in touch with our sales team
to give you the best solutions at the best global price in the Middle East (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 7 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 3 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 4 x 100/1000 Mbit/s Combo ports (Ethernet FX or TX SFP), 1 x Console Port (USB Micro-B connector), 1 x USB 2.0 host interface, 1 x Digital I/O (4-ports detachable screw terminal) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.55 (0.72*) A @ 20 VDC, 0.23 (0.29*) A @ 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 20 to 48 VDC |
| Operating Voltage | 16 to 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | MIL-HDBK-217K: 388,000 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 134 x 100 x 122 mm (5.25 x 3.93 x 4.80 in) |
| Housing | Aluminium |
| Installation | DIN-rail mounting |
| Operating Temperature | –40 to +70ºC (–40 to +158ºF) |
| Operation Humidity | 5-95% relative humidity |
| Standards and Certifications | Ingress protection: IP40; MIL-HDBK-217K; EMC: EN 50121-4, Railway applications -Electromagnetic compatibility – Emission and immunity of the signalling and telecommunications apparatus, EN 61000-6-1, Electromagnetic compatibility – Immunity for residential, commercial and light-industrial environments, EN 61000-6-2, Electromagnetic compatibility – Immunity for industrial environments, EN 61000-6-3, Electromagnetic compatibility – Emission standards for residential, commercial and light industrial environments, EN 61000-6-4, Electromagnetic compatibility – Emission standard for industrial environments; Safety: UL/IEC/EN 60950-1, IT equipment; Marine: DNV GL rules for classification – Ships and offshore units; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6 |
| Storage Temperature | –40 to +85ºC (–40 to +185ºF) |
| Weight | 1.5kg |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | - |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
