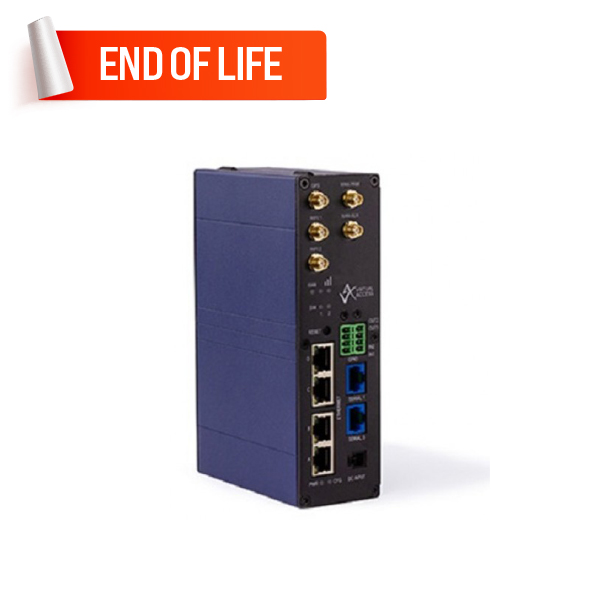

Westermo GW2304W-2S-PE4-2DIDO-WF-QFR-DC48 Industrial 4G LTE Router with PoE+
- High-performance device with 4 ARM core CPUs
- 4 x 10/100/1000 Mbps Ethernet ports (RJ-45 connector)
- PoE+ on up to four Ethernet ports is available
- 2 x Serial ports configurable as RS232 or RS485 (RJ-45 connector)
- 22-57V DC isolated input power (PoE/PoE+: 44V-50V, 45W-75W)
- DIN-rail mount installation design
- IP54-rated Rugged aluminium enclosure
- -20 to +65°C operating temperature range
-01.png)
Description
The Virtual Access GW2304W Series router has been designed
for remote access applications in the harshest of environments, such as
unmanned roadside cabinets, railway trackside, and pole-top smart grid
applications over 4G. The PoE+ capability supplies up to 60W of power across
the 4 Ethernet ports to power cameras with PTZ or other PoE devices. Serial
ports and digital I/O options make this a very versatile device for many
industrial applications. Dual 2.4 and 5 GHz WiFi support is built in as standard, where an access point or client connectivity is required.
GbE Ethernet Ports
The GW2304W Series router supports up to four 10/100/1000Mbps Ethernet interfaces. They can be configured as a single interface with Ethernet switching between them or as separate router interfaces.
PoE
The GW2304W Series supports up to four PoE ports with a total budget of 60W. The power management can allocate all the power to 2 ports for POE+ applications or spread the available power across all 4 ports depending on the power class of the connected device.
End of Life Product - No Replacement
Please note that the GW2304W Series has been phased out. You can explore the GW1042M-X-QFR-DCn0936, GW2304-PE4-2DI2O-QFR, GW1042M-QFR-DCn0936, and GW1042W-X-QFR-DCi0936 in the Wireless Routers.
Discover industrial automation
solutions appropriate to your needs, and easily inquire about the Westermo GW2304W-2S-PE4-2DIDO-WF-QFR-DC48 Industrial 4G LTE Router with PoE+ through
our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 x micro SIM card sockets |
| Ethernet Ports | : 4 x 10/100/1000 Mbps ports (RJ-45 connector), PoE+ on up to four Ethernet ports is available, Ethernet ports can be configured for WAN use |
| USB | |
| Digital Input and Output | : 2 x digital inputs for detecting remote contact open/close |
| Serial port | : 2 x RJ45 ports configurable as RS232 or RS485 |
| Alert Output | |
| Band Options | LTE FDD Bands: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B26/B28; LTE TDD Bands: B38/B39/B40/B41; WCDMA Bands: B1/B2/B4/B5/B8/B6/B19; GSM Bands: B2/B3/B5/B8 |
| Cellular Standards | LTE, HSPA+, WCDMA, EDGE, EDGE, GPRS GSM |
| Cellular Antenna Connectors | 2 or 4 cellular antenna SMA sockets (MIMO support in LTE versions) |
| WLAN Standards | 802.11 a/b/g/n/ac |
| WLAN Antenna Connector | 2 x SMA female WiFi antenna sockets |
| GPS Antenna Connector | 1 x GPS SMA female antenna connector with 3.3 Volt DC power feed for active antenna |
| Radio specifications | |
| Radio Connection type | - |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | Download up to 150Mbps, Upload up to 50Mbps |
| WiFi Radio Frequency | |
| Software Specifications | |
| Routing Redundancy | VRRP |
| VPN | : IPSec VPN Options : IKE version 2, X.509 certificates, Elliptic Curve Cryptography (ECC), SHA2_512 support, PFS, SCEP, DH_8192 |
| Firewall | NAT, Port Forwarding, Packet filtering |
| Time Management | |
| Management | Automatic configuration using Activator server, HTTP/HTTPS, Command Line Interface via SSH, TFTP client download/upload, SNMP agent, SMS management support enables SMS control including reboot |
| General | |
| LED Indicators | Booting up, Power, Config, SIM1 & SIM2, 3G/LTE Cellular Signal Strength, DSL SYN, DSL DAT, LINK, SPEED |
| MTBF | - |
| Operating mode | Cellular LTE Router, Access Point |
| Standards and protocols | |
| Protocols | HTTP, HTTPS, DHCP server & client, DynDNS, NAT, NAT Traversal, NTP Client, VLAN, BGPv4, OSPF, RIP, IPSec, L2TPv2, L2TPv3, GRE, DMVPN, SNMP v1/v2/v3, TLS 1.2, QoS, VRRP, VRF, Open VPN |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | |
| Authentication | 802.1x authentication |
| Power Requirements | |
| Power Connector | - |
| Power Consumption (Output Adapter) | Devices without PoE: 15W, 2 x PoE configured devices: 45W, 4 x PoE configured devices: 75W, 2 x PoE+ configured devices: 75W |
| Input Voltage | isolated 22-57V DC, PoE support with input voltage over 44V, PoE+ support with input voltage over 50V |
| POE Support | |
| Input Current | - |
| Reverse Polarity Protection | |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | DIN-rail mounting |
| Dimensions | 170W x 50H x 125D (mm) |
| Housing | Rugged aluminium |
| Weight | 500g |
| Operating Temperature | -20°C to +65°C |
| Storage Humidity | - |
| Storage Temperature | -30° C to +70° C |
| Type of Use | Industrial environments |
| Standards and Certifications | CE RED, EN 60950 safety approval, EN 55022 and EN 55024 EMC, EN 300 328 V1.9.1, Freefall drop test to EN60068-2-32:2008, Bump test to EN60068-2-27:2009, Random vibration test to EN60068-2-64:2008, Mechanical shock test to EN60068-2-27:2009, IP54 |
