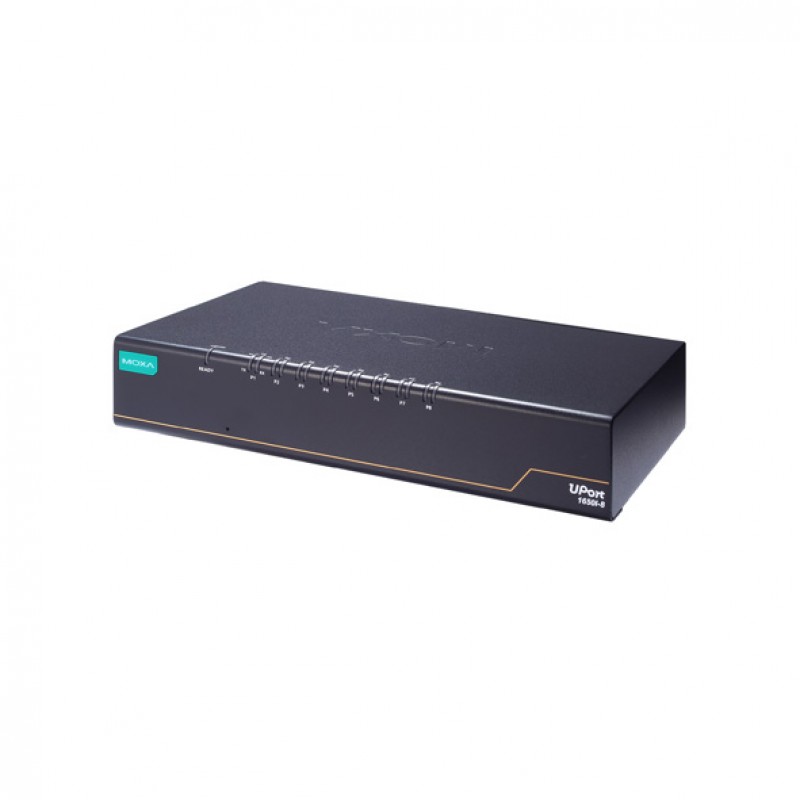

MOXA UPort 1650I-8-G2-T USB to Serial Converter
- 1 x USB 3.2 Port (Type B connector)
- 8 x RS-232/422/485 Serial ports (DB9 male connector)
- 2KV Isolation protection for serial ports
- Compatible Driver with Windows, Linux, macOS
- 12 to 48 VDC (Adaptor) input power range
- IP20-rated Metal body design
- -40 to 75°C Operating Temperature
Description
The UPort® 1600-8-G2 Series USB-to-serial converters are
ideal for laptop or workstation computers that need serial port expansion. They
are essential for computers that need to connect different serial devices in
the field or need separate interface converters for devices without a standard
COM port or DB9 connector. The computers also come with a USB cable that has a
latch and screw lock for a more secure connection between the UPort and your
computer. With the cascading capability of the UPort® 1650-8-G2-Hub, you can
link up to 32 serial ports without a power adaptor to the UPort. The UPort®
1600-8-G2 Series converts from USB to RS-232/422/485. All products are compatible
with legacy serial devices and can be used with instrumentation and
point-of-sale applications.
You can also find the UPort 1610-8-G2, UPort 1650-8-G2-Hub, and UPort 1650I-8-G2 models in the Industrial USB Converters.
Easy World Automation offers the easiest way to buy the MOXA UPort 1650I-8-G2-T USB to Serial Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| USB Interface | |
|---|---|
| Number of Ports | 1 Port |
| USB Connector | USB type B |
| USB Standards | USB 3.2 Gen 1, USB 1.1/2.0 compliant |
| Speed | 5 Gbps, 480 Mbps, 12 Mbps |
| Serial Interface | |
| Total number of serial ports | 8 x RS-232/422/485 Ports |
| Serial connection type | DB9 male |
| Serial Communication Parameters | Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| FIFO | 512bytes |
| Data transfer speed ( Baudrate ) | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Electrical isolation | : 2KV |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Compatible Operating Systems | |
| Windows Drivers | Windows 11, 10, 8.1, 8, and 7, Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2 |
| Linux Drivers | Kernel 6.x, 5.x and 4.x |
| Mac Drivers | macOS version (Intel 64): 13, 12, 11 and 10.1x |
| General | |
| MTBF | 782,795 hrs |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC by external power adaptor |
| Input Current | 530 mA @ 12 VDC |
| Physical Characteristics | |
| Dimensions | 216 x 41.5 x 121.6 mm (8.50 x 1.63 x 4.79 in) |
| Housing | Metal |
| Operating Temperature | -40 to 75°C (32 to 140°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV, IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz, IEC 61000-4-8 PFMF; Safety: IEC 62368-1, EN 62368-1, UL 62368-1 (CB), KC; Vibration: IEC 60068-2-6, IEC 60068-2-64; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; IP20; Green Product: RoHS, CRoHS, WEEE; Telcordia Standard SR332, Telcordia Issue 2 |
| Weight | 678 g (1.49 lb) |
