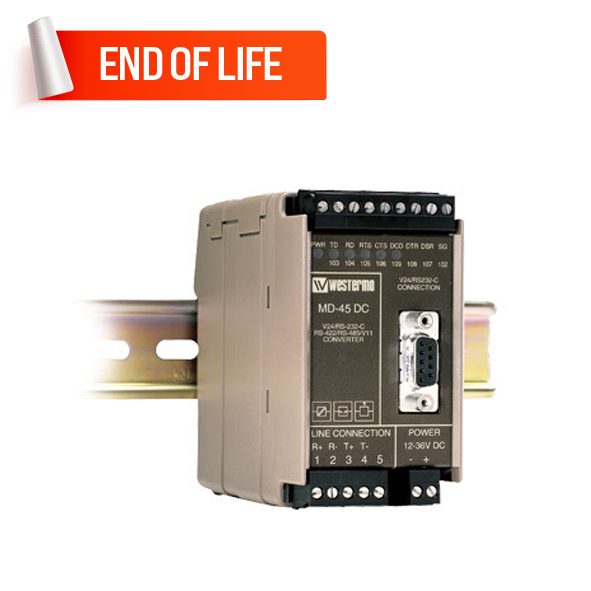

Westermo MD-45 HV Industrial RS-232 to RS-422/485 Converter
- 1 x RS-232 Port (9-polig D-sub, 1200 – 115200 bit/s)
- 1 x RS-422/485 Port (5-position screw terminal, 1200 – 115200 bit/s)
- DIN rail mount installation design
- 95–240 VAC / 110–250 VDC power input with Total galvanic isolation
- +5 to +55°C operating temperature range
- Brand: WESTERMO
- Product Code: 3157-1101
Description
MD-45 is used as an interface converter between RS-232 and RS-422/485 or when point-to-point communication is needed at data rates up to 115.2 kbit/s. The device can communicate on 2-wire or 4-wire cable up to 1200 metres (4000 ft).
In multidrop applications, the MD-45 supports up to 32 connected devices on the bus. With 2-wire systems, the communication direction is controlled by the data flow, i.e,. The converter detects the data and switches the communication direction depending on which side the data has been sent. This makes it possible to connect equipment that cannot generate handshaking signals.
The MD-45 is intended for mounting on a 35 mm DIN-rail, where the modem is attached and locked in a single action. Greater transmission ranges or additional connected devices on the bus are possible with one or more repeaters.
End of Life Product - Replacement Available
Please note that the MD-45 HV has been phased out and replaced by the MDW-45 HV.
Easy World Automation offers the easiest way to buy the Westermo MD-45 HV Industrial RS-232 to RS-422/485 Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Alarm Contact Channels | |
| Magnetic Isolation Protection | |
| Protocols | |
| Serial Interface | |
| Number of Ports | 2 Ports |
| Serial Standards | RS-232, RS-422/485 |
| Connector | RS-485/422: 5-pos screw block; RS-232: 9-pos D-sub, DCE |
| Console Port | |
| Serial Communication Parameters | |
| Baudrate | 1 200 – 115 200 bit/s |
| Data Bits | 7 or 8 |
| Stop Bits | 1 or 2 |
| Parity | - |
| Flow Control | - |
| Isolation | : RS-232 / RS-485/422: 1,0 kV RMS |
| Serial Signals | |
| RS-232 | - |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| Communication details | |
| Wireless Standards | - |
| Maximum data transfer speed | - |
| Maximum direct range | - |
| General | |
| Management | - |
| Compatible operating systems | - |
| Fixed TTY Drivers | - |
| Linux Real TTY Drivers | - |
| Automatic Reboot Trigger | - |
| Power Requirements | |
| Connection | Detachable 3-pos. screw terminal |
| Input Voltage | 95–240 VAC, 110–250 VDC (Wide Range: 88 – 300 VDC, 85.5 – 264 VAC) |
| Input Current | 25 mA @ 240 V,, 50 mA @ 95 V |
| Security | |
| Security | |
| Encryption | |
| Authentication | |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | 55 x 100 x 128 mm (LxHxP) |
| Installation | DIN-rail mounting |
| Standards and Certifications | IP 20 (IEC 529); EMC: EN 61000-6-3/CISPR22(EN 55022): Class B, EN 61000-6-2/EN 61000-4-2, EN 61000-6-2/EN 61000-4-3, EN 61000-6-2/EN 61000-4-4, EN 61000-6-2/EN 61000-4-5, EN 61000-6-2/EN 61000-4-6, EN 61000-6-2/EN 61000-4-11, EN 61000-6-2/EN 61000-4-16; Safety: EN 60950 |
| Housing | - |
| Operating Temperature | 5 to 55ºC |
| Storage Temperature | –25 to 70ºC |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 0.25 kg |
