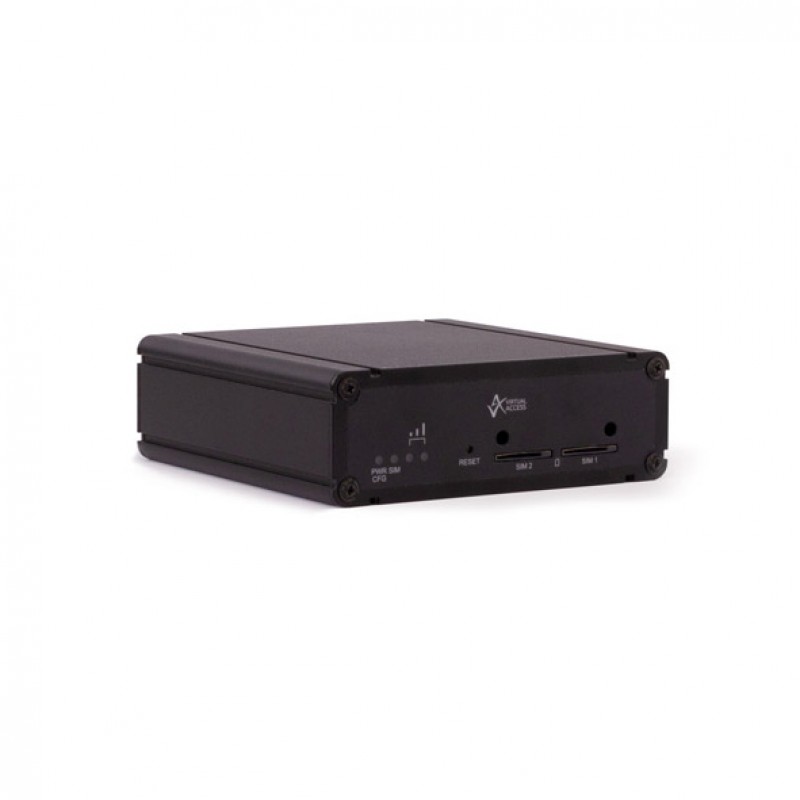

Westermo GW1042W-X-QFR-DCi0936 Dual SIM Industrial 4G LTE Router
- Category 4 LTE with global band coverage
- 2 x 10/100Mbps base-T Ethernet ports (RJ45 connector)
- 2 x SIM card sockets with optional slot cover
- 9-36V DC isolated input power range
- Bracket mount installation
- Rugged aluminum enclosure
- -40 to +70 °C operating temperature range
Description
The Virtual Access
GW1042W Series router is a compact and rugged 4G/LTE router designed with a
metal housing. It enables 4G/LTE or 3G HSPA+ connectivity in a wide range of
applications including smart grid, SCADA, auto-recloser, and remote asset
monitoring.
The product is equally at
home offering primary WAN, 4G/LTE failover to fixed line via one of the onboard
Ethernet ports. Its small size is ideal for applications where space is at a
premium. The GW1042W Series router offers a new entry point for 4G/LTE data
applications but still supports all the legacy access technologies: HSPA+,
HSPA, UMTS, EDGE, GPRS, and GSM.
Dual Ethernet Ports
The GW1042W Series router offers two 10/100Mbps Ethernet
interfaces. They can be configured as a single interface with Ethernet
switching between them or as separate router interfaces.
Cellular Radio Interface
The GW1042W Series router supports category 4 LTE, which has
a maximum downstream speed of 150Mbps and a maximum upstream speed of 50Mbps. A very large set of LTE bands is supported in
a single device, providing global network coverage. This simplifies stock
control and logistics for multinational operations.
You can also find the GW1042M-QFR-DCn0936 and GW1042M-X-QFR-DCn0936 models in the Wireless Routers.
Experience the convenient way to purchase the Westermo GW1042W-X-QFR-DCi0936 Dual SIM Industrial 4G LTE Router in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 x SIM card socket with optional slot cover |
| Ethernet Ports | : 2 x 10/100Mbps base-T Ports (RJ45 connector), Auto detects a regular or crossover cable for easy connection to a switch or hub, can optionally be configured for WAN use |
| USB | |
| Digital Input and Output | |
| Serial port | |
| Alert Output | |
| Band Options | LTE FDD Bands: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B26/B28; LTE TDD Bands: B38/B39/B40/B41; WCDMA Bands: B1/B2/B4/B5/B6/B8/B19; GSM Bands: B2/B3/B5/B8 |
| Cellular Standards | LTE Category 4, WCDMA, GSM |
| Cellular Antenna Connectors | 2 x LTE SMA female antenna connectors (MIMO support in LTE versions) |
| WLAN Standards | |
| WLAN Antenna Connector | |
| GPS Antenna Connector | |
| Radio specifications | |
| Radio Connection type | - |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | Maximum downstream speed: 150Mbps, Maximum upstream speed: 50Mbps |
| WiFi Radio Frequency | - |
| Software Specifications | |
| Routing Redundancy | VRRP |
| VPN | IPSec/L2TP/GRE/DMVPN |
| Firewall | NAT, Port Forwarding, Packet filtering |
| Time Management | |
| Management | Automatic configuration using Activator server, HTTP/HTTPS, Command Line Interface via SSHv2, TFTP client download/upload, SNMP v1/v2c/3, SMS management support |
| General | |
| LED Indicators | Power indicator, Ethernet activity, Active SIM |
| MTBF | - |
| Operating mode | Router, 4G Modem |
| Standards and protocols | |
| Protocols | Virtual Routing and Forwarding (VRF), IPv4 and IPv6, DHCP server/client, DynDNS, NAT, NAT Traversal, NTP Client, VLAN support, Packet filtering, Firewall, Port forwarding, BGPv4, OSPF, RIP (v1 and v2), IPSec/L2TP/GRE, DMVPN, SNMP v1/v2/v3, TLS 1.2, 802.1x authentication, IEC 104, QoS, VRRP |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | - |
| Authentication | 802.1x authentication |
| Power Requirements | |
| Power Connector | - |
| Power Consumption (Output Adapter) | - |
| Input Voltage | 9-36V DC isolated |
| POE Support | |
| Input Current | - |
| Reverse Polarity Protection | |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | Bracket mounting |
| Dimensions | 115W 111D 38H mm, with mounting bracket: 120W 120D 45H mm |
| Housing | Aluminum |
| Weight | 420g |
| Operating Temperature | -40 to 70 ° C |
| Storage Humidity | - |
| Storage Temperature | - |
| Type of Use | Industrial environments |
| Standards and Certifications | EN 60950 safety approval, EN 55022 and EN 55024 EMC, EN 300 328 V1.9.1; Shock: ETSI 300 019-2-3; Vibration: ETSI 300 019-2-3 |
