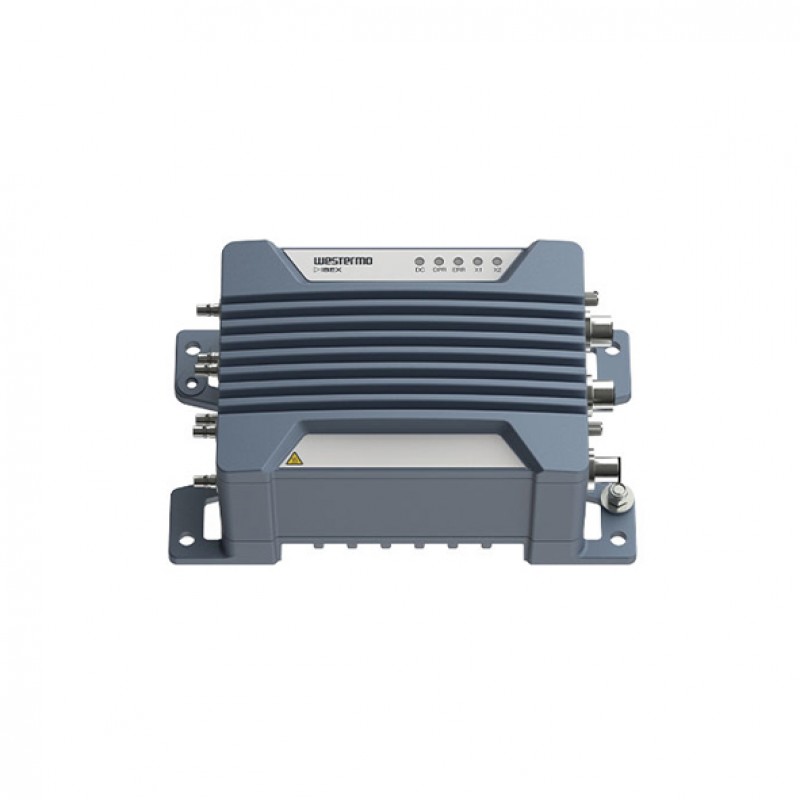

Westermo Ibex-RT-630-LV EU Industrial LTE and WLAN Router
- Supports Europe Frequency Bands
- Supports 3 x carrier aggregation and 256QAM
- WLAN interface with access point and roaming client modes
- 2 x 10/100/1000 Base-T Ethernet ports (M12 connector)
- 2 x Mini SIM card slots
- IP66-rated Metal body design
- 24 VDC isolated or IEEE 802.3 at type 1 powered device
- Screw mount installation design
- -40 to +70°C operating temperature range
.png)
Description
The Ibex-RT-630 is a
mobile LTE and WLAN router for onboard usage in trains, trams, locomotives, and
buses. The Ibex-RT-630 offers outstanding performance and rugged internet
connectivity backup to enable hybrid train-to-ground installations with a single
device. The Mobile Communication Gateway (MCG) router is designed to withstand
the tough onboard environmental conditions and can be remotely managed using a web browser or SNMP management tools. The MCG provides advanced firewall
functionalities and high-performance VPN connectivity.
The router exceeds the
high requirements for the most bandwidth-demanding applications worldwide and
features global LTE bands to support all current, as well as future,
frequencies. A compact design enables quick and easy installation into the
tight spaces of trains, while configuration and unit replacement is simplified
by a SIM card memory for configuration parameters. Dual SIM allows for further
performance optimizations and carrier redundancy. IP66-rating and a wide
temperature range from -40 °C to +70 °C ensure that the devices can be
installed virtually anywhere, without the need for additional protection.
Meeting the requirements
of the rail market, the Ibex-RT-630 is very well-suited for any deployment in
environmentally challenging environments.
You can also find the Ibex-RT-630-HV NA, Ibex-RT-630-HV EU, and Ibex-RT-630-LV NA models in the Wireless Routers.
Easy World Automation offers the easiest way to buy the Westermo Ibex-RT-630-LV EU Industrial LTE and WLAN Router in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 x Mini SIM card slots |
| Ethernet Ports | : 2 x 10/100/1000 Base-T, 2 x M12 X-coded connectors |
| USB | |
| Digital Input and Output | |
| Serial port | |
| Alert Output | |
| Band Options | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21/B26/B28/B29/B30/B32/B66; LTE-TDD: B38/39/B40/B41; WCDMA Band: B1/B2/B3/B4/B5/B8/B9/B19 |
| Cellular Standards | LTE, WCDMA |
| Cellular Antenna Connectors | 2 x QMA compatible connectors for LTE |
| WLAN Standards | IEEE802.11b, 802.11g, 802.11a, 802.11n |
| WLAN Antenna Connector | 3 x QMA compatible connectors for WLAN |
| GPS Antenna Connector | 1 x QMA compatible connector for GNSS |
| Radio specifications | |
| Radio Connection type | - |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | DC-HSDPA: Max 42 Mbps (DL); HSUPA: Max 5.76 Mbps (UL); WCDMA: Max 384 Kbps (DL), Max 384 Kbps (UL) |
| Maximum data transfer speed of 4G | LTE-FDD: Max 600 Mbps (DL)/Max 150 Mbps (UL) – DL 256QAM / UL 64QAM; LTE-TDD: Max 430 Mbps (DL), Max 30 Mbps (UL); |
| WiFi Radio Frequency | 2.400 to 2.4835 GHz, 5.150 to 5.350 GHz, 5.470 to 5.725 GHz, 5.725 to 5.875 GHz |
| Software Specifications | |
| Routing Redundancy | |
| VPN | SSL, Layer-2 VPN, Layer-3 VPN, Layer-2 VPN bridging, GRE |
| Firewall | NAT, Port Forwarding |
| Time Management | |
| Management | SNMP, HTTP/HTTPS with user authentication, CLI (SSH and Telnet) |
| General | |
| LED Indicators | : DC, OPR, ERR, X1, X2 |
| MTBF | 290,000 hours (IEC 62380) |
| Operating mode | Access Point, Client, Bridge, Inter-consist Link |
| Standards and protocols | |
| Protocols | Fixed fallback IP, IP aliases, MAC address control lists, Port forwarding, Routing, Multicast Routing, DHCP Server/Client, NAT, VLAN support, NTP client, SNMP v2c and v3 with USM authentication and encryption support, SNMP Traps, RSTP, Firewall, IP Masquerading (NAT/NAPT), Port Forwarding, Stateless NAT (1-1 NAT), SSL VPN (Client and Server), Certificate Authentication, Pre-shared Key (PSK) Point-to-Point Mode, Layer-2 and Layer-3 VPN, Layer-2 VPN bridging, Address pool and address per CN, TLS Authentication), Generic Routing Encapsulation (GRE) |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | Security: WPA2 (CCMP), WPA3-Personal (SAE/OWE), WPA3-Enterprise (Suite-B), 802.11w, 802.1X, 802.11r; Encryption: SNMP v2c and v3 |
| Authentication | USM |
| Power Requirements | |
| Power Connector | M12 A-coded male |
| Power Consumption (Output Adapter) | - |
| Input Voltage | 24 VDC isolated, 0.6 A max. or IEEE 802.3 at type 1 powered device |
| POE Support | |
| Input Current | 0.6 A |
| Reverse Polarity Protection | Supported |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | Screw mounting |
| Dimensions | 195.4 x 83 x 111.4 mm (7.69 x 3.27 x 4.39 inches) |
| Housing | Full metal |
| Weight | 1.65 kg without antennas |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Storage Humidity | 5-95 % relative humidity |
| Storage Temperature | -55 to +85°C (-67 to +185°F) |
| Type of Use | Industrial environment |
| Standards and Certifications | Ingress protection: IP66; IEC 62380; Climate: EN 50155, class OT4 Railway applications - Electronic equipment used on rolling stock; EMC: EN 50155, Railway applications - Electronic equipment used on rolling stock, EBA EMV 06, German Federal Railway Authority, Radio compatibility of rail vehicles, EN 50121-3-2, Railway applications – Electromagnetic compatibility, Part 3-2: Rolling stock – Apparatus, ETSI EN 301 489-17, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for Specific conditions for Broadband Data Transmission Systems, ETSI EN 301 489-19, Electromagnetic Compatibility (EMC) standard for radio equipment and services - Part 19: Specific conditions for Receive Only Mobile Earth Stations (ROMES) operating in the 1,5 GHz band, ETSI EN 301 489-24, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 24: Specific conditions for IMT-2000 CDMA Direct Spread (UTRA) for Mobile and portable (UE) radio and ancillary equipment, ETSI EN 301 489-52, Electromagnetic Compatibility (EMC) standard for radio equipment and services - Part 52: Specific conditions for Cellular Communication Mobile and portable (UE) radio and ancillary equipment, ECE E-Mark, Road Vehicles, E13 10R-06 15771; Mechanical (Shock and vibration): EN 61373, category 1, class A and B, IEC 60068-2-27, 100 m/s2, 30 ms, MIL STD 810G Method 516.7, 10 g, 11 ms; Insulation (Coordination and test): EN 50124-1, Railway applications – Insulation coordination, EN 50155, Railway applications - Electronic equipment used on rolling stock; Radio communication: ETSI EN 300 328, Wideband transmission systems; Data transmission equipment operating in the 2.4 GHz ISM band and using wide band modulation techniques, ETSI EN 301 893, 5 GHz RLAN, ETSI EN 301 908-1, IMT cellular networks, 3GPP LTE Advanced standard, IEEE802.11, Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications, FCC-47-15, Radio frequency devices, FCC-47-22, Public mobile services, FCC-47-24, Personal communications services, FCC-47-27, Miscellaneous wireless communications services; Safety: EN/IEC 62368-1, Safety Requirements for audio/video, information and communication technology equipment, EN 45545-2, Fire protection on railway vehicles, NFPA 130, Fire protection for fixed guideway transit and passenger rail system; Shock: IEC 60068-2-27, IEC 61373, MIL-STD-810G; Vibration: IEC 60068-2-64, IEC 61373, MIL-STD-810G |
