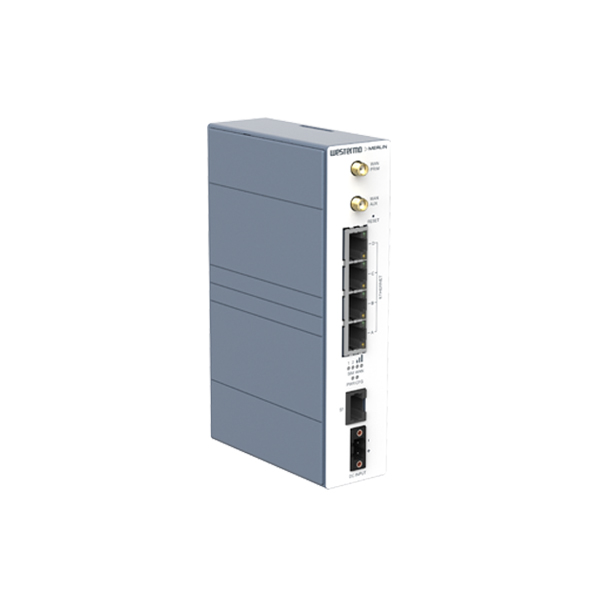

Westermo Merlin-4106-T4-S1-DI1-QFT Industrial Cellular Router

Westermo Merlin-4106-T4-S1-DI1-QFT Industrial Cellular Router
Westermo Merlin-4106-T4-S1-DI1-QFT Industrial Cellular Router
Westermo Merlin-4106-T4-S1-DI1-QFT Industrial Cellular Router
Westermo Merlin-4106-T4-S1-DI1-QFT Industrial Cellular Router
Westermo Merlin-4106-T4-S1-DI1-QFT Industrial Cellular Router
Westermo Merlin-4106-T4-S1-DI1-QFT Industrial Cellular Router
Westermo Merlin-4106-T4-S1-DI1-QFT Industrial Cellular Router

  • Supports Global Frequency Bands, Cat-M1 / NB-IoT

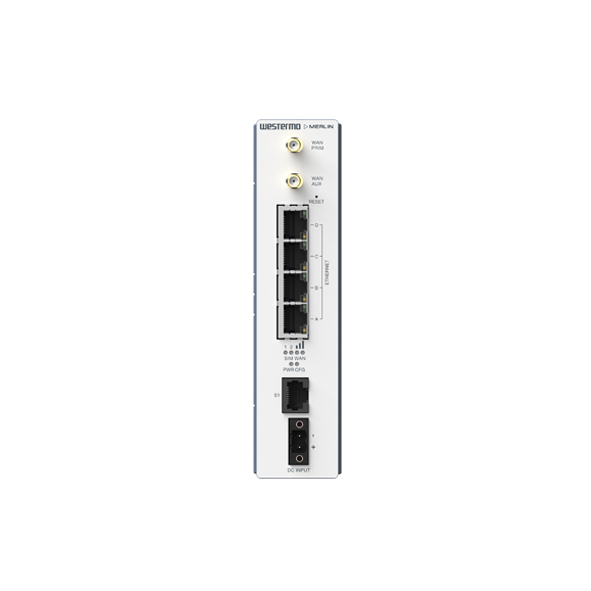

  • 4 x 10/100 Mbit/s Ethernet Ports (RJ45 connector)
  • 1 x Dual-use port configurable to act either as RS232 or Digital Input
  • 2 x Mini-SIM (2FF) card slots
  • IP40-rated ABS body material
  • Din-rail mount installation design
  • 9.6 to 60 VDC isolated power input
  • -20°C to +70°C operating temperature range

0 reviews • Write a review
Datasheet
  • Operating Temperature (-20 to 70°C)
  • Relative Humidity (5% to 95% RH)
  • IP protection (IP40)
  • Factory Automation
  • Railway Transportation
  • Power Utility
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Westermo Cybox AP 2-W WLAN Dual Radio Railway Access Point
Quickview
Westermo Cybox AP 2-W WLAN Dual Radio Railway Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo Cybox AP 3-W WLAN Dual Radio Railway Access Point
Quickview
Westermo Cybox AP 3-W WLAN Dual Radio Railway Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo Cybox GW 2-P Mobile Wireless Gateway
Quickview
Westermo Cybox GW 2-P Mobile Wireless Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox GW-P Mobile Wireless Gateway
Quickview
Westermo CyBox GW-P Mobile Wireless Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox LTE 2-W LTE and WLAN Router
Quickview
Westermo CyBox LTE 2-W LTE and WLAN Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox RT 2-A Automotive Wireless Router
Quickview
Westermo CyBox RT 2-A Automotive Wireless Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox RT 3-W Wi-Fi 5 Wave 2 Router
Quickview
Westermo CyBox RT 3-W Wi-Fi 5 Wave 2 Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo GW1042M-QFR-DCn0936 Dual SIM Industrial 4G LTE Router
Quickview
Westermo GW1042M-QFR-DCn0936 Dual SIM Industrial 4G LTE Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Routers , Cellular LTE Routers , Wireless & Cellular Routers , Cellular Gateways & Routers , Cellular Routers , Industrial Data Communications , Industrial Cellular Solutions , Wireless Routers , Routers , Factory Automation Products , Railway Transportation Products , Power Utility Products , Westermo Merlin 4100 Series

The Merlin 4100 router is a versatile LTE cellular router suited to a variety of industrial deployments. The compact and rugged design makes it ready for harsh environments that require remote access such as SCADA, CCTV, telemetry, smart grid, digital signage, and intelligent traffic systems.

The Merlin series is designed from the ground up to achieve best-in-class Cybersecurity. High-security VPNs, stateful inspection firewalls, user authentication, and 802.1x are just a few of the features available to keep the device secure both locally and when transmitting data over the internet or private network.

The Merlin 4100 is compatible with the Activator Zero-Touch Deployment software. Activator ensures that configurations are generated and deployed from a central server, reducing configuration mistakes and increasing efficiency during the installation phase of a project.

A dual-use port is software-configurable to act either as an RS-232 serial port or as a dry contact digital input. The serial port facilitates applications where it is necessary to migrate from modems to an IP infrastructure. The industrial protocol gateway feature enables several devices using different protocols to be accessed via a common protocol interface. This compact unit is suited to tight spaces. Its high MTBF, wide temperature range, and voltage supply ensure the Merlin 4100 can deal with the demands of industrial and utility applications.



You can also find the Merlin-4106-T4-S1-DI1-PFJ, Merlin-4106-T4-S1-DI1-PFP, and Merlin-4106-T4-S1-DI1-QFZ models in the Wireless Routers.



Discover industrial automation solutions appropriate to your needs, and easily inquire about the Westermo Merlin-4106-T4-S1-DI1-QFT Industrial Cellular Router through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

3g modem : Interface

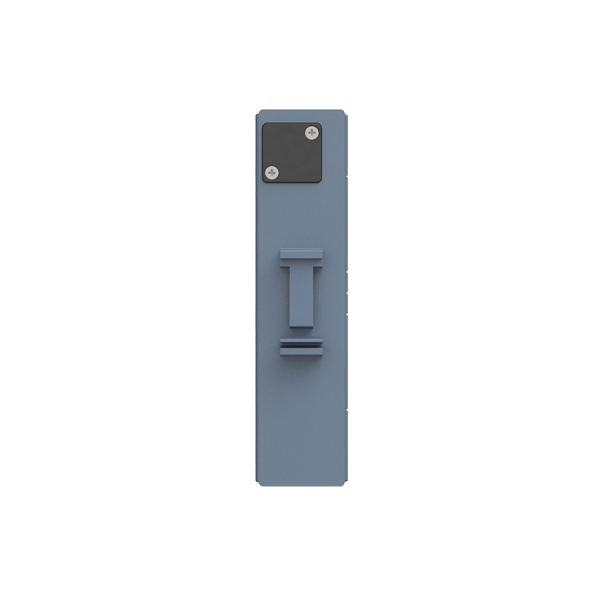

SIM card slot Yes : 2 x Mini-SIM (2FF) card slots to rear, covered by plate
Ethernet Ports Yes : 4 x 10/100 Mbit/s Ports (RJ45 connector)
USB No
Digital Input and Output Yes: A RJ45 dual-use port. Software configurable to act either as RS-232 Serial or Digital Input (dry contact)
Serial port Yes : A RJ45 dual-use port. Software configurable to act either as RS-232 Serial or Digital Input (dry contact)
Alert Output No
Band Options 2G Bands: 850, 900, 1800, 1900; LTE Bands: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B26, B28
Cellular Standards Cat-M1 / NB-IoT
Cellular Antenna Connectors 2 x SMA compatible connectors
WLAN Standards No
WLAN Antenna Connector No
GPS Antenna Connector No
3g modem : Radio specifications
Radio Connection type -
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G -
WiFi Radio Frequency -
3g modem : Software Specifications
Routing Redundancy VRRP
VPN IPSec/L2TPv3, GRE, OpenVPN client/server, DMVPN
Firewall NAT, Packet filtering, Port forwarding
Time Management No
Management Zero-Touch Provisioning (ZTP) using Activator. Web interface (HTTPS), SMS management support, CLI via console, SSHv2, TFTP, SNMPv1/v2c/v3, Secure Copy (SCP), Flexible alarm and event system, Port monitoring, Firmware-Over-The-Air
3g modem : General
LED Indicators Yes: Booting up, Power, Config, SIM , 3G/LTE cellular signal strength LED, LINK LED, SPEED LED
MTBF Telcordia: 1,700,000 hours
Operating mode LTE Cellular Router/Gateway
3g modem : Standards and protocols
Protocols IPv4 and IPv6, IPSec/L2TPv3/GRE/OpenVPN client/server, DMVPN, DHCP, DynDNS, NAT, NAT Traversal, NTP Client, VLAN support, Packet filtering, Port forwarding, BFD, BGPv4, OSPF, RIP (v1 and v2), SNMP v1/v2/v3, TLS 1.2, 802.1x authentication, IEC104, QoS, VRRP, VRF, Control of I/O from SCADA master, IEC 60870-5-104, IEC 60870-5-101, IEC 61850, Modbus RTU, Modbus TCP, Modbus RTU to TCP conversion, DNP3, Serial over TCP, MQTT
3g modem : Features and capabilities
Send and receive SMS Yes
3g modem : Security
Security and Encryption Security: Stateful inspection firewall, RADIUS, TACACS+; Encryption: VPN encryption
Authentication User authentication and 802.1x
3g modem : Power Requirements
Power Connector Push-in spring connectors
Power Consumption (Output Adapter) 5 W
Input Voltage 9.6 to 60 VDC isolated
POE Support No
Input Current 320 mA at 12 VDC, 200 mA at 24 VDC
Reverse Polarity Protection Supported
3g modem : Buttons
Power button No
Reset Yes
3g modem : Physical Characteristics
Installation DIN-rail mounting
Dimensions 39 x 160 x 100 mm
Housing ABS
Weight 280 g
Operating Temperature -20°C to +70°C
Storage Humidity 5-95% relative humidity
Storage Temperature -25°C to +70°C
Type of Use Industrial environment
Standards and Certifications Ingress protection: IP40; Telcordia; EMC: IEC/EN 61000-6-2, Immunity industrial environments, IEC/EN 61000-6-4, Emission industrial environments; Safety: EN 62368-1, Safety Communication Technology
