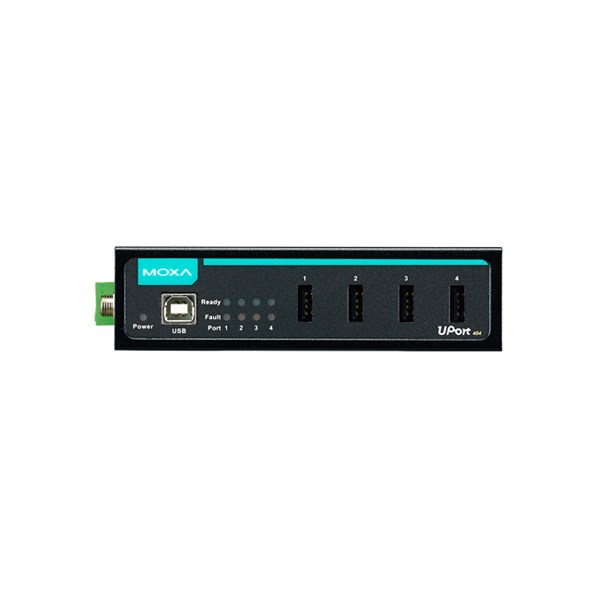

MOXA UPort 404 w/ Adapter 4-Port Industrial USB Hub

MOXA UPort 404 w/ Adapter 4-Port Industrial USB Hub
MOXA UPort 404 w/ Adapter 4-Port Industrial USB Hub
MOXA UPort 404 w/ Adapter 4-Port Industrial USB Hub
MOXA UPort 404 w/ Adapter 4-Port Industrial USB Hub
MOXA UPort 404 w/ Adapter 4-Port Industrial USB Hub
MOXA UPort 404 w/ Adapter 4-Port Industrial USB Hub
MOXA UPort 404 w/ Adapter 4-Port Industrial USB Hub

  • 4 x USB 2.0 Ports (Type A connector)
  • 1 x Upstream USB Port (Type B connector)
  • 12 to 40 VDC dual power inputs
  • Aluminum body design
  • DIN-rail and Wall mounting
  • 0 to 60°C operating temperature

  • Brand: MOXA
  • Model: UPort 404 w/ Adapter
0 reviews • Write a review
Datasheet User Guide
  • Operating Temperature (0 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Freefall (IEC 60068-2-34)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , USB-to-Serial Converters/USB Hubs , USB-to-Serial Converters , Industrial USB Hubs , Industrial Serial Connectivity , Industrial USB Converters & Hubs , Industrial-grade USB Hubs , Industrial USB Converters , Industrial Converters , USB Hubs , Industrial Hubs , Hubs , UPort , MOXA UPort 404/407 Series

The UPort® 404 and UPort® 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission rates through each port, even for heavy-load applications. The UPort® 404/407 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high-quality USB 2.0 hubs.

In addition, the hubs are fully compliant with the USB plug-and-play spec and provide a full 500 mA of power per port, ensuring that your USB devices function properly. The UPort® 404 and UPort® 407 hubs support 12-40 VDC power, which makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.


You can also find the UPort 407-T w/o Adapter, UPort 404-T w/o Adapter, and UPort 407 w/ Adapter models in the Industrial USB Converters.


Explore our extensive range of industrial automation products such as MOXA UPort 404 w/ Adapter 4-Port Industrial USB Hub in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).  Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.

usb hub : Interface
Number of Ports 5 (UFP: 1, DFP 4)
USB Connector UFP: type B, DFP: type A
USB Standards USB 2.0, USB 1.1
Speed 12 Mbps, 480 Mbps
usb hub : General
MTBF 1,490,340 hrs
usb hub : Power Requirements
Output Power For each port with a maximum flow of 0.5A
Input Power 12 to 40 VDC
Input Current 1.3 A @ 12 VDC
Power Connector Power jack and Terminal block
Reverse Polarity Protection No
usb hub : Physical Characteristics
Housing Aluminium
Weight 850 g (1.87 lb)
Dimensions 80 x 35 x 130 mm (3.15 x 1.38 x 5.12 in)
Operating Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5% to %95 non-condensing
Installation Wall mounting, DIN-rail mounting (optional)
Standards and Certifications EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1; Safety: UL 508; Freefall: IEC 60068-2-34; Green Product: RoHS, CRoHS, WEEE, Telcordia (Bellcore), GB
Storage Temperature -20 to 75°C (-4 to 167°F)
usb hub : LED Indicators
Status indicator Yes
usb hub : Package Checklist
Power adapter Yes
USB cable Yes
Hardware installation guide Yes
