Description

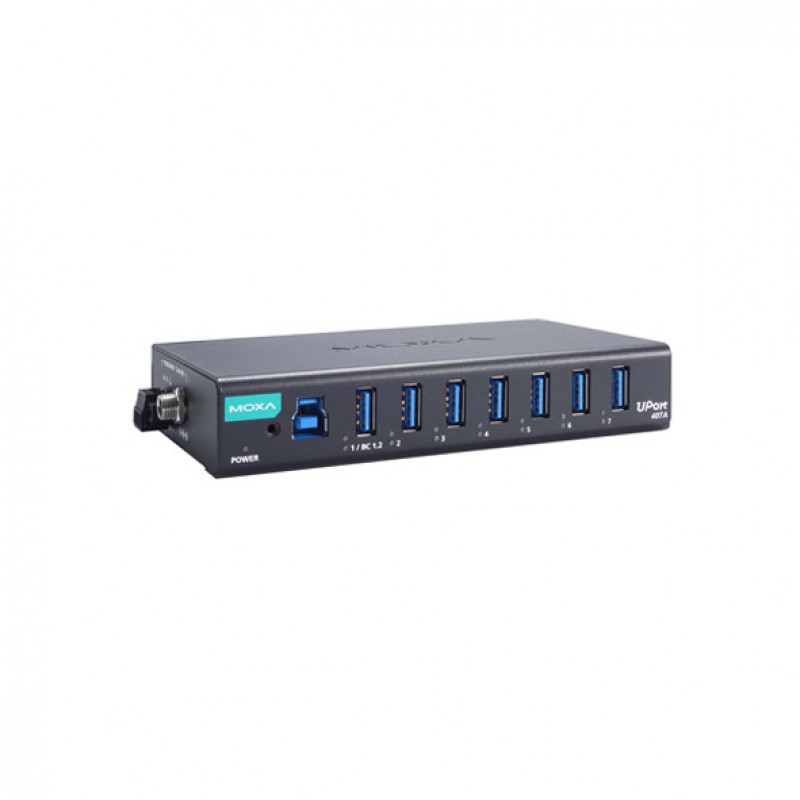

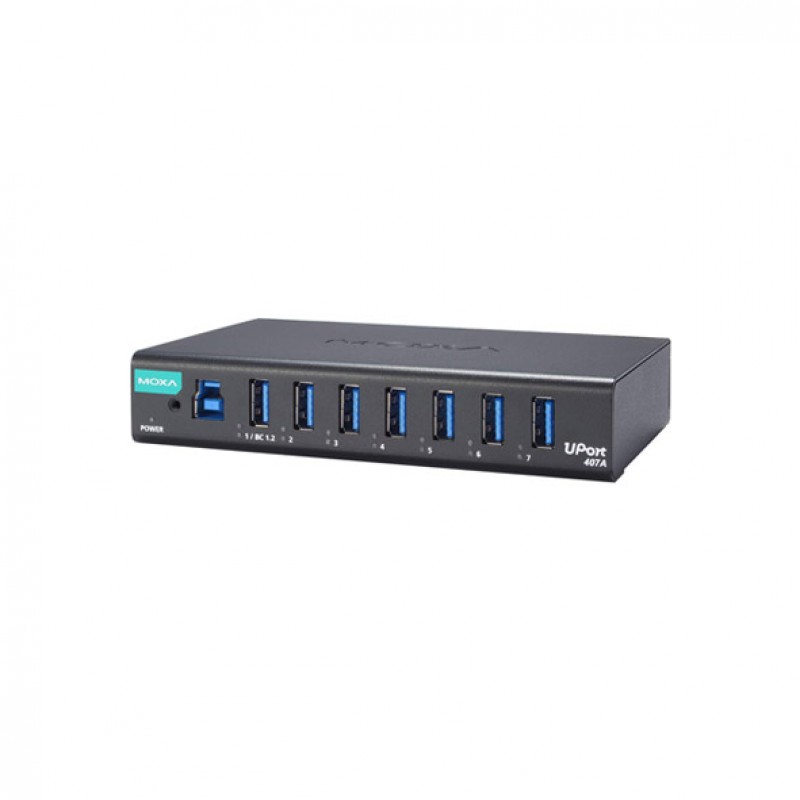

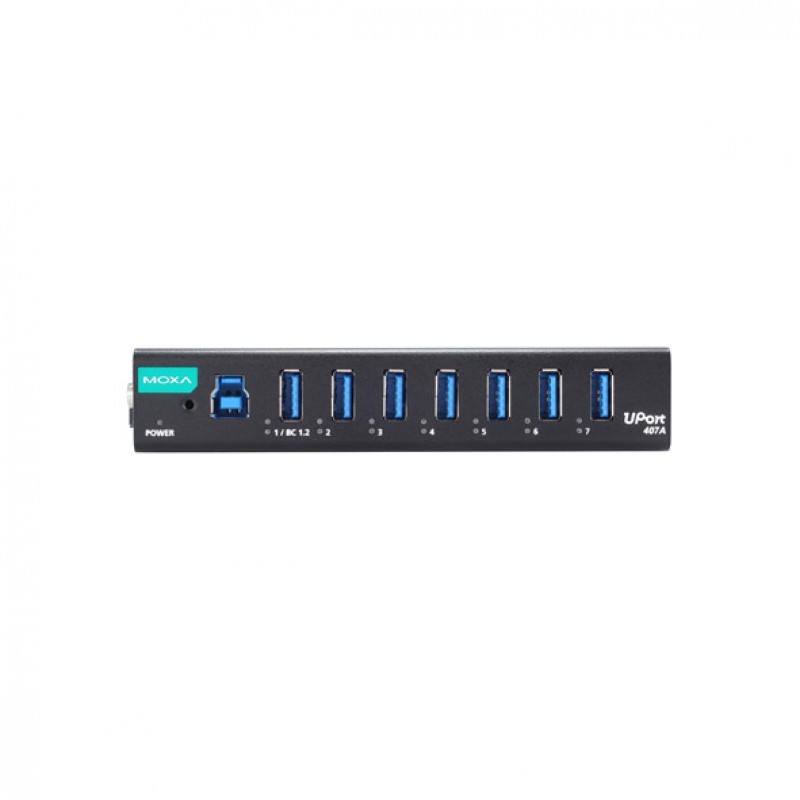

The UPort® 400A Series industrial-grade USB 3.2 hubs can expand a USB port into 4 or 7 USB ports. The hubs are designed to provide true USB 3.2 Gen 1 SuperSpeed 5 Gbps data transmission rates through each port, even for heavy-load applications. The UPort® 400A has been awarded the USB-IF SuperSpeed certification, which is an indication that the product is a reliable high-quality USB 3.2 hub. In addition, the hubs are fully compliant with the USB plug-and-play spec and provide complete 900 mA power per port, ensuring that your USB devices function properly. The UPort® 400A hubs support a 12 to 48 VDC power range, which makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.
USB-IF Certification
The UPort® 404A USB 2.0 industrial-grade USB hubs have been awarded the USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the SuperSpeed USB operation of USB hubs designed as per the USB 3.2/2.0 specification. This means that the UPort® 400A supports SuperSpeed USB 3.2 Gen 1 for up to 5 Gbps USB transmission, is fully compliant with interoperability requirements, has enough power for devices to function, and facilitates a smooth transition back to SuperSpeed operation from the suspended state.
ESD Level 4 Protection
Electrostatic discharge (ESD) could be as severe as having more than 1,000 volts of ESD with a high rise time (dv/dt) breaking through the junction layer of protective devices. In order to avoid serious damage, Moxa’s UPort® 400A Series USB hubs provide ESD Level 4 (contact 8 kV, air 15 kV) protection, which increases the quality and value of the user’s end product.
USB Cable With a Firmer Connector
UPort® 400A comes with a USB cable with a latch and screw lock for a more secure connection between the UPort and your computer.
You can also find the UPort 404A-T, UPort 404A, and UPort 407A-T models in the Industrial USB Converters.
Explore our extensive range of
industrial automation products such as MOXA UPort 407A Industrial USB Hub in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
Interface | |
---|---|
USB | : 8 (UFP: 1, DFP 7) |
Micro USB | |
USB interface | UFP: type B, DFP: type A |
Upstream USB | - |
Standards and protocols | |
Interface and ports standards | USB 1.1/2.0 compliant, USB 3.2 Gen 1 |
Features and capabilities | |
Maximum cable length between each hub | - |
Maximum number of connected devices | - |
Communication details | |
Maximum cable data transfer speed | - |
General | |
Compatible operating systems | - |
Power Requirements | |
Output Power USB Port | Port 1: 900 mA / 1500 mA @ 5 VDC, BC 1.2 compliant, Rest of ports: 900 mA @ 5 VDC |
Input Power | 12 to 48 VDC |
Physical Characteristics | |
Housing | Metal |
Weight | 0.45 Kg |
Operating Temperature | 0 to 60°C |
Operation Humidity | 5% to %95 non-condensing |
LED Indicators | |
Status indicator | |
Package Checklist | |
Power adapter | |
USB cable | |
Hardware installation guide |
