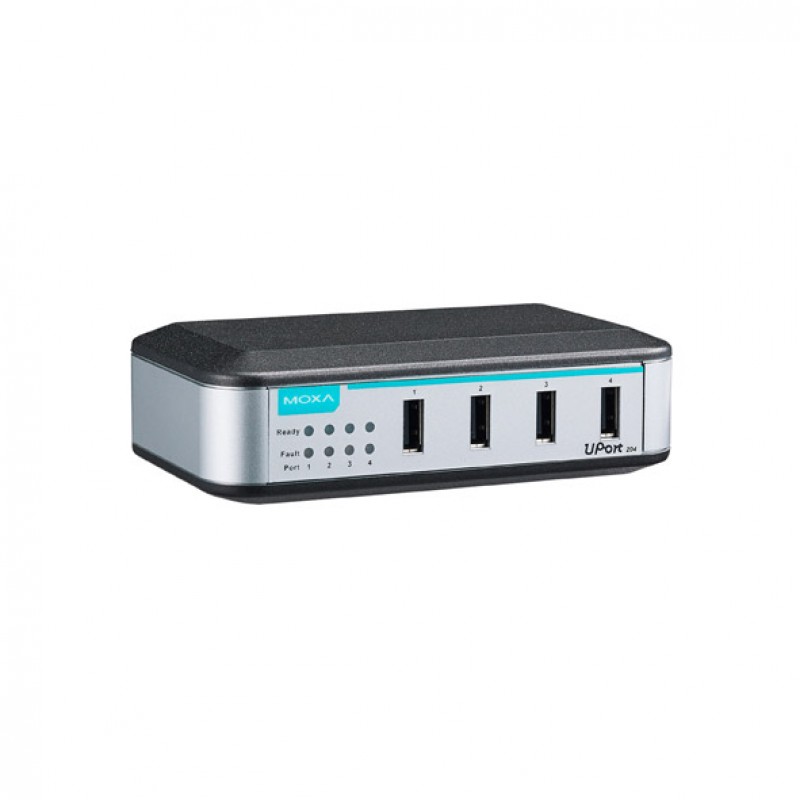

MOXA UPort 204 4-Port Industrial USB Hub
- 4 x USB 2.0 Ports (Type A connector)
- 1 x Upstream USB Port (Type B connector)
- 12 to 40 VDC input power range
- Polycarbonate body material
- DIN-rail and Wall mounting
- 0 to 60°C operating temperature range
- Brand: MOXA
- Product Code: UPort 204
Description
The UPort® 204 and UPort® 207 are entry-level USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission through each port, even for heavy-load applications. The UPort® 204 and UPort® 207 have received the USB-IF Hi-Speed certification and are fully plug-and-play. 500 mA of power per port ensures that your USB devices will function properly, and using 12 to 40 VDC of power makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.
You can also find the UPort 207 model in the Industrial USB Converters.
You can Buy the MOXA UPort 204 4-Port Industrial USB Hub via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| Interface | |
|---|---|
| Number of Ports | 5 (UFP: 1, DFP 4) |
| USB Connector | UFP: type B, DFP: type A |
| USB Standards | USB 1.1/2.0 compliant |
| Speed | 12 Mbps, 480 Mbps |
| General | |
| MTBF | 1,577,573 hrs |
| Power Requirements | |
| Output Power | - |
| Input Power | 12 to 40 VDC |
| Power Connector | - |
| Reverse Polarity Protection | |
| Physical Characteristics | |
| Housing | Polycarbonate (PC) |
| Weight | 800 g (1.76 lb) |
| Dimensions | 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in) |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5% to %95 non-condensing |
| Installation | - |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-3; Freefall: IEC 60068-2-34; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| LED Indicators | |
| Status indicator | |
| Package Checklist | |
| Power adapter | |
| USB cable | |
| Hardware installation guide | |
