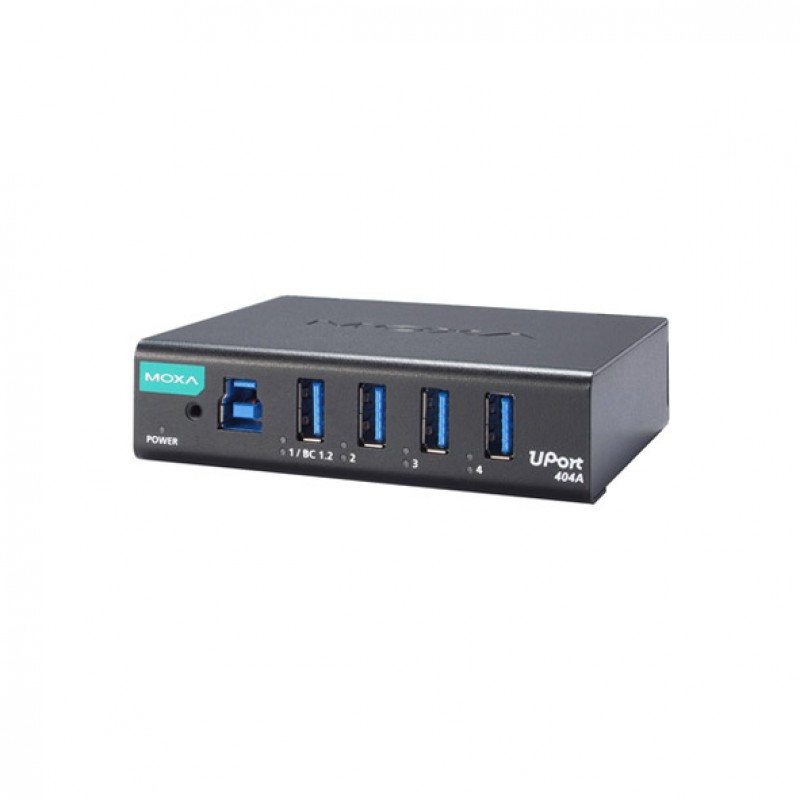

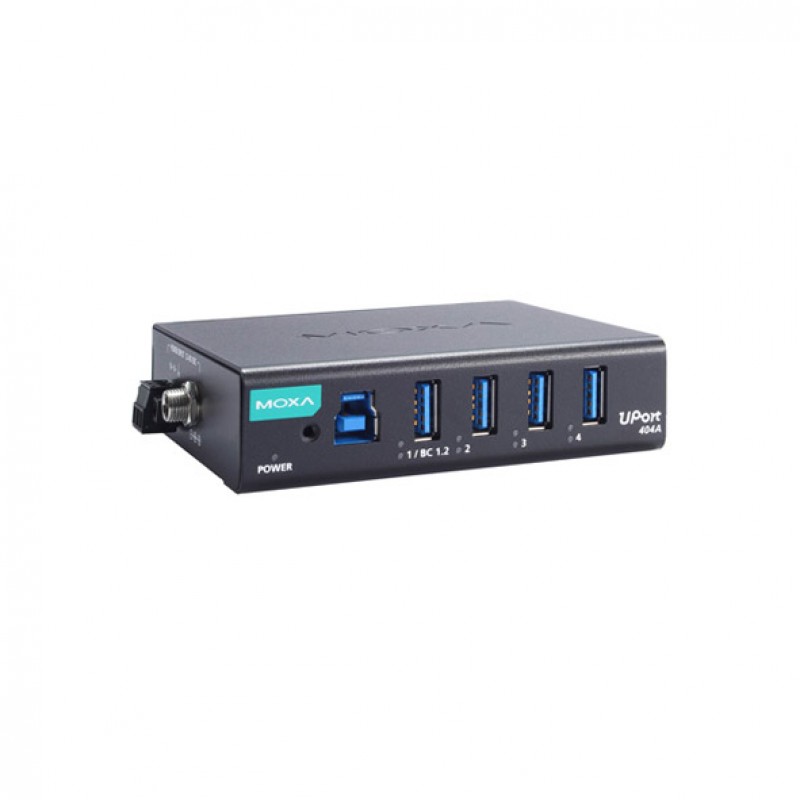

MOXA UPort 404A-T Industrial USB Hub

  • 4 x USB 3.2 ports
  • 12 to 40 VDC dual power inputs
  • Metal body
  • -40 to 85°C operating temperature

Description

The UPort® 400A Series industrial-grade USB 3.2 hubs can expand a USB port into 4 or 7 USB ports. The hubs are designed to provide true USB 3.2 Gen 1 SuperSpeed 5 Gbps data transmission rates through each port, even for heavy-load applications. The UPort® 400A has been awarded the USB-IF SuperSpeed certification, which is an indication that the product is a reliable high-quality USB 3.2 hub. In addition, the hubs are fully compliant with the USB plug-and-play spec and provide complete 900 mA power per port, ensuring that your USB devices function properly. The UPort® 400A hubs support a 12 to 48 VDC power range, which makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.



USB-IF Certification



The UPort® 404A USB 2.0 industrial-grade USB hubs have been awarded the USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the SuperSpeed USB operation of USB hubs designed as per the USB 3.2/2.0 specification. This means that the UPort® 400A supports SuperSpeed USB 3.2 Gen 1 for up to 5 Gbps USB transmission, is fully compliant with interoperability requirements, has enough power for devices to function, and facilitates a smooth transition back to SuperSpeed operation from the suspended state.



ESD Level 4 Protection



Electrostatic discharge (ESD) could be as severe as having more than 1,000 volts of ESD with a high rise time (dv/dt) breaking through the junction layer of protective devices. In order to avoid serious damage, Moxa’s UPort® 400A Series USB hubs provide ESD Level 4 (contact 8 kV, air 15 kV) protection, which increases the quality and value of the user’s end product.



USB Cable With a Firmer Connector



UPort® 400A comes with a USB cable with a latch and screw lock for a more secure connection between the UPort and your computer.


Inquire about the MOXA UPort 404A-T Industrial USB Hub, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
USB : 5 (UFP 1, DFP 4)
Micro USB
USB interface UFP: type B, DFP: type A
Upstream USB -
Standards and protocols
Interface and ports standards USB 1.1/2.0 compliant, USB 3.2 Gen 1
Features and capabilities
Maximum cable length between each hub -
Maximum number of connected devices -
Communication details
Maximum cable data transfer speed -
General
Compatible operating systems -
Power Requirements
Output Power USB Port Port 1: 900 mA / 1500 mA @ 5 VDC, BC 1.2 compliant, Rest of ports: 900 mA @ 5 VDC
Input Power 12 to 48 VDC
Physical Characteristics
Housing Metal
Weight 0.34 Kg
Operating Temperature -40 to 85°C
Operation Humidity 5% to %95 non-condensing
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV/ Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 2 kV; IEC 61000-4-5 Surge: Power: 2 kV; IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; IEC 61000-4-8 PFMF; Safety: EN 62368-1, UL 62368-1, KC; Environmental Testing: IEC 60068-2-1; RoHS; CRoHS; WEEE
LED Indicators
Status indicator
Package Checklist
Power adapter
USB cable
Hardware installation guide
