Description

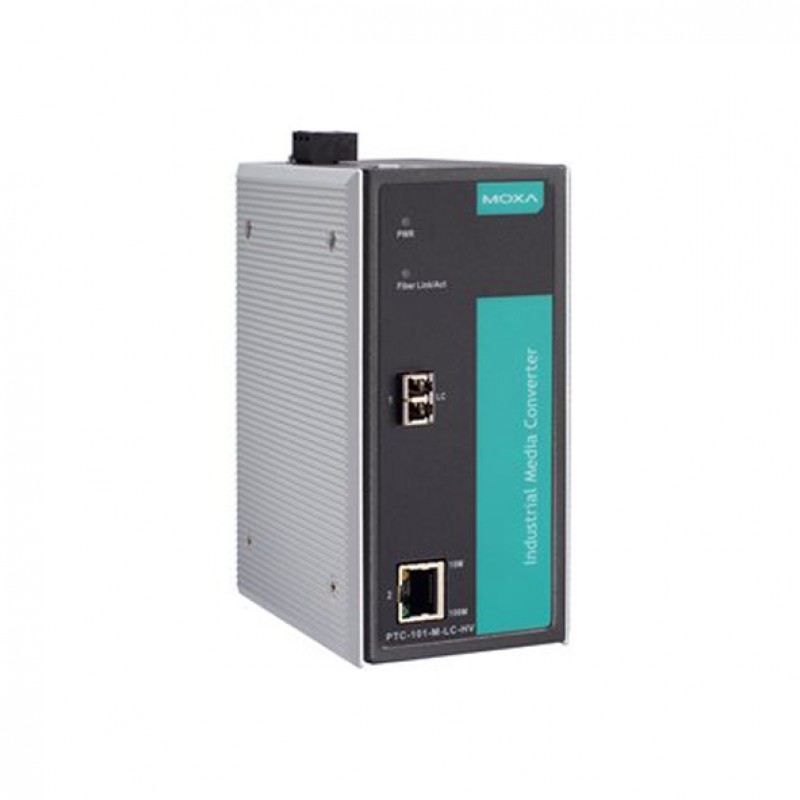

The PTC-101 Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.
You can also find the PTC-101-M-ST-LV, PTC-101-M-ST-HV,
PTC-101-M-SC-LV, and PTC-101-M-SC-HV models in the Industrial Media Converters.
Easy World Automation offers the
easiest way to buy the MOXA PTC-101-M-LC-LV Ethernet To Fiber Converter in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 1 LC Port |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| M12 port | |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3 and IEEE 802.3u |
| General | |
| Maximum cable length for data transfer | 5Km with multi mode fiber optic cable |
| MTBF | 1,211,613 hrs |
| Power Requirements | |
| Power consumed | 170 mA @ 20 VDC |
| Type of power input | - |
| POE Support | |
| Protection against reverse voltage | |
| Protection against overflow | |
| LED Indicators | |
| LNK/ACT | - |
| Power | |
| Buttons | |
| DIP Switch | - |
| Physical Characteristics | |
| Standards and Certifications | EMC, EMI, EMS, Environmental Testing, Safety, Vibration, Power Substation, EN 50155, EN 50121-4 |
| Housing | Metal |
| Dimensions | 152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in) |
| Weight | 875 g (1.92 lb) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
