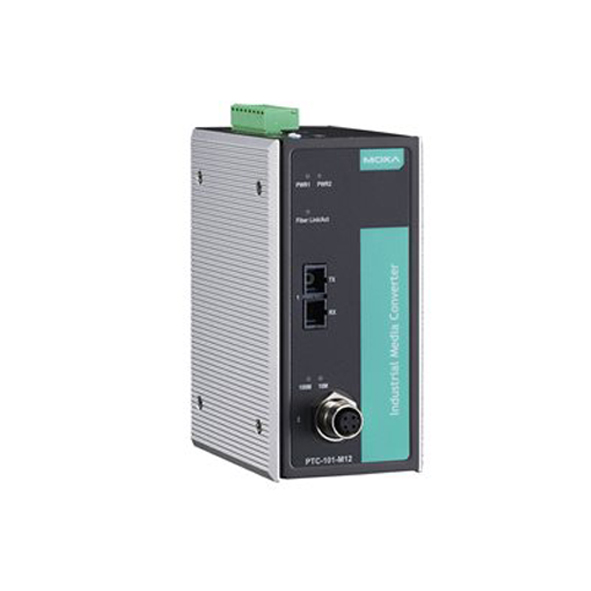

MOXA PTC-101-M12-S-SC-LV-CT-T Ethernet To Fiber Converter
- 1 x 10/100Mbps T(x) M12 port and 1 x 100Mbps F(x) single-mode port with SC connector
- 20 to 72 VDC input power
- Metal body
- -40 to 85°C operating temperature
- Brand: MOXA
- Product Code: PTC-101-M12-S-SC-LV-CT-T
Description
The PTC-101 Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.
You can also find the PTC-101-M12-S-SC-LV-T, PTC-101-M12-S-ST-LV-CT-T, and PTC-101-M12-S-ST-LV-T models in the Industrial Media Converters.
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA PTC-101-M12-S-SC-LV-CT-T Ethernet To Fiber Converter through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 1 SC Port |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| M12 port | : 1 x 10/100Mb (Megabit) Port |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3 and IEEE 802.3u/x |
| General | |
| Maximum cable length for data transfer | 40Km with single mode fiber optic cable |
| MTBF | 1,211,613 hrs |
| Power Requirements | |
| Power consumed | 170 mA @ 20 VDC |
| Type of power input | - |
| POE Support | |
| Protection against reverse voltage | |
| Protection against overflow | |
| LED Indicators | |
| LNK/ACT | |
| Power | |
| Buttons | |
| DIP Switch | - |
| Physical Characteristics | |
| Standards and Certifications | EMC, EMI, EMS, Environmental Testing, Safety, Vibration |
| Housing | Metal |
| Dimensions | 152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in) |
| Weight | 875 g (1.92 lb) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
