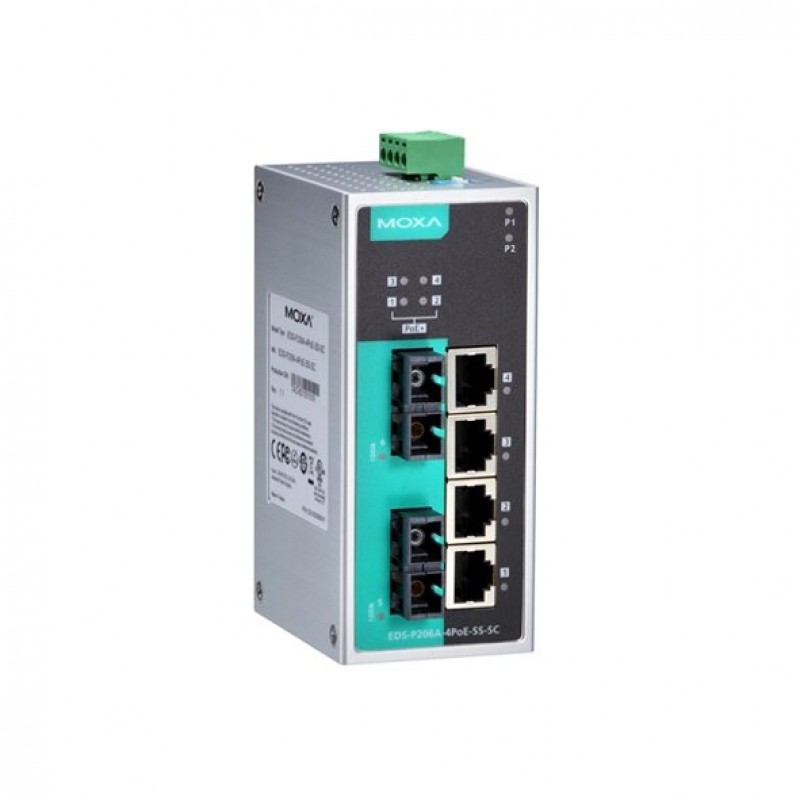

MOXA EDS-P206A-4PoE-SS-SC-T Unmanaged Ethernet Switches
- 4 100Mbps PoE ports and 2 100Mb single-mode fiber optic ports
- Din-rail
- Metal body
- Suitable for work in a wide range of temperatures
- Brand: MOXA
- Product Code: EDS-P206A-4PoE-SS-SC-T
.png)
Description
The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port. The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.
You can also find the EDS-P206A-4PoE-T, EDS-P206A-4PoE-M-SC, and EDS-P206A-4PoE-MM-SC models in the DIN-Rail Ethernet Switches.
Explore our extensive range of
industrial automation products such as MOXA EDS-P206A-4PoE-SS-SC-T Unmanaged Ethernet Switches in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 6 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 2 SC Ports |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Prots | : 4 Ports |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Power Requirements | |
| Maximum power consumption | 30W (in PoE mode) |
| Power Consumption (Output Adapter) | 48V DC, 7.5A |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | |
| MTBF | 645138 hour |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1 |
| Switch type | UnManaged |
| Port Aggregation | - |
| Physical Characteristics | |
| Dimensions | 3x115x70mm |
| Housing | Metal |
| Installation | Din-rail |
| Operating Temperature | -40 to 75 ° C |
| Operation Humidity | 5% to %95 RH non-condensing |
| Standards and Certifications | FCC, UL 508, IP30 |
| Storage Humidity | - |
| Storage Temperature | -40 to 85 ° C |
| Weight | 0.375Kg |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow Control |
| Protocols and management standards | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
