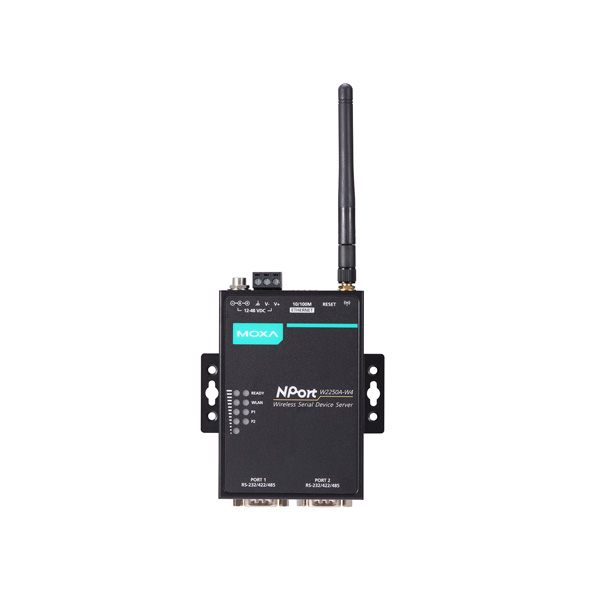

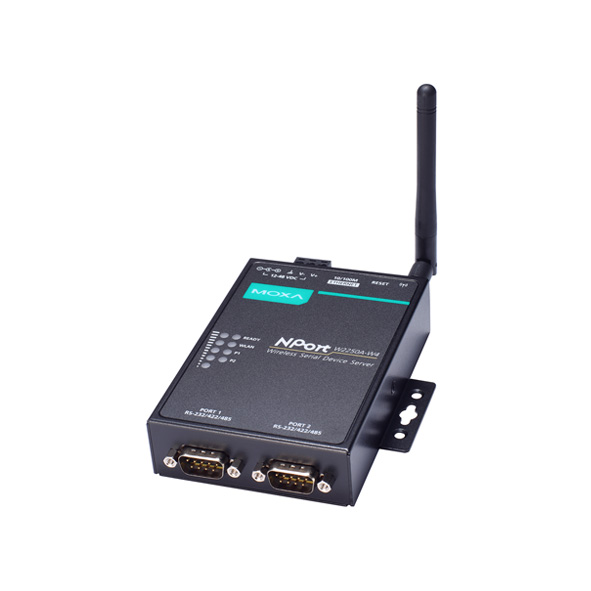

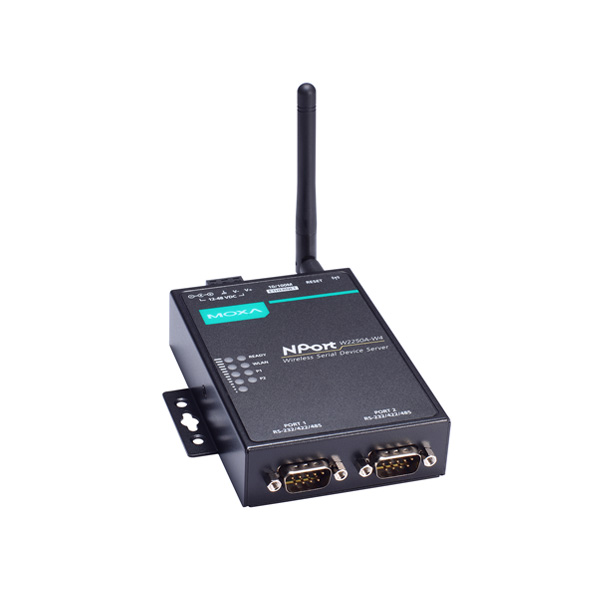

MOXA NPort W2250A-W4-T-US Serial to Wireless Device Server
- Supports US Frequency Bands
- 1 x 10/100Mbps T(x) Ethernet port (RJ45 connector)
- 2 x RS-232/422/485 Serial ports (DB9 male connector)
- 12 to 48 VDC dual power inputs
- Desktop, DIN-rail, and Wall mounting
- Metal body design
- -40 to 75°C operating temperature range
Description
The NPort® W2150A-W4 and W2250A-W4 are the ideal choice for
connecting your serial and Ethernet devices, such as PLCs, meters, and sensors,
to a wireless LAN. Your communications software can access the serial devices
from anywhere over a wireless LAN. Moreover, the wireless device servers
require fewer cables and are ideal for applications that involve difficult
wiring situations. In Infrastructure Mode, the NPort® W2150A-W4 and NPort®
W2250A-W4 can connect to Wi-Fi networks at offices and factories to allow users
to move, or roam, between several APs (access points), and offer an excellent
solution for devices that are frequently moved from place to place.
You can also find the NPort W2250A-W4-US, NPort W2150A-W4-T-US, and NPort W2150A-W4-US models in the Serial-to-Ethernet Converters.
Experience the convenient way to purchase the MOXA NPort W2250A-W4-T-US Serial to Wireless Device Server in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Digital Output Channels | |
| Alarm Contact Channels | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Protocols | - |
| Serial Interface | |
| Number of Ports | 2 Ports |
| Serial Standards | RS-232, RS-422, RS-485 |
| Connector | DB9 male |
| Console Port | |
| Serial Communication Parameters | |
| Baudrate | 300 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
| Isolation | |
| Serial Signals | |
| RS-232 | - |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| Communication details | |
| Wireless Standards | 802.11a/b/g/n |
| Maximum data transfer speed | 54Mbps |
| Maximum direct range | 100m |
| General | |
| Management | DHCP Option 82, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, Web Console |
| Compatible operating systems | Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | macOS Versions: 10.12 to 10.15, 11.x, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x |
| MTBF | 1,187,539 hrs |
| Automatic Reboot Trigger | Built-in WDT |
| Power Requirements | |
| Connection | - |
| Input Voltage | 12 to 48 VDC |
| Input Current | 455 mA @ 12 VDC |
| Security | |
| Security | Protocols: SNMPv3, SSHv2, HTTPS (TLS 1.2), Hardware-based Security: Secure Boot |
| Encryption | AES-128, AES-256, HMAC, RSA-1024, SHA-1, SHA-256, SHA-384 |
| Authentication | Local database, RADIUS |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | with ears, without antenna: 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in), without ears or antenna: 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in) |
| Installation | Desktop, DIN-rail mounting (with optional kit), Wall mounting |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Radio Frequency: CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301489-1/-17), MIC, KC, RCM, WPC; Safety: UL 62368-1, IEC 62368-1; Telcordia SR332 |
| Housing | Metal |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5% to %95 non-condensing |
| Weight | 191 g (0.42 lb) |
