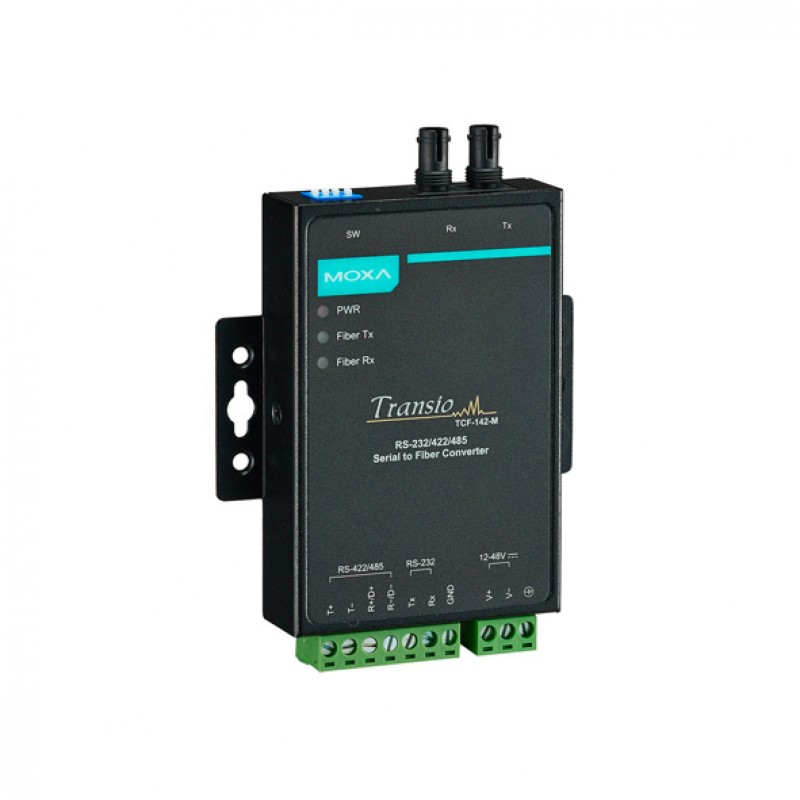

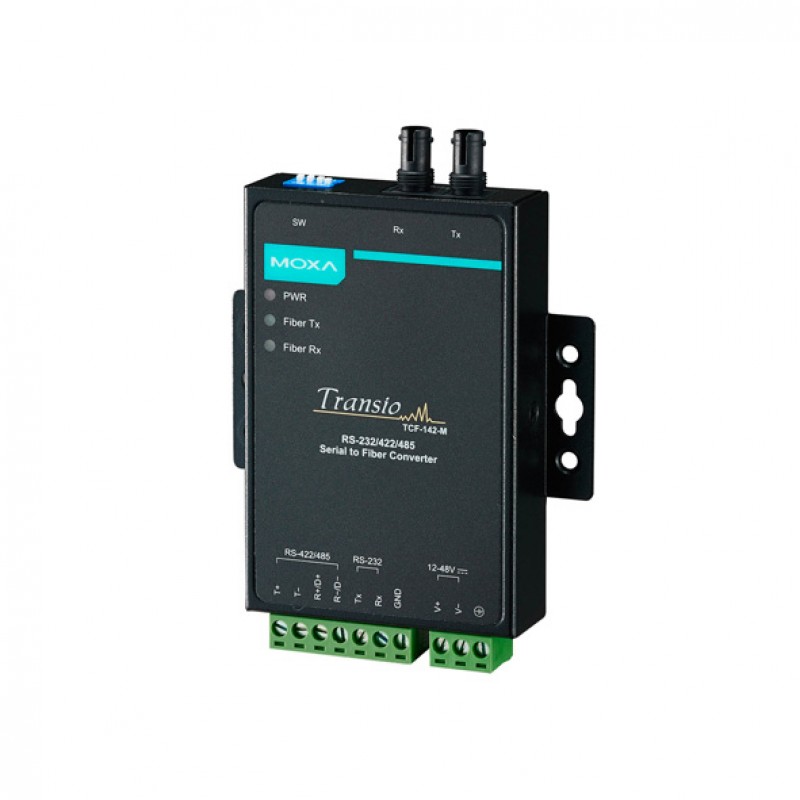

MOXA TCF-142-M-ST-T Serial to Fiber Converter

1 x RS-232/422/485 port, 1 x 100Mbps F(x) multi-mode port with ST connector
12 to 48 VDC input power
Metal body
-40 to 75°C operating temperature
Support for ring topologies or point-to-point

Brand: MOXA
Product Code: TCF-142-M-ST-T

Datasheet

Description

The TCF-142 media converters are equipped with a multiple interface circuit that can handle RS-232 or RS-422/485 serial interfaces and multi-mode or single-mode fiber. TCF-142 converters are used to extend serial transmission up to 5 km (TCF-142-M with multi-mode fiber) or up to 40 km (TCF-142-S with single-mode fiber). The TCF-142 converters can be configured to convert either RS-232 signals, or RS-422/485 signals, but not both at the same time.

Automatic Baudrate Detection

The TCF-142 converters can automatically detect the serial baud rate, which is an extremely convenient feature. Even if a device’s baud rate is changed, the signal will still be transmitted through the media converter without any data loss.

You can also find the TCF-142-M-ST-RM, TCF-142-M-ST, and TCF-142-S-SC models in the Industrial Media Converters.

Experience the convenient way to purchase the MOXA TCF-142-M-ST-T Serial to Fiber Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

Specification

Converter specifications
Data transfer speed	50 bps to 921.6 kbps (supports non-standard baudrates)
Maximum data transmission distance	5 km
Minimum output power converter	-5dBm
Sensitivity to receiving information	-25dBm
Wavelength	850nm
Power Requirements
Maximum power consumption	-
Power Consumption (Output Adapter)	12V DC, 0.14A
Power Input Plugin ( Redundant )
Standards and protocols
Point-to-point topology	Half-duplex or full-duplex
Ring topology	Half-duplex
RS-232 Signals	Tx, Rx, GND
RS-422 Signals	TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w Signals	Data+, Data-, GND
Interface
10/100Mb RJ45 (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
10/100/1000Mb (Gigabit) POE Ports
100Mb Fiber optic multi mode (Megabit) Ports	: 1 x multi-mode port with ST connector
10/100/1000Mb RJ45 (Gigabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
Number of 10/100Mb PoE port
USB
DSL
Serial port	: 1 x RS-232/422/485 port
Other ports
General
Fan / Fanless	Fanless
MTBF	780,480 hour
Require cable diameter	50/125μm, 62.5/125μm, 100/140μm
Physical Characteristics
Dimensions	90x100x22mm
Housing	Metal
Installation	Desktop converter and Din-rail and wall mount
Isolation
Operating Temperature	-40 to 75° C
Operation Humidity	5% to %95 non-condensing
Protection against excessive consumption	: 1.1A
Protection against reverse flow
Standards and Certifications	Safety: UL 60950-1; EMC: CE, FCC; EMI : FCC Part 15 Subpart B Class B, EN 55022 Class B; EMS : EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 2, EN 61000-4-4 (EFT) Level 2, EN 61000-4-5 (Surge) Level 2, EN 61000-4-6 (CS) Level 2, EN 61000-4-8 (SFMF) Level 1; Green Product : RoHS, CRoHS, WEEE
Storage Temperature	-40 to 75 ° C
Weight	0.32Kg
LED Indicators
LED Per Port
Power
Package Checklist
Hardware installation guide
Power adapter
Power cable
