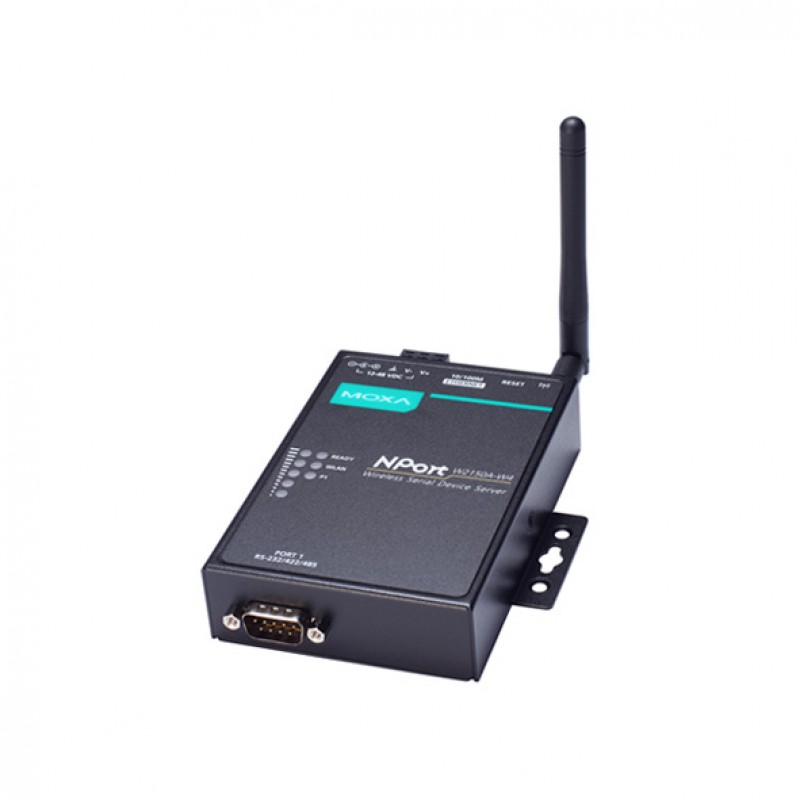

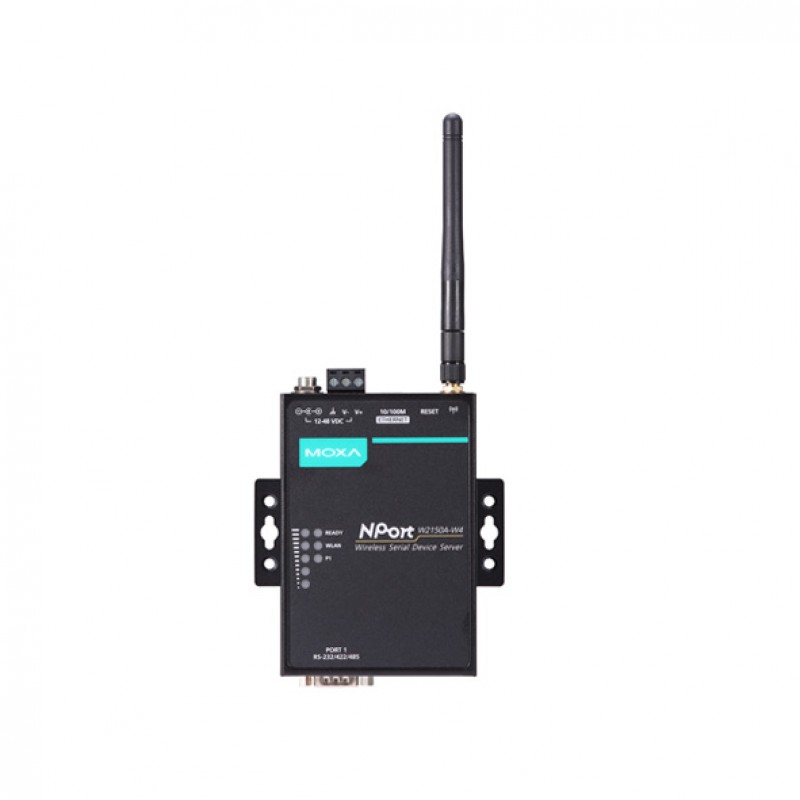

MOXA NPort W2150A-W4-US Serial to Wireless Device Server
- WLAN Channels: Europe bands (EU), (For other Bands like US, KC,... please contact us)
- Links serial and Ethernet devices to an IEEE 802.11a/b/g/n network
- WPA/WPA2 Enterprise IEEE 802.1X/RADIUS (EAP-TLS 1.3)
- 1 x 10/100Mbps T(x) ports and 1 x RS-232/422/485 Serial ports
- 12 to 48 VDC input power
- Metal body
- 0 to 55°C operating temperature
Description
The NPort® W2150A-W4 and W2250A-W4 are the ideal choice for
connecting your serial and Ethernet devices, such as PLCs, meters, and sensors,
to a wireless LAN. Your communications software can access the serial devices
from anywhere over a wireless LAN. Moreover, the wireless device servers
require fewer cables and are ideal for applications that involve difficult
wiring situations. In Infrastructure Mode, the NPort® W2150A-W4 and NPort®
W2250A-W4 can connect to Wi-Fi networks at offices and factories to allow users
to move, or roam, between several APs (access points), and offer an excellent
solution for devices that are frequently moved from place to place.
You can also find the NPort W2150A-W4-T-US, NPort W2250A-W4-T-US, and NPort W2150A-T-US models in the Serial-to-Ethernet Converters.
You can Buy the MOXA NPort W2150A-W4-US Serial to Wireless Device Server via inquiring online at a competitive
price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Enjoy the cost-effective shipping options at a specific time in your location.
Specification
| Interface | |
|---|---|
| 10Mbps RJ-45 Ports | |
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| RS-232 Ports | |
| RS-422/485 Ports | |
| RS-232/422/485 Ports | : 1 Port |
| Serial port specifications | |
| Serial connection type | DB9-M |
| Serial Communication Parameters | Data Bits: 5, 6, 7, 8; Stop Bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, None |
| Data transfer speed ( Baudrate ) | 0.03Kps to 921.6kbps |
| Protection against electrostatic discharge | 15KV |
| Electrical isolation | |
| Communication details | |
| Wireless Standards | IEEE 802.11a/g/b, IEEE 802.11i |
| Maximum data transfer speed | 54Mbps |
| Maximum direct range | 100m |
| General | |
| Management | Web Console, Serial Console, Telnet Console, Windows Utility, SNMP MIB-II , NPort Search Utility, NPort Windows Driver Manager |
| MTBF | 1,356,464 hrs |
| Compatible operating systems | Windows 11/10/8.1/8/7/Vista/XP/ME/98/95 Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | macOS Versions: 10.12 to 10.15, 11.x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5. x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x |
| Power Requirements | |
| Power Consumption (Output Adapter) | 12V DC, 0.179A to 48V DC |
| Security | |
| Security | WEP, WPA, WPA2, WPA2 |
| Encryption | 128-bit TKIP/AES-CCMP EAP-TLS, PEAP/GTC, PEAP/MD5, PEAP/MSCHAPV2, EAP-TTLS/PAP, EAP-TTLS/CHAP, EAP-TTLS/MSCHAP, EAP-T |
| Features and capabilities | |
| Display | |
| Keyboard | |
| The automatic restart (reset) | : WDT |
| Alarm feature | : RTC |
| Standards and protocols | |
| Network protocol | ICMP, IPv4, TCP, UDP, DHCP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, SNTP, SSH, HTTPS |
| Data transfer protocol | HTTPS, SSH |
| Physical Characteristics | |
| Dimensions | 77x111x26mm |
| Safety | UL 62368-1, IEC 62368-1 |
| EMC | CE, FCC |
| EMI | FCC Part 15 (Subpart B Class A, Subpart C, Subpart E), VCCI |
| EMS | EN 55022 Class A |
| Marine | |
| Medical | |
| radio Physical standard | CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301489-1/-17), MIC, KC, RCM, WPC |
| LAN port Protection against magnetic fields | 1.5KV |
| Housing | Metal |
| Operating Temperature | 0 to 55 ° C |
| Storage Temperature | -40 to 75 ° C |
| Altitude | 2000m |
| Operation Humidity | 5% to %95 non-condensing |
| Weight | 0.185 Kg |
