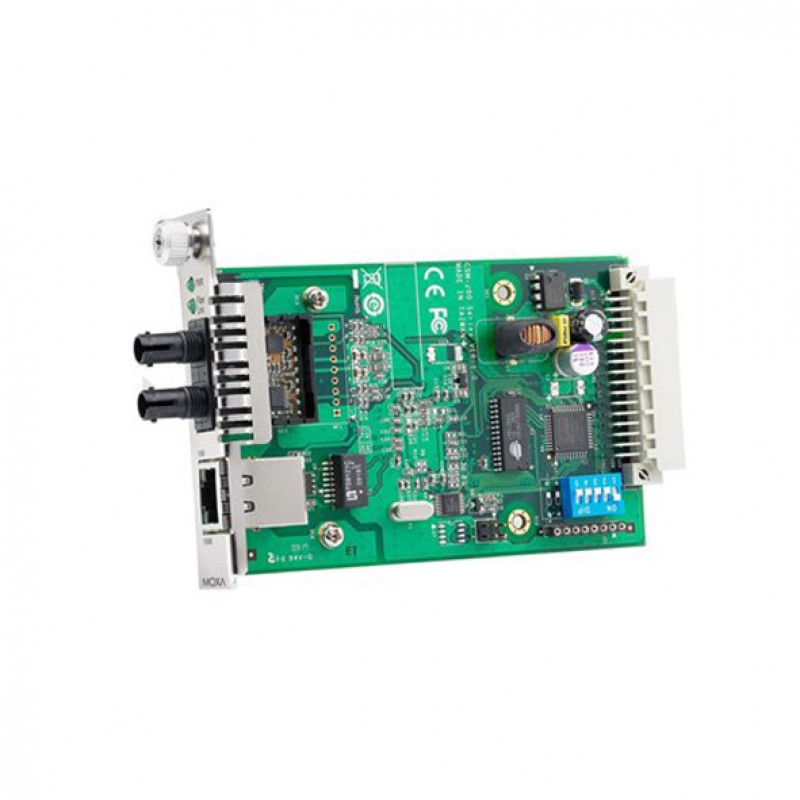

MOXA CSM-200-1213 slide-in Ethernet-to-Fiber Media Converters
- 1 x 10/100BaseT(X) Ports (RJ45 connector)
- 1 x 100BaseFX Ports (multi-mode ST connector)
- 5 KM Typical data transmission distance on fiber
- 12 VDC input power range
- LFP (Link Fault Pass-Through) and FEF (Far End Fault)
- 0 to 55°C operating temperature range
Description
The CSM-200 slide-in Ethernet-to-fiber media converters are designed for the NRack System™. The modules provide media conversion from 10/ 100BaseT(X) to 100BaseFX (SC/ST connectors), and can be installed in any NRack System™ chassis.
You can also find the CSM-200-1214 and CSM-200-1218 models in the Industrial Media Converters.
Experience
the convenient way to purchase the MOXA CSM-200-1213 slide-in Ethernet-to-Fiber Media Converters in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman).
Our sales experts will provide the most helpful information about the price
and sale conditions for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 1 Port (ST connector) |
| 1000Mb Fiber optic multi mode (Gigabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| M12 port | |
| Alert Output | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3u for 100BaseT(X) and 100BaseFX |
| General | |
| Maximum cable length for data transfer | 5 KM |
| MTBF | 1,454,560 hrs |
| Power Requirements | |
| Input Voltage | 12 VDC |
| Input Current | 180 mA @ 12 VDC |
| Overload Current Protection | Supported |
| Type of power input | - |
| Power Consumption | 180 mA @ 12 VDC |
| Physical Characteristics | |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Environmental Testing: IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; Telcordia (Bellcore), GB |
| Housing | - |
| Dimensions | 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in) |
| Weight | 0.115Kg |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Installation | Can be installed in any NRack System™ chassis |
