Westermo Lynx-3510-E-F2G-P8G-LV-CT Managed Ethernet Switch
- Layer 3 functionality switching and routing
- 8 x 10/100/1000 Mbps PoE ports (RJ45 connector)
- 2 x 1 Gbit/s SFP fiber ports
- Supports 802.3at/af (PoE+/PoE)
- Ultra-robust IP40 metal housing
- 54 VDC input power range
- -40 to +70°C operating temperature
.png)
Description
The Lynx 3510 PoE is a series of compact, high-performance industrial Power over Ethernet switches. They combine outstanding performance with the capability to supply power to high-power devices over long distances. With all 8 copper ports providing up to 30 W output per port and a total budget of 240 W, the possibilities for lean and simple installations are ideal; only one cable is needed for both connectivity and power. In addition, the flexibility is further increased by the advanced PoE management functions.
The switches are designed with the harshest industrial environments in mind and are capable of withstanding extreme temperatures, vibrations, humidity, and electrical environments. Using only industrial-grade components contributes to ensuring market-leading mean time between failure (MTBF), maximized service life, and reduced operational and life cycle costs.
The switches are thoroughly tested both by Westermo and external test institutes to meet a rich selection of EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.
Powered by the next-generation WeOS operating system, ensuring robust operation and support for an expanding range of protocols and features. The Lynx 3510 PoE features intuitive setup and configuration, removing the need for specialized IT support or training and enabling easy and cost-efficient installation. In addition, recognizing the growing sophistication of cyberattacks, an extensive suite of cybersecurity tools is available, including hardware support for secure boot. These tools can be used to build networks in compliance with the IEC 62443 standard, which defines technical security requirements for data communication network components.
The Lynx 3510 PoE switches are the ideal switches for handling big data and high bandwidth requirements typically found within transportation, manufacturing, energy, smart cities, and other applications.

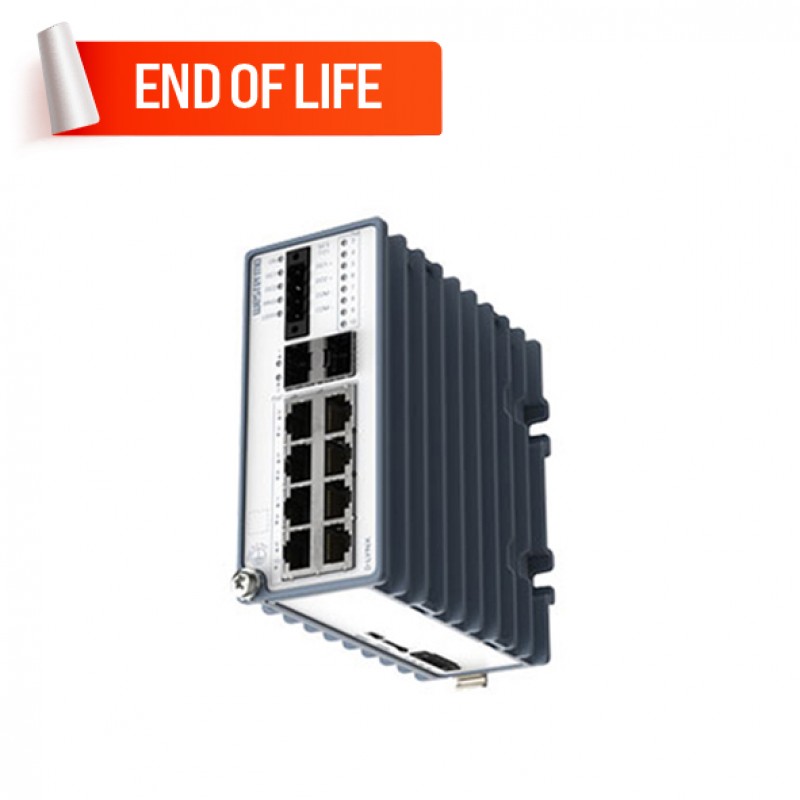

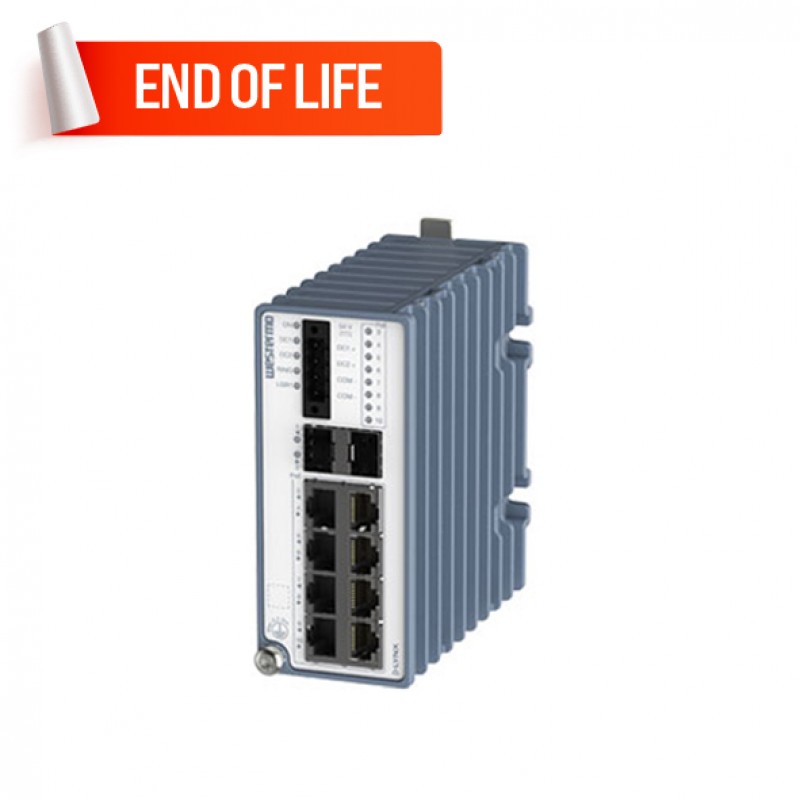

End of Life Product - No Replacement
Please note that the Lynx 3510-E-F2G-P8G-LV-CT has been phased out. You can explore the Lynx 3510-E-F2G-P8G-LV, Lynx 3510-E-F2G2.5-P8G-LV, Lynx 3510-E-F2G2.5-T8G-LV, Lynx 3310-E-F2G-T8-LV, and Lynx 3510-F2G2.5-T8G-LV models in the Managed Ethernet Switches.
Easy World Automation offers the
easiest way to buy the Westermo Lynx-3510-E-F2G-P8G-LV-CT Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 2 Ports |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | : 8 Ports (RJ45 connector), 802.3at/af (PoE+/PoE) |
| Other ports | : 1 x Console Port (USB-C, emulate serial port, 115200 bps), 1 x Micro SD slot (Secure Digital 2.0), 1 x Digital input channel and 1 x Digital output channel (screw terminal connector) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.1 to 4.8 A |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 54 VDC, Class III (SELV/PELV) |
| Operating Voltage | 802.3at (PoE+): 53 to 57 VDC, 802.3af: 48 to 57 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | Telcordia: 638,000 hours, MIL-HBDK-217F : 583,000 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 52 x 134 x 130 mm (2.05 x 5.28 x 5.19 inches) |
| Housing | Full metal |
| Installation | DIN-rail mounting |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Operation Humidity | 5-95% relative humidity |
| Standards and Certifications | EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments; Trackside: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Marine: DNV rules for classification - Ships and offshore units; Ingress protection: IP40; Corrosive gases: IEC 60068-2-60; Telcordia; MIL-HBDK-217F; Shock IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64 |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Weight | 1100 gr |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | Westermo configuration tool WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, SSHv2 and Telnet, Local and Central Authentication (RADIUS/TACACS+), Role Based Access Control (RBAC), Password Compliance Policy, SNMPv1/v2c/v3, Secure Copy (SCP) for remote file upload and download, Local file management (via HTTP, FTP, TFTP and SCP), Load/save files from/to external memory, Configuration and Deployment using external memory, Tech support button, Flexible alarm and event handling system, RFC5424/RFC3164 Syslog (log files and remote syslog server), Port monitoring |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
