Description
The DA-682A-Ethernet Series expansion modules include a 4-port LAN module, 8-port switch module, and 4-port fiber LAN module for setting up industrial communication applications with Ethernet-based devices. All modules are designed to offer the greatest flexibility for setting up applications and performing industrial tasks. In particular, users can swap out modules quickly and easily.
End of Life Product - No Replacement
Please note that the DA-682A-Ethernet Series Expansion Modules has been phased out. You can explore the DA-681C Series and DA-682C Series in the x86 Computers.

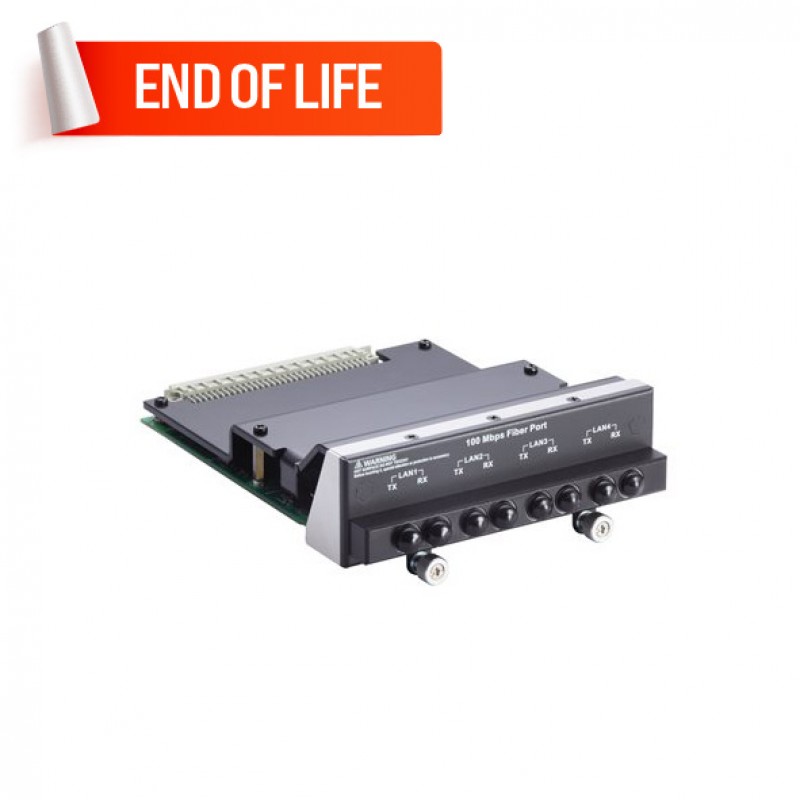

Inquire about the MOXA DA-FX04-MM-ST-T Fiber Ethernet Expansion Module, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| INTERFACE | |
|---|---|
| Ports | 4 x 100BaseFX Ports (multi-mode) |
| Connector | ST |
| Typical Distance | - |
| POWER REQUIREMENTS | |
| Power Information | - |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 132 x 150 mm (42 x 5.20 in) |
| Weight | 511 g (1.13 lb) |
| Operating Temperature | -25 to 60°C (-13 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB |
| MTBF | 884,764 |
