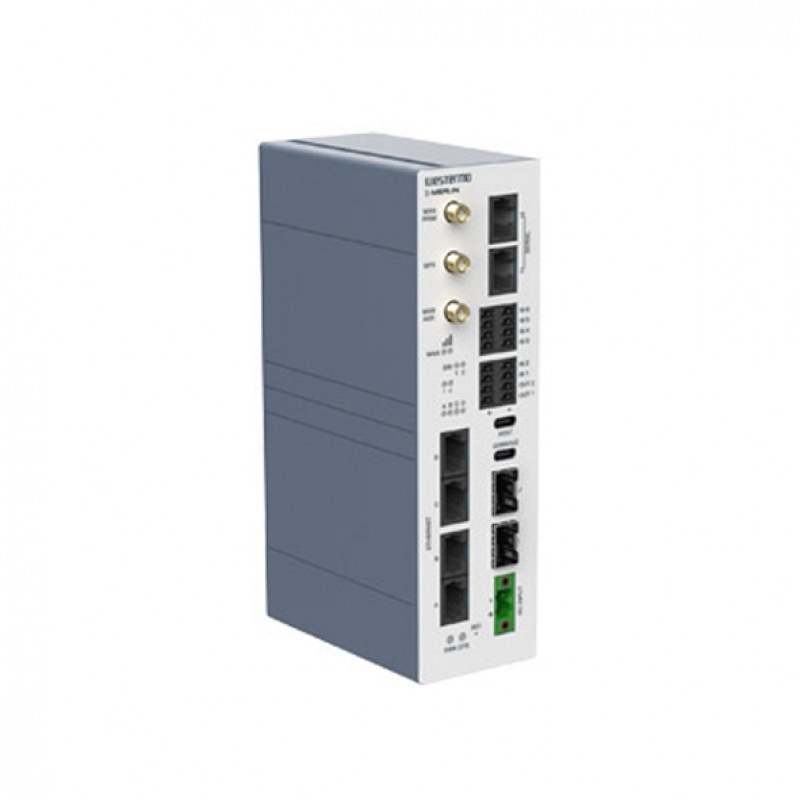

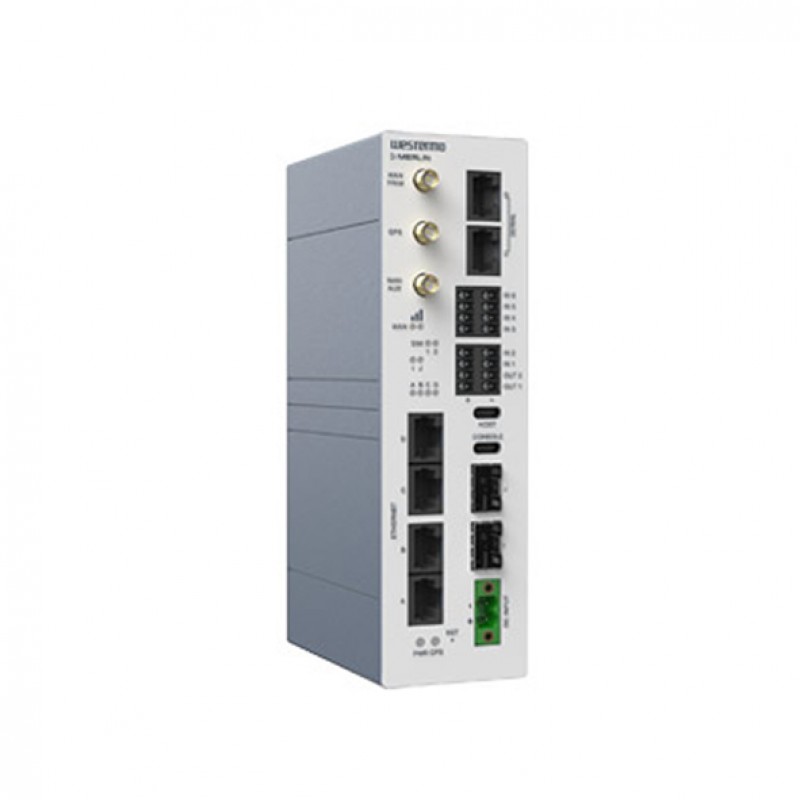

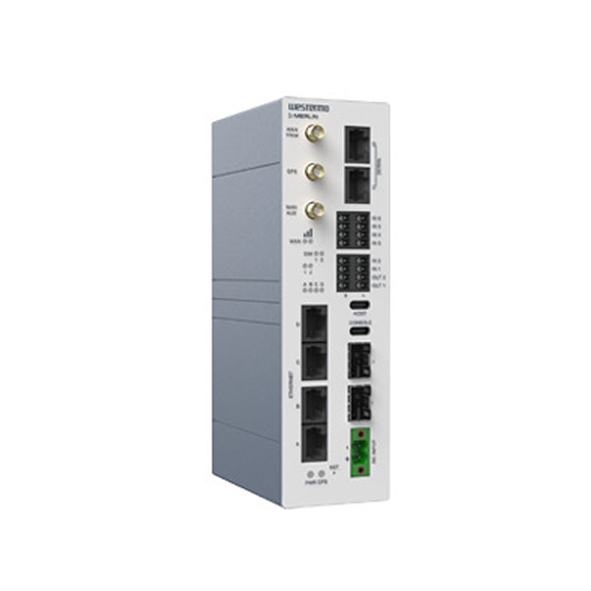

Westermo Merlin-4609-F2G-T4-S2-DI6-DO2-LV-PFG Industrial Cellular Router
- Supports North America Frequency Bands, LTE Cat 4
- 4 x 10/100 Mbit/s Ethernet Ports (RJ45 connector)
- Up to 2 x 1000 Mbit/s SFP Ports
- Up to 2 serial ports, each software configurable for RS232/RS485

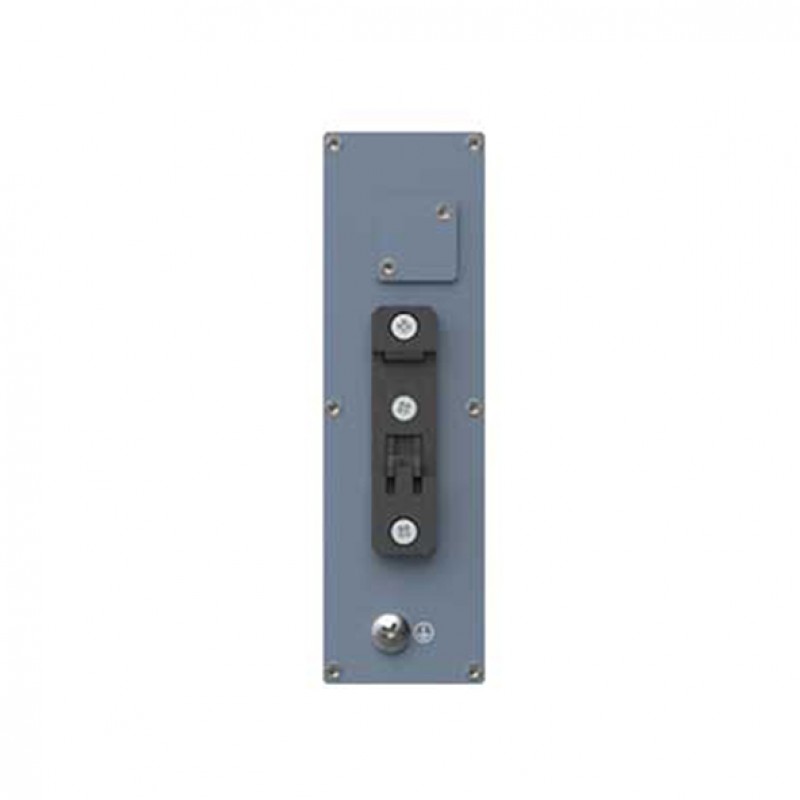

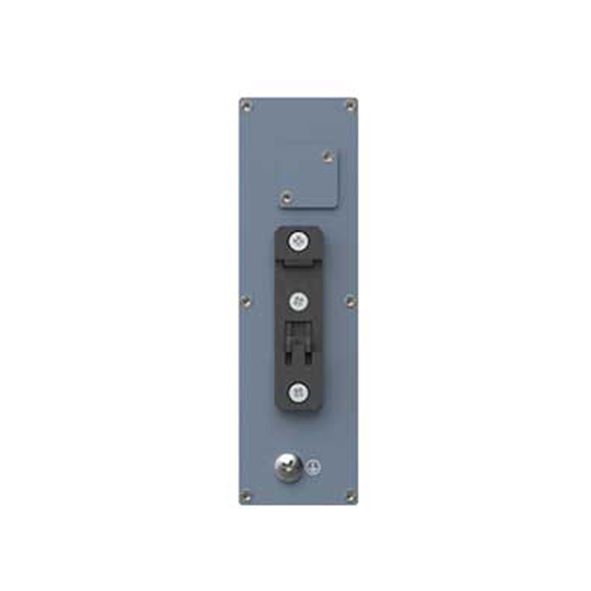

- 2 x Mini-SIM (2FF) card slots to rear, covered by metal plate
- IP40-rated metal body material design
- DIN-rail mount installation
- 12 to 48 VDC input power (Wide Range 9.6 to 60 VDC)
- -40 to +70°C operating temperature range
.png)
Description
The Merlin 4600 series of versatile cellular routers provides high-speed data network connectivity for demanding industrial, smart grid, and trackside applications. Coupled with the Zero Touch deployment software Activator, it provides cost-effective, reliable, and consistent onboarding of routers in large-scale projects.
This compact, rugged unit is suited to tight spaces. It meets the requirements of IEC 61850-3 Class 1 Medium Voltage substation and also railway trackside EN 50121-4. The power supply and Ethernet ports benefit from a high level of galvanic isolation, up to 4 kVrms. Its high MTBF and wide temperature range support maximum service life.
To achieve best-in-class cybersecurity, the Merlin 4600 series is equipped with a TPM (Trusted Platform Module) chip that keeps cryptographic keys secure. Secure Boot ensures that the unit boots using only software that is signed and trusted by the manufacturer. A set of cybersecurity tools is available as standard, including VPN and stateful Firewall support for data security and user authentication.
The built-in industrial protocol gateway enables several devices using different protocols to be accessed via a common protocol interface. The unit supports up to 6 digital inputs and 2 outputs for local control or monitoring. Support for more digital inputs and outputs is possible using external modules.
You can also find the Merlin-4609-F2G-T4-S2-DI6-DO2-LV-PFJ and Merlin-4609-F2G-T4-S2-DI6-DO2-LV-QFZ models in the Wireless Routers.
Discover industrial automation
solutions appropriate to your needs, and easily inquire about the Westermo Merlin-4609-F2G-T4-S2-DI6-DO2-LV-PFG Industrial Cellular Router through
our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 x Mini-SIM (2FF) card slots to rear, covered by metal plate |
| Ethernet Ports | : 4 x 10/100 Mbit/s Ethernet Ports (RJ45 connector), Up to 2 x 1000 Mbit/s SFP Ports |
| USB | : 1 x USB-C Console port |
| Digital Input and Output | : Up to 6 digital inputs for detecting remote contact open/close, Up to 2 relay contact outputs. 220 VDC, 2 Amp rating |
| Serial port | : Up to 2 serial ports, each software configurable for RS232/RS485 |
| Alert Output | |
| Band Options | 3G Bands: B2, B4, B5; LTE Bands: B2, B4, B5, B12, B13, B14, B17, B66 |
| Cellular Standards | LTE, 3G, 2G |
| Cellular Antenna Connectors | 3 x SMA compatible connectors |
| WLAN Standards | |
| WLAN Antenna Connector | |
| GPS Antenna Connector | GPS, GLONASS, BeiDou, Galileo |
| Radio specifications | |
| Radio Connection type | - |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | - |
| WiFi Radio Frequency | - |
| Software Specifications | |
| Routing Redundancy | VRRP |
| VPN | IPSec/L2TP/GRE/DMVPN |
| Firewall | NAT, Packet filtering, Port forwarding |
| Time Management | |
| Management | Web interface (HTTPS), SMS management support, CLI via console, SSHv2, TFTP, SNMPv1/v2c/3, Secure Copy (SCP), Flexible alarm and event system, Port monitoring |
| General | |
| LED Indicators | : Booting up, Power, Config, SIM, 3G/LTE cellular signal strength LED, LINK LED |
| MTBF | Telcordia: 825.000 hours |
| Operating mode | LTE Cellular Router/Gateway |
| Standards and protocols | |
| Protocols | IPv4 and IPv6, DHCP, DynDNS, NAT, NAT Traversal, NTP Client, VLAN support, Packet filtering, Port forwarding, BFD, BGPv4, OSPF, RIP (v1 and v2), IPSec/L2TP/GRE, DMVPN, SNMP v1/v2/v3, TLS 1.2, 802.1x authentication, IEC104, QoS, VRRP, VRF |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | Security: Stateful inspection firewall, RADIUS, TACACS+; Encryption: VPN encryption |
| Authentication | 802.1x authentication |
| Power Requirements | |
| Power Connector | - |
| Power Consumption (Output Adapter) | 7 W |
| Input Voltage | 12 to 48 VDC input power (Wide Range 9.6 to 60 VDC) |
| POE Support | |
| Input Current | 580 mA at 12 VDC, 170 mA at 48 VDC |
| Reverse Polarity Protection | Supported |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | DIN-rail mounting |
| Dimensions | 50 x 170 x 100 mm (2.0 x 6.7 x 3.9 inches) |
| Housing | Full metal |
| Weight | 750 g |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Storage Humidity | 5-95% relative humidity |
| Storage Temperature | -50 to +85°C (-58 to +185°F) |
| Type of Use | Industrial environment |
| Standards and Certifications | Ingress protection: IP40; Telcordia; EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-3, Emission residential environments, EN/IEC 61000-6-4, Emission industrial environments, EN 50121-4, Railway signalling and telecommunications apparatus, IEC 61850-3, Communication networks and systems for power utility automation – Part 3: General requirements; Safety: EN 62368-1, Safety Communication Technology, UL 62368-1 (pending); North American standards/approvals: UL 62368-1, FCC, PTCRB, AT&T, Verizon, T-Mobile (all pending) |
