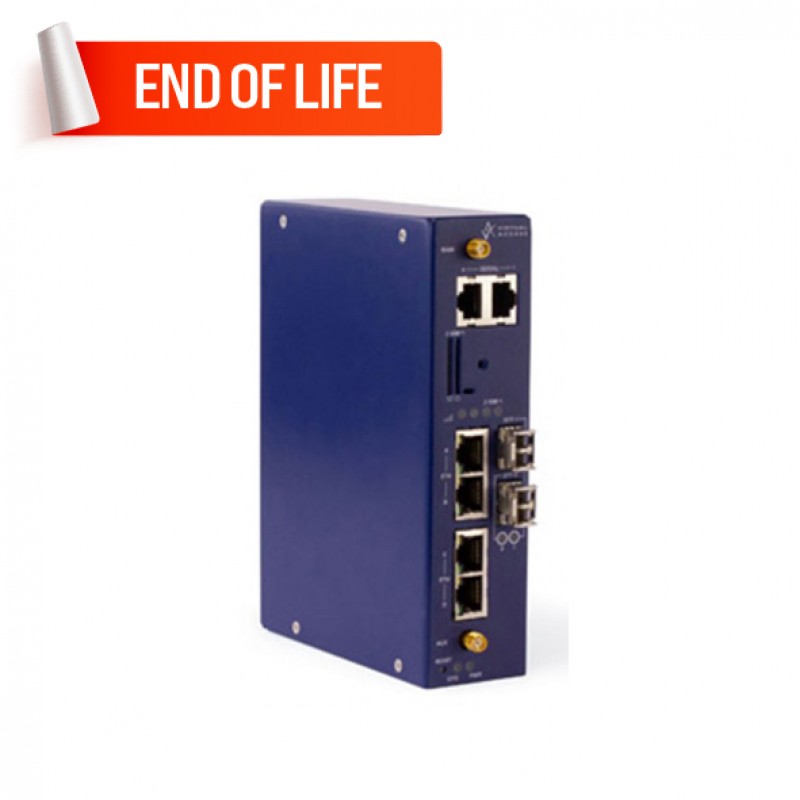

Westermo GW2028W-2SFP-QFR-DC24 Industrial Cellular 4G LTE Router
- DIN rail mounting
- 3G, LTE, dual fibre
- Quad Ethernet ports
- RS232 and RS485 serial ports
- Digital inputs for event detection
- Relay contact options
2 x 100/1000 Mbit/s SFP transceivers supported
.png)
Description
The Virtual Access GW2028 router is a versatile, LTE wireless router suitable for a variety of industrial deployments. The compact and rugged structure makes it a suitable product for deployments where remote access to OT networks in harsh environments is required such as CCTV, telemetry, SCADA, smart grid, digital signage, and intelligent traffic systems. The product line supports AT 4G/LTE connectivity as well as legacy HSPA+, HSPA, UMTS, EDGE, GPRS, and GSM.
Quad Ethernet Ports
The GW2028 router offers 4 x 10/100 Mbps Ethernet interfaces. Ports can be fully segmented using VLAN and 802.1q.
Optional Dual Fibre GbE
Dual fiber SFP GbE can be used in applications where a high degree of isolation is required, for example, an electricity substation or applications where distances of over 100m are required to connect to a host device.
Digital Inputs and Output
Two digital inputs are provided that can be used to detect remote contact states for monitoring door open/close or PIR detectors or similar. Custom scripts can be written to determine the action to be taken on the detection of an input state change. Syslog events, SNMP traps or emails can be generated. There is also a relay contact output. This can be controlled by a script on detecting any event within the device, or it can be controlled remotely.
Serial Ports
The RS232 serial and RS485 options facilitate direct connectivity to serial devices and enable remote console access.
Connection Monitoring & Dual SIM
The connection monitor ensures the GW2028 router deliveries maximum availability so long as the cellular network is available. For critical applications a dual SIM architecture ensures that a backup LTE network can take over should the primary network fail. The GW2028 router detects a network problem and fails over to a standby SIM/APN.
SMS Commands
The GW2028 router also supports SMS, so if the packet-switched side of the network is down you can still send commands to the router to perform diagnostics or even a reload.
Advanced Security and Routing Features
The GW2028 router offers the highest level of VPN (IPSec and SSL) encryption and advanced routing features. The inbuilt stateful firewall offers the user compliance to IEC 62443 and IEC 62351 industrial cybersecurity standards.
Centralized Management and Zero Touch Deployment
Specification
| Interface | |
|---|---|
| Memory card slot for storage | |
| MicroUSB | |
| SIM card slot | : 2 x SIM card socket with slot cover |
| WAN | : Wireless WAN with 3G and LTE options, Dual fibre option, Ethernet ports can optionally be configured for WAN use |
| LAN | : 4 x 10/100 Mbps base-T Ethernet ports |
| USB | |
| SFP Ports | : 2 x 100/1000 Mbit/s SFP transceivers supported |
| FXO / FXS | |
| DSL | |
| Digital Input and Output | : 2 x digital inputs for detecting remote contact open/close |
| Serial port | : 2 serial interfaces configured as: 2 x RS232, or 1 x RS232 + 1 x RS485 |
| Alert Output | - |
| Radio specifications | |
| Standards and Wireless Standards | - |
| 2G , 3G , 4G Standards | GSM, EDGE, GPRS, UMTS, WCDMA, HSPA, HSPA+, LTE FDD, LTE TDD |
| Radio Connection type | |
| WiFi Antenna | - |
| 4G / 3G / 2G Antenna | 3G or LTE rubber antenna supplied as standard |
| WiFi Gain Antenna | - |
| 4G / 3G / 2G Gain Antenna | - |
| Maximum WiFi data transfer speed | - |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | - |
| WiFi Radio Frequency | |
| 2G network frequency | - |
| 3G network frequency | - |
| 4G network frequency | - |
| Number of radio channels | |
| Maximum direct range | - |
| Maximum WiFi Output Power | - |
| Radio Channel Bandwidth | |
| Software Specifications | |
| VPN | : IPSec VPN : IKE Version 2, X.509 certificates, Elliptic Curve Cryptography (ECC), SHA2_512 support, AES_CBC (256), PFS, SCEP, DH_8192 |
| Firewall | |
| WPS | |
| Cloud computing feature | |
| Serial performance | Connects serial ports to TCP or UDP streams |
| General | |
| Operating mode | Cellular 4G LTE Router |
| Management | SMS management support, Local and remote advanced configuration through embedded web server and Java applets, HTTP/HTTPS, Command Line Interface via Telnet or SSH, TFTP client download/upload, SNMP agent |
| Standards and protocols | |
| Protocols | HTTP, HTTPS, DHCP server/client, DynDNS, NAT, NAT Traversal, NTP Client, VLAN support, Packet filtering, Firewall, Port forwarding, BGPv4, OSPF, RIP (v1 and v2), IPSec/L2TP/GRE, DMVPN, SNMP v1/v2/v3, TLS 1.2, 802.1x authentication, IEC104, QoS, VRRP |
| Serial port standard | RS232/485 |
| Features and capabilities | |
| 3G phone calls | - |
| Create and edit phonebook | - |
| Send and receive SMS | |
| Security | |
| Security and Encryption | : IPSec and SSL |
| Authentication | : 802.1x authentication |
| Serial security | - |
| SSID | - |
| Power Requirements | |
| Power Consumption (Output Adapter) | 6 Watts maximum |
| POE Support | |
| Battery | |
| Type of power input | Isolated |
| Buttons | |
| Power button | |
| 3G / WAN button | |
| WPS button | |
| Reset | |
| LED Indicators | |
| Phone | |
| SMS | |
| 3G / 2G | |
| WAN | |
| LAN | |
| Power | |
| Internet | |
| Wireless Signal Strength | |
| WPS | |
| Physical Characteristics | |
| Dimensions | 40(W) 115(D) 160(H) mm |
| Weight | 500g |
| Operating Temperature | -40°C to +70°C |
| Type of Use | Industrial environments |
| Standards and Certifications | EN 60950 safety approval, EN 55022 and EN 55024 EMC, IEC 61850-3 |
