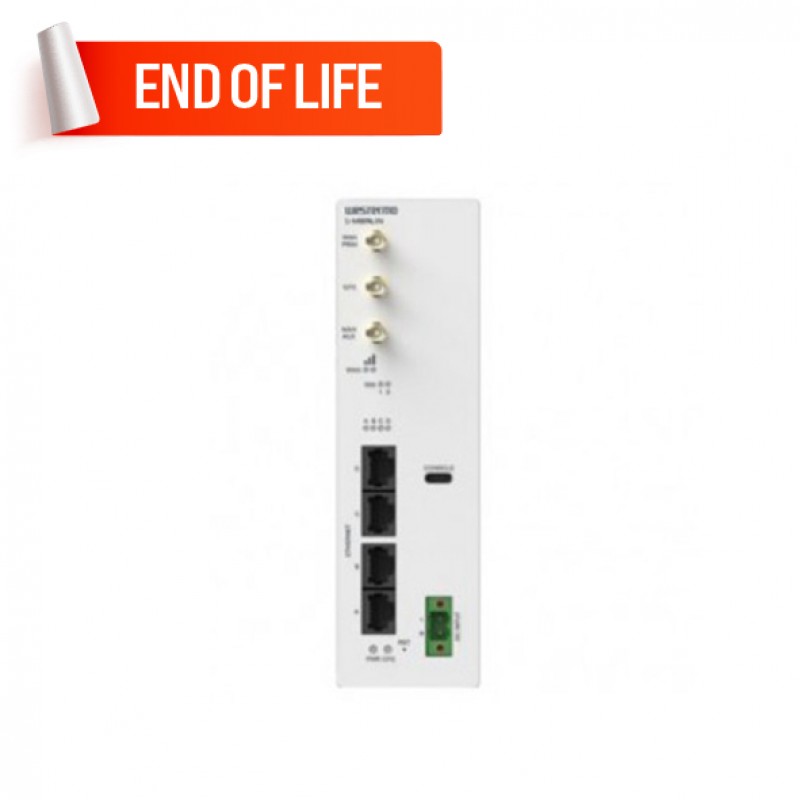

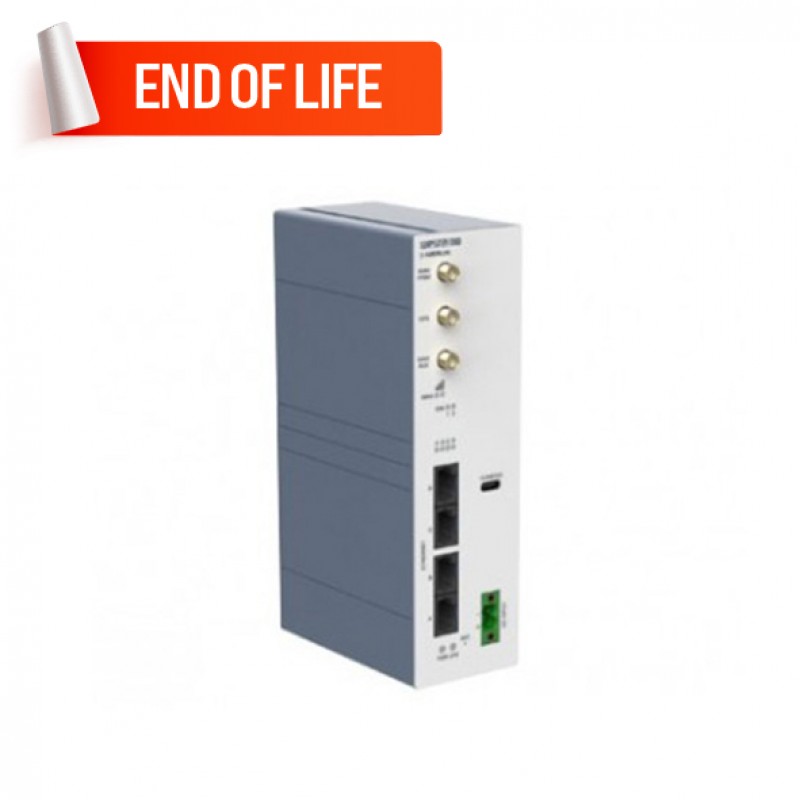

Westermo Merlin-4605-T4-DI6-DO2-LV-QFZ Industrial Cellular Router

Westermo Merlin-4605-T4-DI6-DO2-LV-QFZ Industrial Cellular Router
Westermo Merlin-4605-T4-DI6-DO2-LV-QFZ Industrial Cellular Router
Westermo Merlin-4605-T4-DI6-DO2-LV-QFZ Industrial Cellular Router
Westermo Merlin-4605-T4-DI6-DO2-LV-QFZ Industrial Cellular Router
Westermo Merlin-4605-T4-DI6-DO2-LV-QFZ Industrial Cellular Router
Westermo Merlin-4605-T4-DI6-DO2-LV-QFZ Industrial Cellular Router
Westermo Merlin-4605-T4-DI6-DO2-LV-QFZ Industrial Cellular Router
Westermo Merlin-4605-T4-DI6-DO2-LV-QFZ Industrial Cellular Router
Westermo Merlin-4605-T4-DI6-DO2-LV-QFZ Industrial Cellular Router

  • Supports EMEA Frequency Bands (LTE Cat 4)
  • 4 x 10/100 Mbit/s Ethernet ports (RJ45 connector)

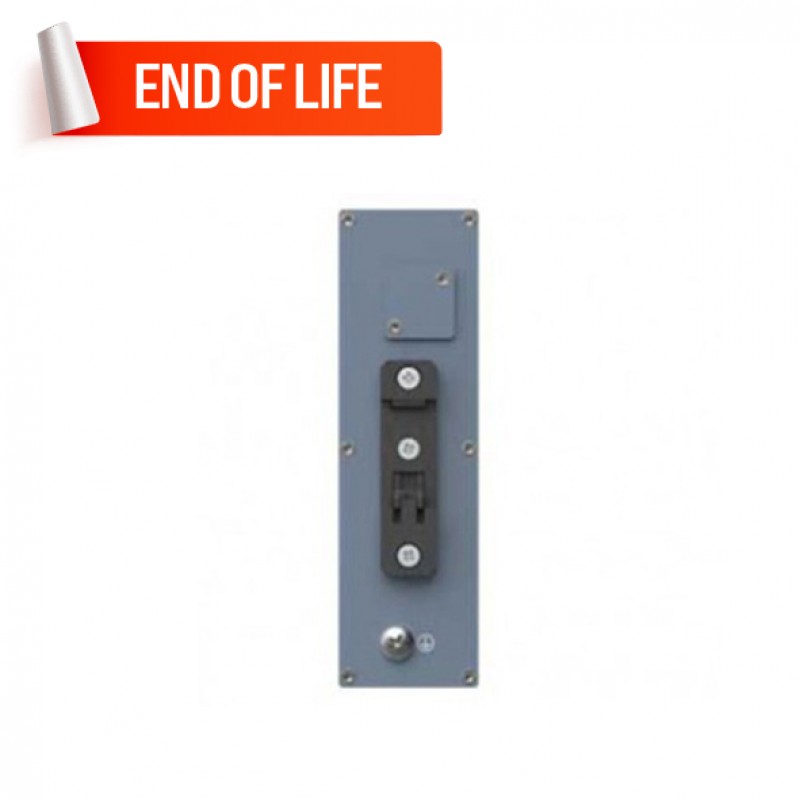

  • 2 x Mini-SIM (2FF) card slots to rear, metal plate
  • IP40-rated metal body design
  • 12 to 48 VDC Isolated power input (Wide Range 9.6 to 60 VDC)
  • -40 to +70°C operating temperature range

0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP40)
  • Power Utility
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Routers , Cellular LTE Routers , Cellular Gateways & Routers , Wireless & Cellular Routers , Industrial Data Communications , Industrial Ethernet Switches , Ethernet Switches , IEC 61850-3 Substation Switches , Industrial Cellular Solutions , Power Utility Products , Railway Transportation Products , Wireless Routers , Routers , Switches , Westermo Merlin 4600 Series

The Merlin 4600 series of versatile cellular routers provides high-speed data network connectivity for demanding industrial, smart grid, and trackside applications. Coupled with the Zero Touch deployment software Activator, it provides cost-effective, reliable, and consistent router onboarding in large-scale projects. This compact, rugged unit is suited to tight spaces. It meets the requirements of IEC 61850-3 Class 1 for Medium Voltage substations and also complies with railway trackside EN 50121-4. The power supply and Ethernet ports benefit from a high level of galvanic isolation, up to 4 kVrms. Its high MTBF and wide temperature range support maximum service life.

To achieve best-in-class cybersecurity, the Merlin 4600 series is equipped with a TPM (Trusted Platform Module) chip that keeps cryptographic keys secure. Secure Boot ensures that the unit boots using only software that is signed and trusted by the manufacturer. A set of cybersecurity tools is available as standard, including VPN and stateful Firewall support for data security and user authentication. The built-in industrial protocol gateway enables several devices using different protocols to be accessed via a common protocol interface. The unit supports up to 6 digital inputs and 2 outputs for local control or monitoring. Support for more digital inputs and outputs is possible using external modules.



End of Life Product - Replacement Available

Please note that the Merlin-4605-T4-DI6-DO2-LV has been phased out and replaced by the Merlin-4609-F2G-T4-S2-DI6-DO2-LV.


Explore our extensive range of industrial automation products such as Westermo Merlin-4605-T4-DI6-DO2-LV-QFZ Industrial Cellular Router in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.

3g modem : Interface
SIM card slot Yes : 2 x Mini-SIM (2FF) card slots to rear, covered by metal plate
Ethernet Ports Yes : 4 x 10/100 Mbit/s Ethernet Ports (RJ45 connector)
USB No
Digital Input and Output Yes : Up to 6 digital inputs for detecting remote contact open/close, Up to 2 relay contact outputs. 220 VDC, 2 Amp rating
Serial port No
Alert Output No
Band Options 2G Bands: 900/1800; 3G Bands: B1, B8; LTE Bands: B1, B3, B7, B8, B20, B28
Cellular Standards LTE, 3G, 2G
Cellular Antenna Connectors 3 x SMA compatible connectors
WLAN Standards No
WLAN Antenna Connector No
GPS Antenna Connector GPS, GLONASS, BeiDou, Galileo
3g modem : Radio specifications
Radio Connection type -
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G -
WiFi Radio Frequency -
3g modem : Software Specifications
Routing Redundancy VRRP
VPN IPSec/L2TP/GRE/DMVPN
Firewall NAT, Packet filtering, Port forwarding
Time Management No
Management Web interface (HTTPS), SMS management support, CLI via console, SSHv2, TFTP, SNMPv1/v2c/3, Secure Copy (SCP), Flexible alarm and event system, Port monitoring
3g modem : General
LED Indicators Yes : Booting up, Power, Config, SIM, 3G/LTE cellular signal strength LED, LINK LED
MTBF Telcordia: 825.000 hours
Operating mode LTE Cellular Router/Gateway
3g modem : Standards and protocols
Protocols IPv4 and IPv6, DHCP, DynDNS, NAT, NAT Traversal, NTP Client, VLAN support, Packet filtering, Port forwarding, BGPv4, OSPF, RIP (v1 and v2), IPSec/L2TP/GRE, DMVPN, SNMP v1/v2/v3, TLS 1.2, 802.1x authentication, IEC104, QoS, VRRP, VRF
3g modem : Features and capabilities
Send and receive SMS Yes
3g modem : Security
Security and Encryption Security: Stateful inspection firewall, RADIUS, TACACS+; Encryption: VPN encryption
Authentication 802.1x authentication
3g modem : Power Requirements
Power Connector Push-in spring connectors
Power Consumption (Output Adapter) 7 W
Input Voltage 12 to 48 VDC (Wide Range 9.6 to 60 VDC)
POE Support No
Input Current 580 mA at 12 VDC, 170 mA at 48 VDC
Reverse Polarity Protection Supported
3g modem : Buttons
Power button No
Reset Yes
3g modem : Physical Characteristics
Installation DIN-rail mounting
Dimensions 50 x 170 x 100 mm (2.0 x 2.8 x 3.9 inches)
Housing Full metal
Weight 750 g
Operating Temperature -40 to +70°C (-40 to +158°F)
Storage Humidity 5-95% relative humidity
Storage Temperature -50 to +85°C (-58 to +185°F)
Type of Use Industrial environment
Standards and Certifications Ingress protection: IP40; Telcordia; EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-3, Emission residential environments, EN/IEC 61000-6-4, Emission industrial environments, EN 50121-4, Railway signalling and telecommunications apparatus, IEC 61850-3, Communication networks and systems for power utility automation – Part 3: General requirements; Safety: EN 62368-1, Safety Communication Technology, UL 62368-1 (pending)
