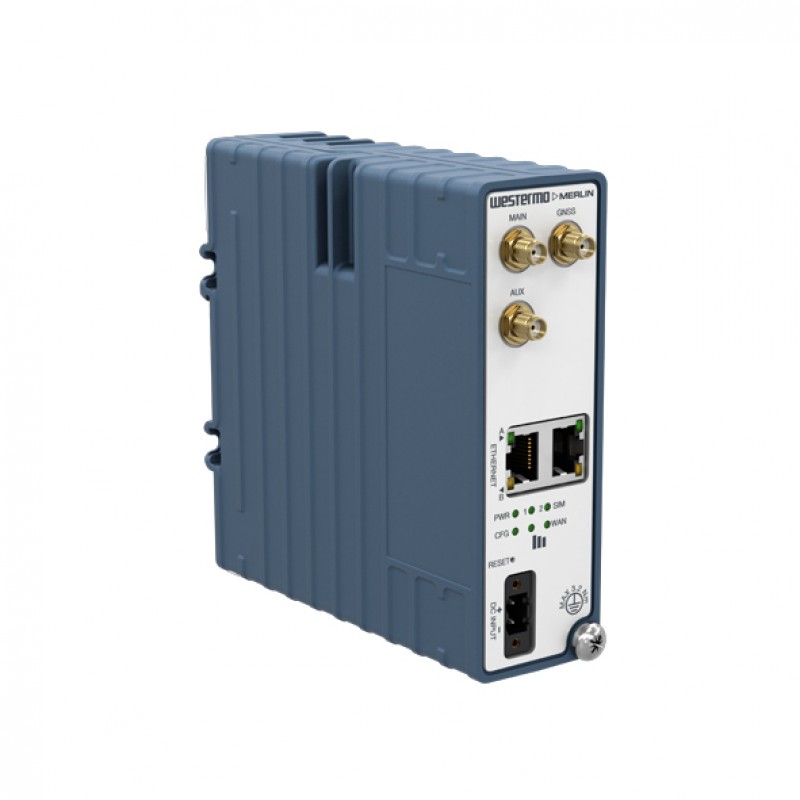

Westermo Merlin-3103-T2G-QFR-G-DCi0936 Industrial Cellular Router
- Supports Global Frequency Bands, LTE Cat 4
- 2 x 10/100/1000 Mbit/s Ethernet TX Ports (RJ45 connector)
- 2 x Mini-SIM (2FF) card slots to rear, covered by plate
- IP30-rated metal body material design
- DIN-rail mount installation
- 9 to 36 VDC input power (Push-in spring connectors)
- -20 to +70°C operating temperature range
.png)
Description
The Merlin series of versatile cellular routers provide high
speed data network connectivity for demanding industrial and smart grid
applications. Coupled with the Zero Touch deployment software Activator, it
provides cost-effective, reliable, and consistent onboarding of routers in
large-scale projects. This compact, rugged unit is suited to tight spaces. Its
high MTBF and wide temperature range support maximum service life.
To achieve best-in-class cybersecurity, the Merlin series is
equipped with a TPM (Trusted Platform Module) chip that keeps cryptographic
keys secure. Secure Boot ensures that the unit boots using only software that
is signed and trusted by manufacturer. A set of cybersecurity tools is
available as standard including VPN and stateful Firewall support for data
security and user authentication.
You can also find the Merlin-4609-F2G-T4-S2-DI6-DO2-LV-PFJ, Merlin-4106-T4-S1-DI1-PFJ, Merlin-4407-T4-S2-LV-PFP, and GW2304-PE4-2DI2O-QFR models in the
Explore our extensive range of industrial automation
products such as Westermo Merlin-3103-T2G-QFR-G-DCi0936 Industrial Cellular Router in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh),
and Oman). Submit your inquiry to enjoy
the on-time delivery service. Our sales experts will contact you to fulfill all
your industrial automation needs.
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 x Mini-SIM (2FF) card slots to rear, covered by plate |
| Ethernet Ports | : 2 x 10/100/1000 Mbit/s Ethernet TX Ports (RJ45 connector) |
| USB | |
| Digital Input and Output | |
| Serial port | |
| Alert Output | |
| Band Options | 3G Bands: B1, B2, B4, B5, B6, B8, B19; LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41 |
| Cellular Standards | LTE, 3G |
| Cellular Antenna Connectors | 4G - up to 3 x SMA compatible connectors |
| WLAN Standards | |
| WLAN Antenna Connector | |
| GPS Antenna Connector | GPS, GLONASS, BeiDou, Galileo |
| Radio specifications | |
| Radio Connection type | - |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | - |
| WiFi Radio Frequency | - |
| Software Specifications | |
| Routing Redundancy | VRRP |
| VPN | IPSec/L2TP/GRE/DMVPN |
| Firewall | NAT, Packet filtering, Port forwarding |
| Time Management | |
| Management | Web interface (HTTPS), SMS management support, CLI via console, SSHv2, TFTP, SNMPv1/v2c/3, Secure Copy (SCP), Flexible alarm and event system, Port monitoring |
| General | |
| LED Indicators | : Booting up, Power, CFG, SIM, Cellular signal strength LED, LINK LED, SPEED LED |
| MTBF | Telcordia: 1.524.000 Hours |
| Operating mode | LTE Cellular Router/Gateway, Serial to Ethernet Converter |
| Standards and protocols | |
| Protocols | IPv4 and IPv6, DHCP, DynDNS, NAT, NAT Traversal, NTP Client, VLAN support, Packet filtering, Port forwarding, BFD, BGPv4, OSPF, RIP (v1 and v2), IPSec/L2TP/GRE, DMVPN, SNMP v1/v2/v3, TLS 1.2, 802.1x authentication, IEC104, QoS, VRRP, VRF, Control of I/O from SCADA master, IEC 60870-5-104, IEC 60870-5-101, IEC 61850, Modbus TCP, DNP3, Serial to Ethernet, MQTT |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | Security: Stateful inspection firewall, RADIUS, TACACS+; Encryption: IPSec encryption |
| Authentication | 802.1x authentication |
| Power Requirements | |
| Power Connector | Push-in spring connectors |
| Power Consumption (Output Adapter) | 5 W typical |
| Input Voltage | 9 to 36 VDC |
| POE Support | |
| Input Current | 398mA at 12 VDC, 203mA at 24 VDC |
| Reverse Polarity Protection | Supported |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | DIN-rail mounting |
| Dimensions | 40 x 135 x 124 mm |
| Housing | Full metal |
| Weight | 490g |
| Operating Temperature | -20 to +70°C (-40 to +158°F) |
| Storage Humidity | 5-95% relative humidity |
| Storage Temperature | -30 to +70°C |
| Type of Use | Industrial environment |
| Standards and Certifications | Ingress protection: IP30; Telcordia; EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments; Safety: EN 62368-1, Safety Communication Technology |
