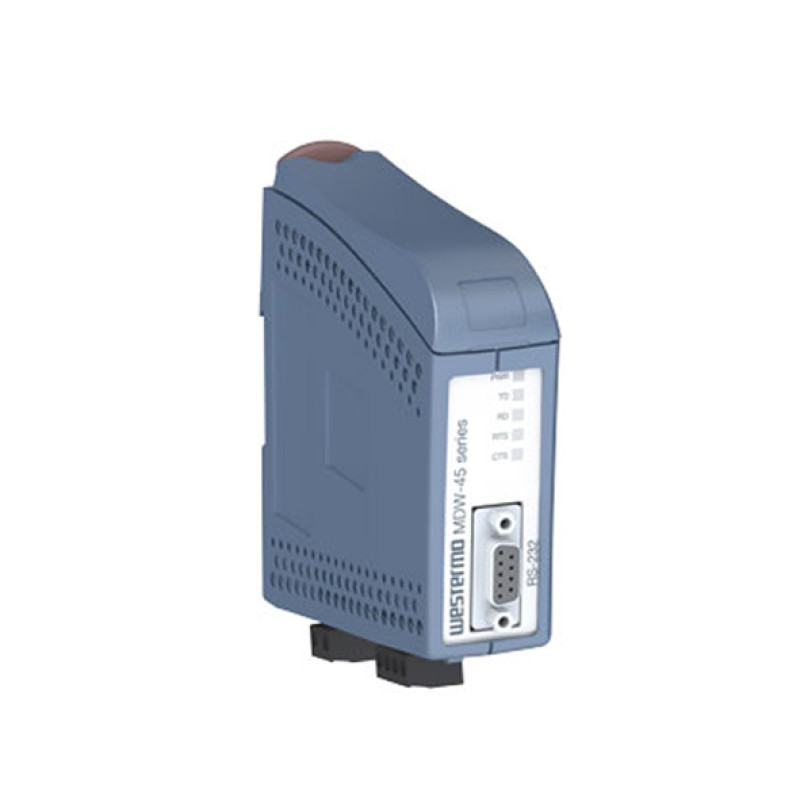

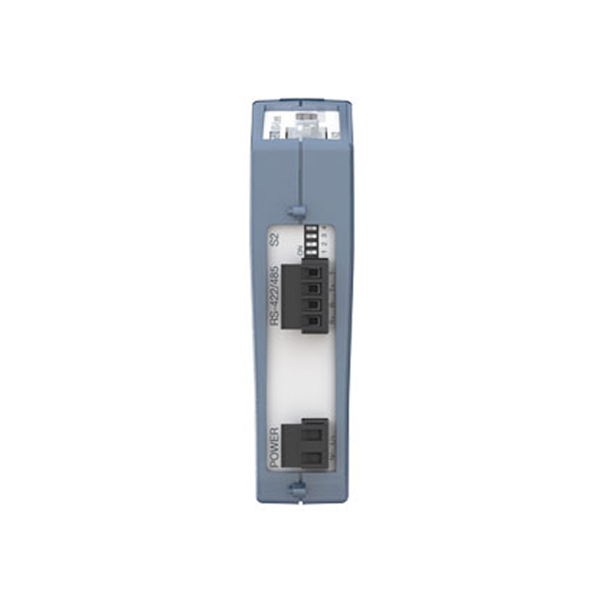

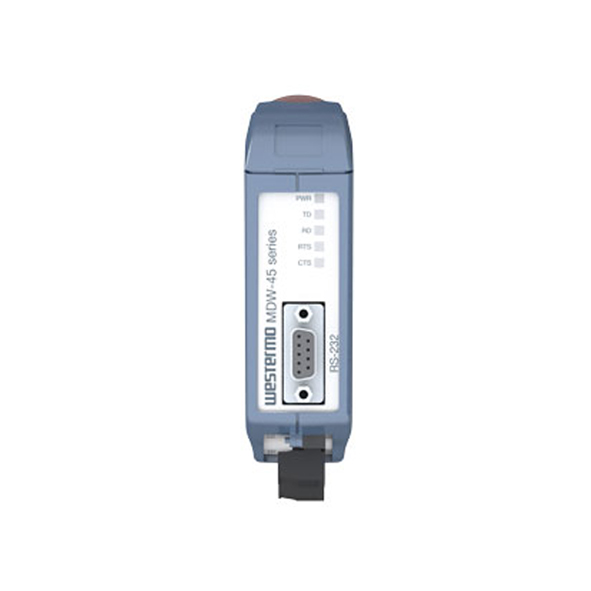

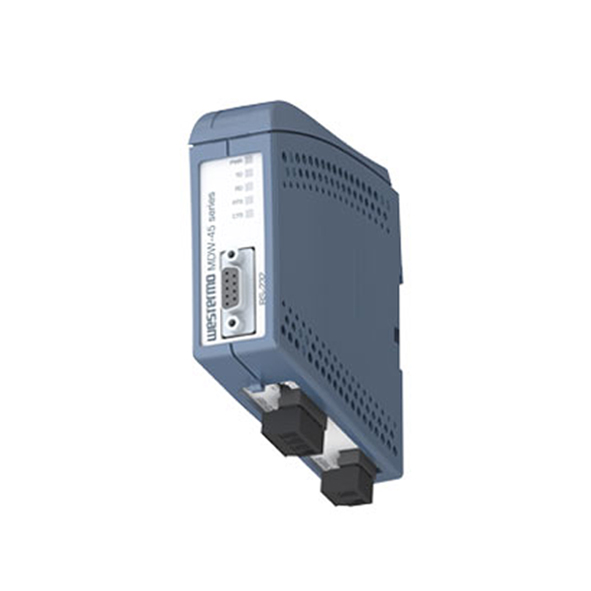

Westermo MDW-45 LV Industrial RS-232 to RS-422/485 Converter | Easy World Automation

Description

The MDW-45 is a simple serial converter allowing RS-232 and RS-422/RS-485 systems to be connected. DIP switches are used for all configuration options, which makes the unit simple to install. The MDW-45 is designed for use in heavy-duty industrial applications. The wide power range, galvanic isolation, transient protection, and the design of the termination and fail-safe guarantees communication in the worst environments. Only industrial-grade components are used, which gives the MDW-45 an MTBF of 1,000,000 hours and ensures a long service life. A wide operating temperature range of –40 to +70°C (–40 to +158°F) is achieved using no moving parts.

The MDW-45 has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications. The configurable design of the converter makes the MDW-45 suitable for a variety of applications with various speeds and data bit options. Normally RS-485 data direction is controlled by the RS-232 handshaking lines however the MDW-45 also features an automatic turning time function allowing the unit to operate in any application.

You can also find the MDW-45 HV, EDW-100, and EDW-120 models in the Serial Converters and Repeaters.

Experience the convenient way to purchase the Westermo MDW-45 LV Industrial RS-232 to RS-422/485 Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.
