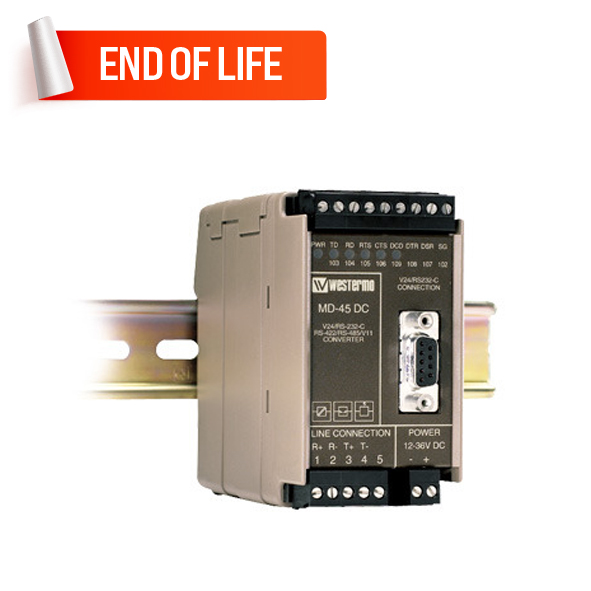

Name: Westermo MD-45 LV Industrial RS-232 to RS-422/485 Converter
Brand: WESTERMO
Availability: OutOfStock

Westermo MD-45 LV Industrial RS-232 to RS-422/485 Converter

1 x RS-232 Port (9-polig D-sub, 1200 – 115200 bit/s)
1 x RS-422/485 Port (5-position screw terminal, 1200 – 115200 bit/s)
DIN rail mount installation design
12–30 VAC / 12–48 VDC power input with Total galvanic isolation
+5 to +55°C operating temperature range

Brand: WESTERMO
Model: 3157-0001

0 reviews • Write a review

Datasheet User Manual

Operating Temperature (5 to 55°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP20)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Media Converters , Serial Converters & Repeaters , Serial Converters , Converters , Repeaters , Industrial Data Communications , Industrial Media Converters , Westermo MD-45

MD-45 is used as an interface converter between RS-232 and RS-422/485 or when point-to-point communication is needed at data rates up to 115.2 kbit/s. The device can communicate on 2-wire or 4-wire cable up to 1200 metres (4000 ft).

In multidrop applications, the MD-45 supports up to 32 connected devices on the bus. With 2-wire systems, the communication direction is controlled by the data flow, i.e,. The converter detects the data and switches the communication direction depending on which side the data has been sent. This makes it possible to connect equipment that cannot generate handshaking signals.

The MD-45 is intended for mounting on a 35 mm DIN-rail, where the modem is attached and locked in a single action. Greater transmission ranges or additional connected devices on the bus are possible with one or more repeaters.

End of Life Product - Replacement Available

Please note that the MD-45 LV has been phased out and replaced by the MDW-45 LV.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the Westermo MD-45 LV Industrial RS-232 to RS-422/485 Converter through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

serial-to-ethernet : Interface
10/100Mb RJ45 (Megabit) Ports	No
100BaseFX Ports	No
Digital Input Channels	No
Alarm Contact Channels	No
Magnetic Isolation Protection	No
Protocols	No
serial-to-ethernet : Serial Interface
Number of Ports	2 Ports
Serial Standards	RS-232, RS-422/485
Connector	RS-485/422: 5-pos screw block; RS-232: 9-pos D-sub, DCE
Console Port	No
serial-to-ethernet : Serial Communication Parameters
Baudrate	1 200 – 115 200 bit/s
Data Bits	7 or 8
Stop Bits	1 or 2
Parity	-
Flow Control	-
Isolation	Yes : RS-232 / RS-485/422: 1,0 kV RMS
serial-to-ethernet : Serial Signals
RS-232	-
RS-422	-
RS-485-4w	-
RS-485-2w	-
serial-to-ethernet : Communication details
Wireless Standards	-
Maximum data transfer speed	-
Maximum direct range	-
serial-to-ethernet : General
Management	-
Compatible operating systems	-
Fixed TTY Drivers	-
Linux Real TTY Drivers	-
Automatic Reboot Trigger	-
serial-to-ethernet : Power Requirements
Connection	Detachable 2-pos. screw terminal
Input Voltage	12–30 VAC, 12–48 VDC (Wide Range: 9.6 – 57.6 VDC, 10 – 45 VAC)
Input Current	300 mA
serial-to-ethernet : Security
Security	No
Encryption	No
Authentication	No
serial-to-ethernet : Features and capabilities
Display	No
serial-to-ethernet : Physical Characteristics
Dimensions	55 x 100 x 128 mm (LxHxP)
Installation	DIN-rail mounting
Standards and Certifications	IP 20 (IEC 529); EMC: EN 61000-6-3/CISPR22(EN 55022): Class B, EN 61000-6-2/EN 61000-4-2, EN 61000-6-2/EN 61000-4-3, EN 61000-6-2/EN 61000-4-4, EN 61000-6-2/EN 61000-4-5, EN 61000-6-2/EN 61000-4-6, EN 61000-6-2/EN 61000-4-11, EN 61000-6-2/EN 61000-4-16; Safety: EN 60950
Housing	-
Operating Temperature	5 to 55ºC
Storage Temperature	–25 to 70ºC
Operation Humidity	5 to 95% (non-condensing)
Weight	0.25 kg
