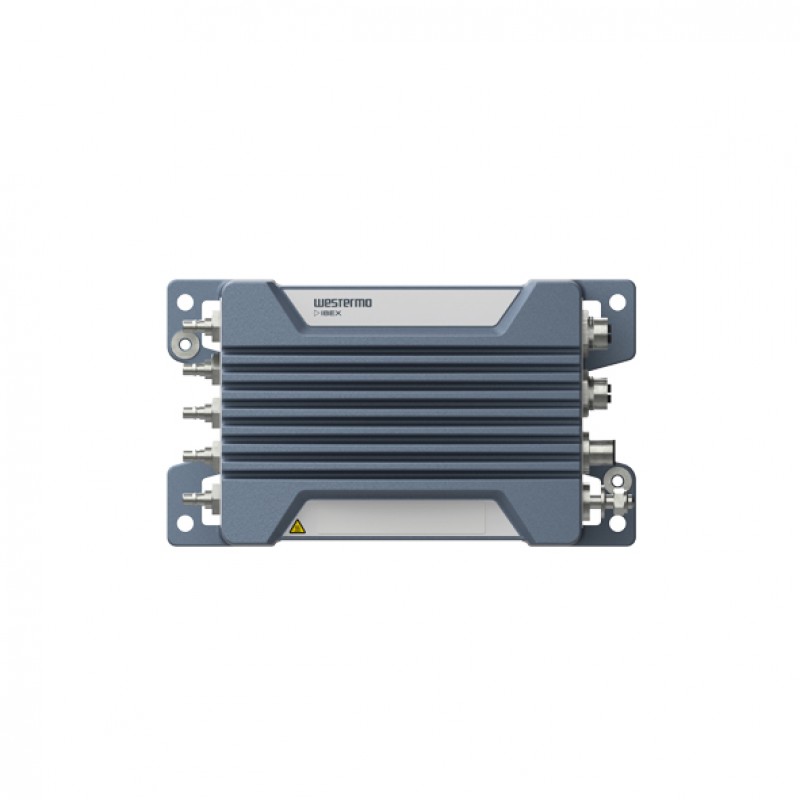

Westermo Ibex-3510-T2G2.5 EU Industrial Wi-Fi 6 Access Point
- Supports Europe Frequency Bands
- Triple Wi-Fi 6 / 802.11ax WLAN interfaces
- 2 x 10/100/1000/2.5G Base-T Ethernet ports (M12 connector)
- IEEE 802.11ax support for maximum efficiency
- 24 to 110 VDC or IEEE 802.3 PoE Class 4 (dual power inputs)
- IP66-rated Metal body material
- Screw mount installation design
- -40 to +70°C operating temperature range
.png)
Description
The Ibex-3510 is a concurrent triple-band 802.11ax Wi-Fi 6E
access point and client product for onboard and stationary applications. It
provides reliable efficient high-speed data transfers, airtime fairness, band
steering, client steering, and multi-AP steering. This enables optimized use for
passenger hotspot applications, remote maintenance access, data offloading or
it can be part of a TCMS network.
The Ibex-3510 is designed to withstand the tough environment
on-board trains, exposed to constant vibration, extreme temperatures, humidity, and a demanding electromagnetic environment. A GORE-TEX® membrane prevents
internal condensation. High-level isolation between all interfaces enables
direct connectivity to vehicle auxiliary power and protects against overvoltage
and spikes/surges. IP66 protection prevents water and dust ingress even at
the quick-connect QMA connectors.
An overall optimized design results in a compact form factor
in combination with very high MTBF for easy integration in space-restricted
installations and low lifecycle cost. Thorough type testing at independent labs
certifies compliance with a wide range of standards, including EN 50155.
Powered by the IbexOS operating system, the Ibex-3510 has the latest cybersecurity features and updates.
You can also find the Ibex-3510-T2G2.5 NA, Ibex-3510-T2G2.5-PoEEU, and Ibex-3510-T2G2.5-PoE NA models in the WLAN.
Enjoy the ease of online inquiries for the Westermo Ibex-3510-T2G2.5 EU Industrial Wi-Fi 6 Access Point. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Interfaces | |
|---|---|
| 10/100/1000BaseT(X) Ports | : 2 x 10/100/1000/2.5G Base-T Ports, 2 x M12 X-coded connectors |
| Modulation Type | - |
| Frequency Band | 2.400 to 2.4835 GHz (2x2 MU-MIMO), 5.150 to 5.350 GHz, 5.470 to 5.725 GHz, 5.725 to 5.875 GHz (2x2 MU-MIMO), 5.925 to 7.125 GHz (4x4 MU-MIMO) |
| PoE Ports | |
| 100BaseFX Ports | |
| Wireless Security | WPA2-Personal (CCMP), WPA2-Enterprise, WPA3-Personal (SAE/OWE), WPA3-Enterprise (Suite-B), 802.11w, 802.1X, SecureBoot (TPM), Security Log (persistent) |
| WLAN Antenna Connector | 2 x QMA compatible antenna connector for Wi-Fi 6 2.4 Ghz and 5 GHz (combiner), 4 x QMA compatible antenna connector for Wi-Fi 6E for 6 GHz |
| Security | VPN: SSL Server/Client, IPsec, OpenVPN Client, Wireguard, GRE/GRETAP, VXLAN |
| WLAN Operation Mode | Access Point, Client, Bridge |
| WLAN Standards | IEEE 802.11g, 802.11a, 802.11n, 802.11ac, 802.11ax |
| 1000BaseSFP Slots | |
| Transmission Rates | 2.4 GHz: Up to 802.11ax 40 MHz 2SS BW HE11: 573 MBit/s, 5 GHz: Up to 802.11ax 80 MHz 2SS BW HE11: 1201 MBit/s. 6 GHz (Wi-Fi 6E): Up to 802.11ax 160 MHz 4SS BW HE11: 4804 MBit/s |
| 10/100BaseT(X) Ports | |
| Digital Inputs | |
| Console Port | |
| Serial Ports | |
| M12 Connector | |
| Power Requirement | |
| Input Current | - |
| Connector | M12 A-coded male |
| Input Voltage | 24 to 110 VDC or IEEE 802.3 PoE Class 4 |
| Power Consumption | 17 W |
| Reverse Polarity Protection | Supported |
| Physical Characteristics | |
| Humidity | 5-95 % relative humidity |
| Dimensions Packaged | 195 x 80 x 111 mm (7.68 x 3.15 x 4.37 inches) |
| Weight (PACKAGED) | 1.65 kg without antennas |
| Housing | Full metal |
| Installation | Screw mounting |
| Standards and Certifications | Ingress protection: IP66; Climate: EN 50155, class OT4 Railway applications - Electronic equipment used on rolling stock; EMC: EN 50155, Railway applications - Electronic equipment used on rolling stock, EN 50121-3-2, Railway applications – Electromagnetic compatibility, Part 3-2: Rolling stock – Apparatus, ETSI EN 301 489-1, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 1: Common technical requirements, ETSI EN 301 489-17, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment - Part 17: Specific conditions for Broadband Data Transmission Systems; Mechanical (Shock and vibration): EN 61373, category 1, class B; Insulation (Coordination and test): EN 50155, Railway applications - Electronic equipment used on rolling stock; Radio communication: ETSI EN 300 328, Wideband transmission systems; Data transmission equipment operating in the 2.4 GHz ISM band and using wide band modulation techniques, ETSI EN 301 893, 5 GHz RLAN, ETSI EN 300 440, 5.8GHz, Short Range Devices, ETSI EN 303 687, 6 GHz RLAN, IEEE802.11, Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications; Safety: EN/IEC 61010-1, Safety requirements for electrical equipment for measurement, control, and laboratory use, EN 45545-2, Fire protection on railway vehicles; Shock: IEC 60068-2-27, IEC 61373, MIL-STD-810G; Vibration: IEC 60068-2-64, IEC 61373 |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Storage Temperature | -55 to +85°C (-67 to +185°F) |
| General | |
| Management | SNMP v2c/v3 with USM authentication and encryption support, HTTP/HTTPS web interface and WebAPI with user authentication (local or LDAP), CLI (SSH and Telnet), Certificate Management (SCEP), Dual Firmware Primary/Backup |
| LED Indicators | : DC, ON, X1, X2 |
| MTBF | 319,000 hours |
| Time Management | - |
